Rear Wheel Steering Control Module Connector End View - C3

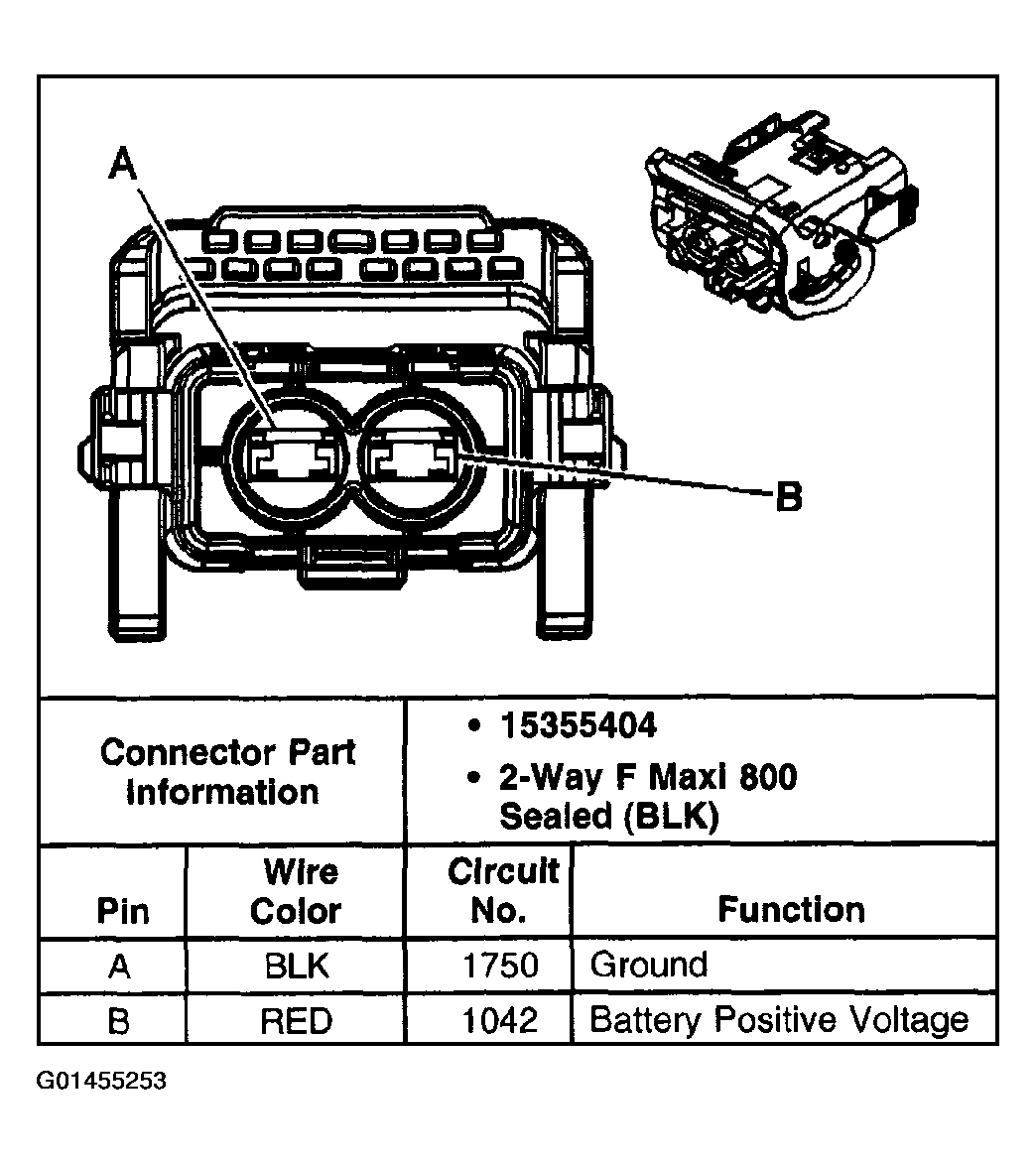

Fig 1: Rear Wheel Steering Control Module Connector End View - C3
G01455253Courtesy of GENERAL MOTORS CORP.
