Engine Controls Schematics

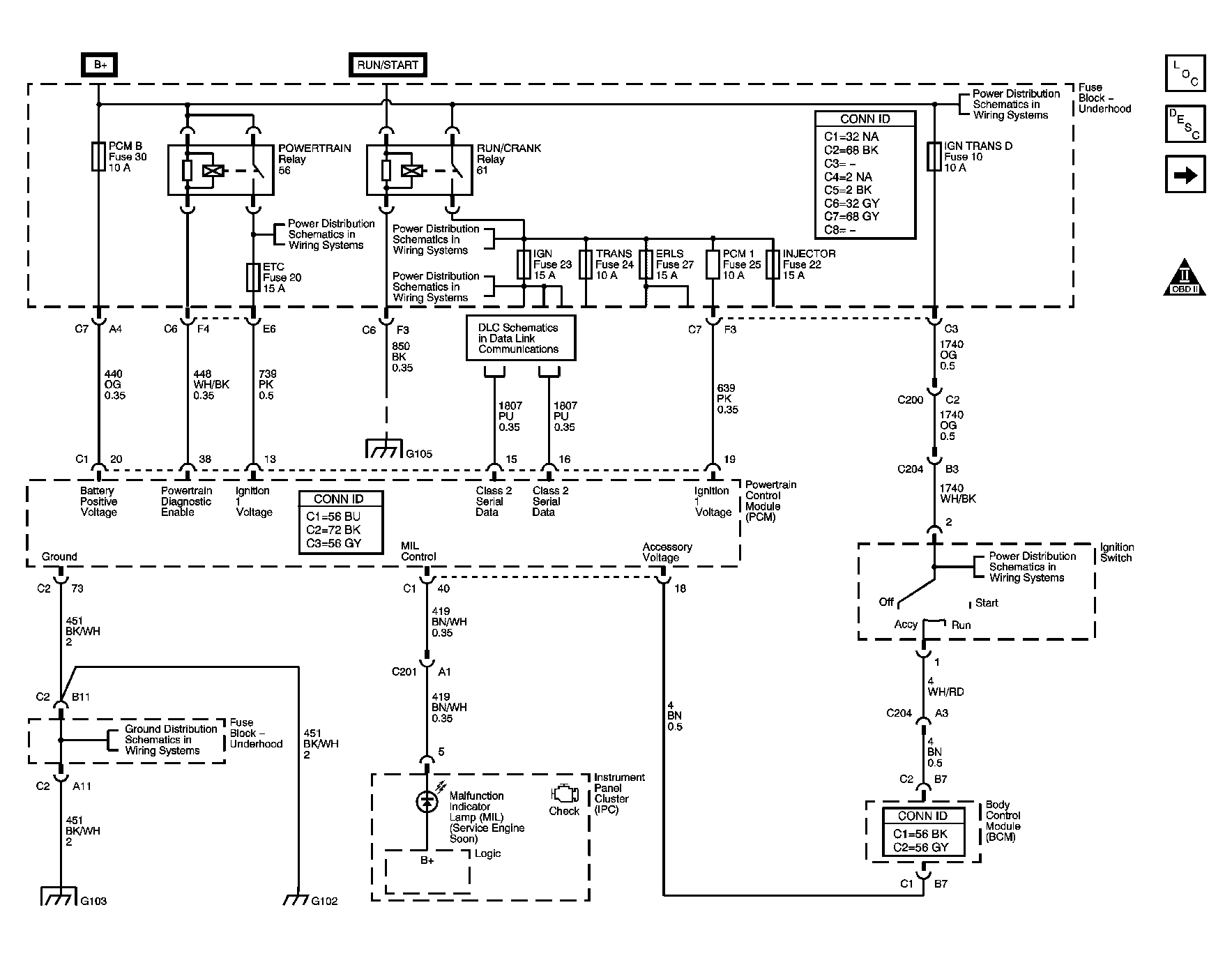

Fig 1: Power, Ground, MIL, and DLC Schematic

Courtesy of GENERAL MOTORS CORP.

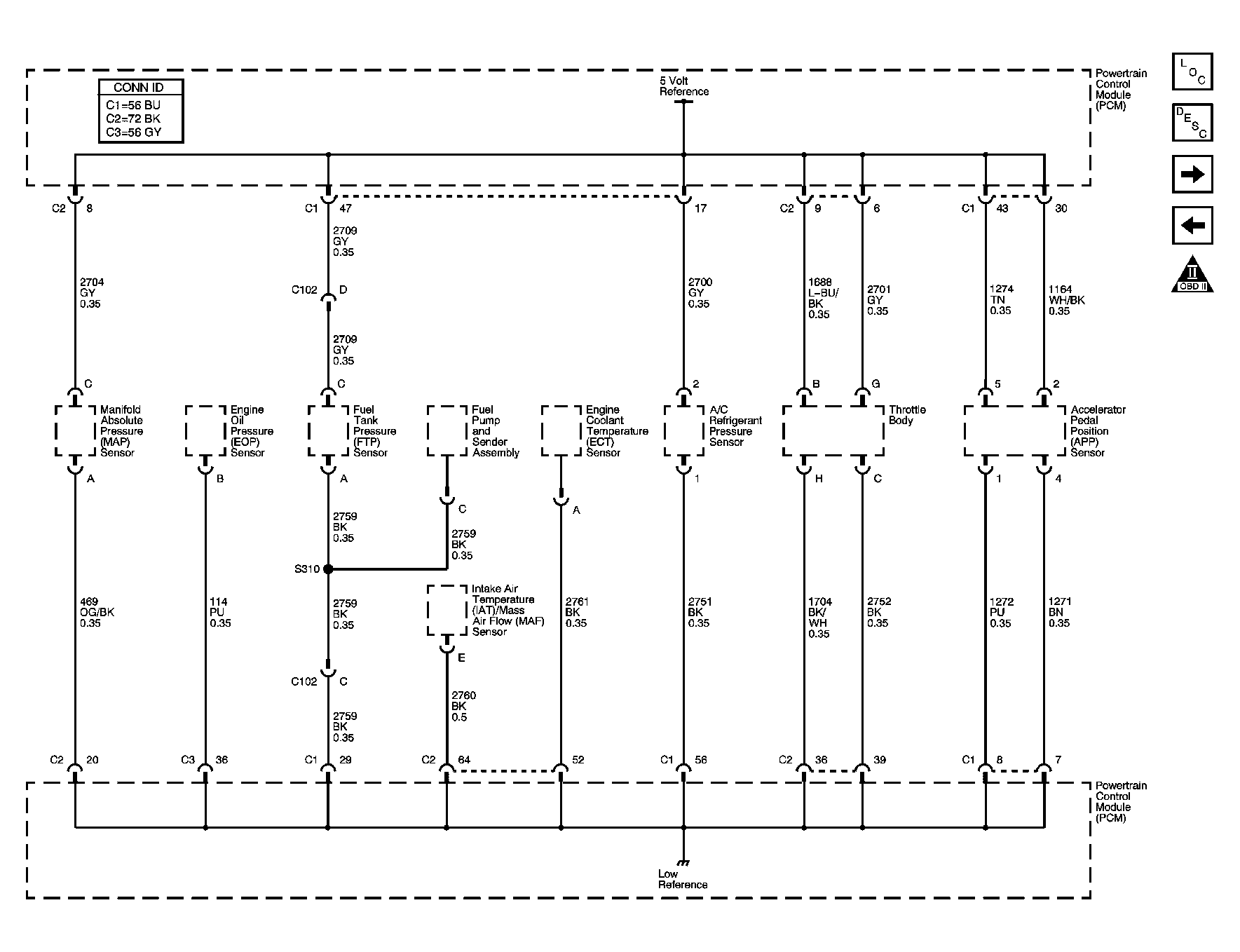

Fig 2: 5-Volt Reference Schematic

Courtesy of GENERAL MOTORS CORP.

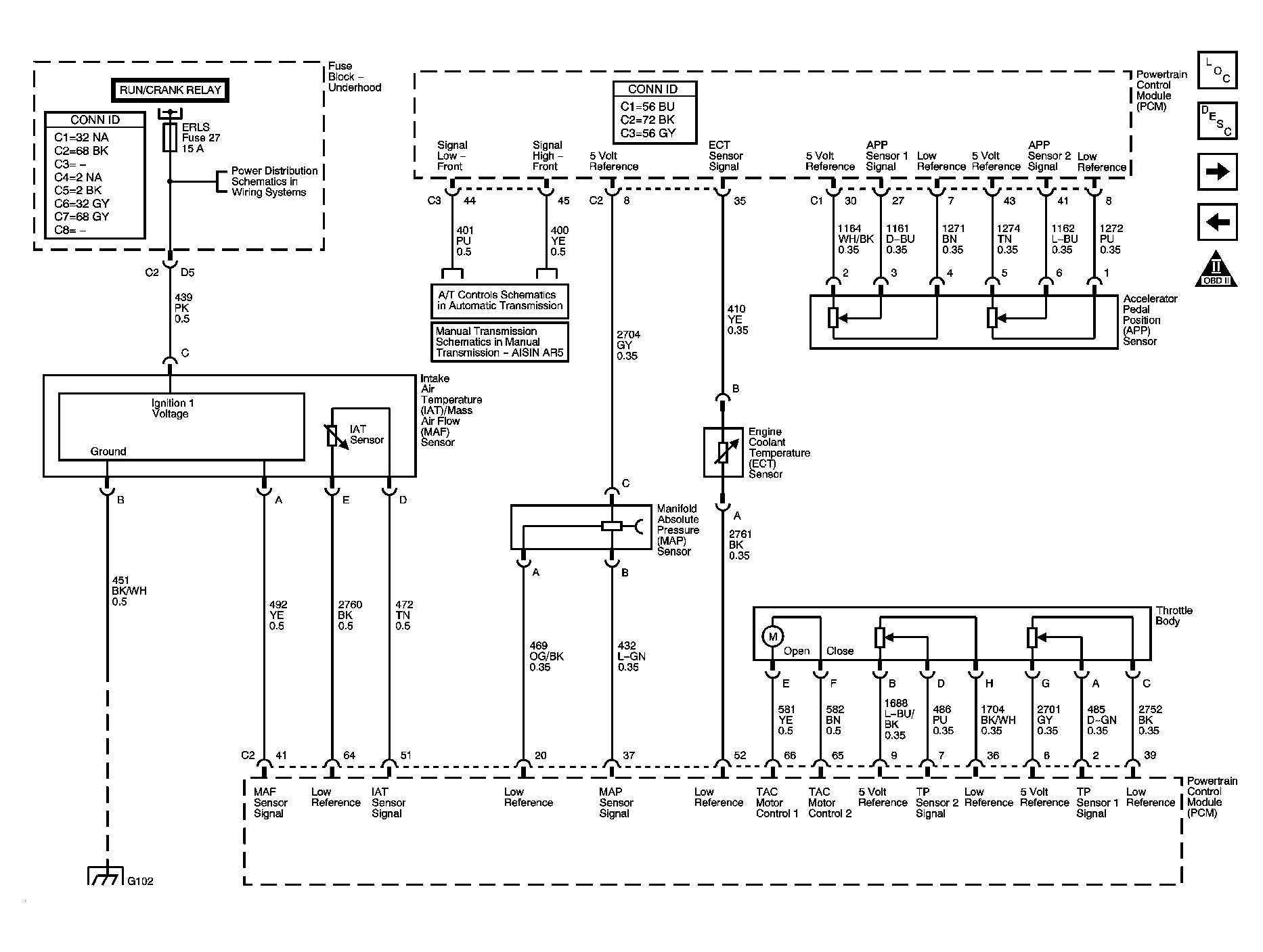

Fig 3: Engine Data Sensors Schematic

Courtesy of GENERAL MOTORS CORP.

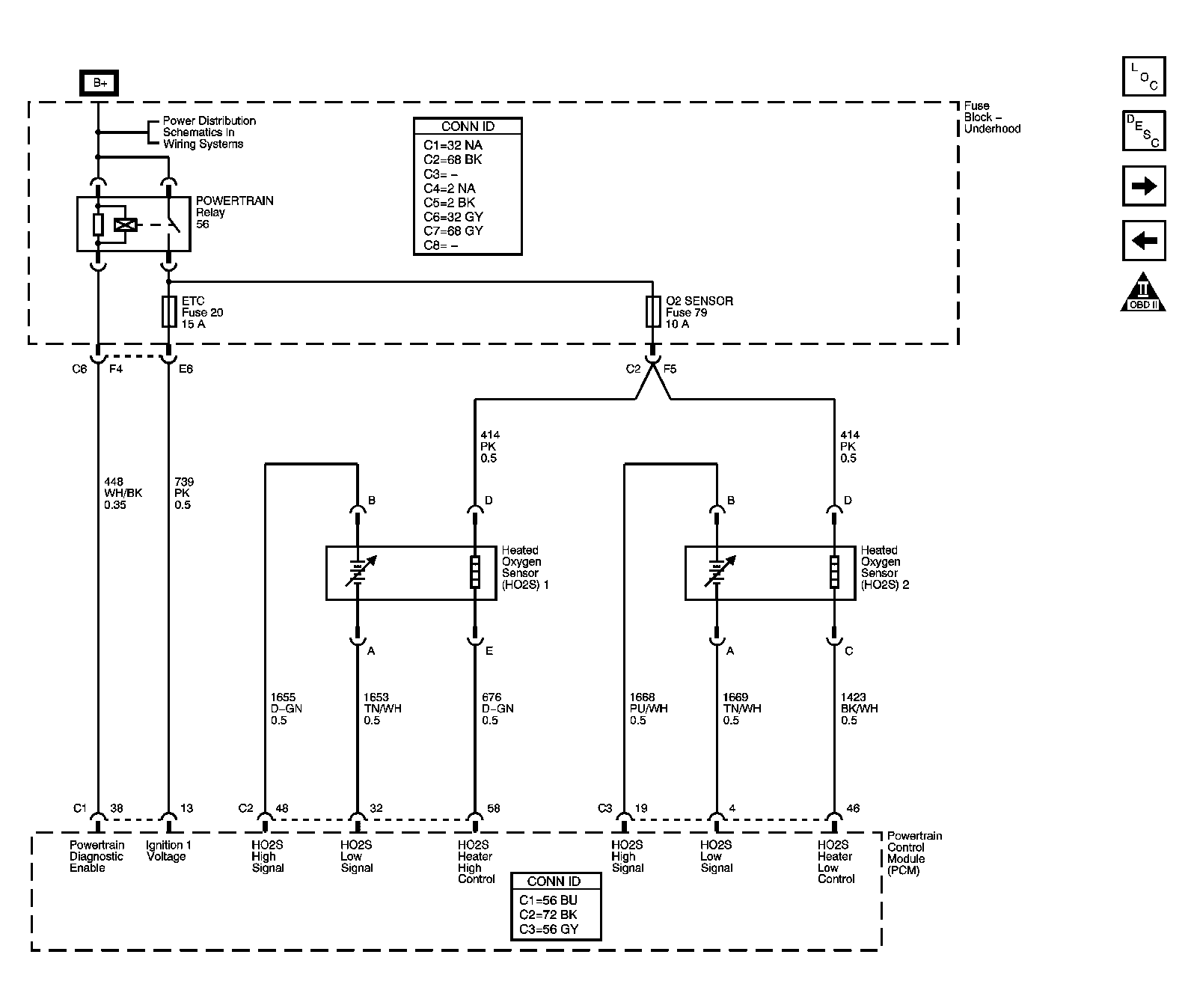

Fig 4: Oxygen Sensors Schematic

Courtesy of GENERAL MOTORS CORP.

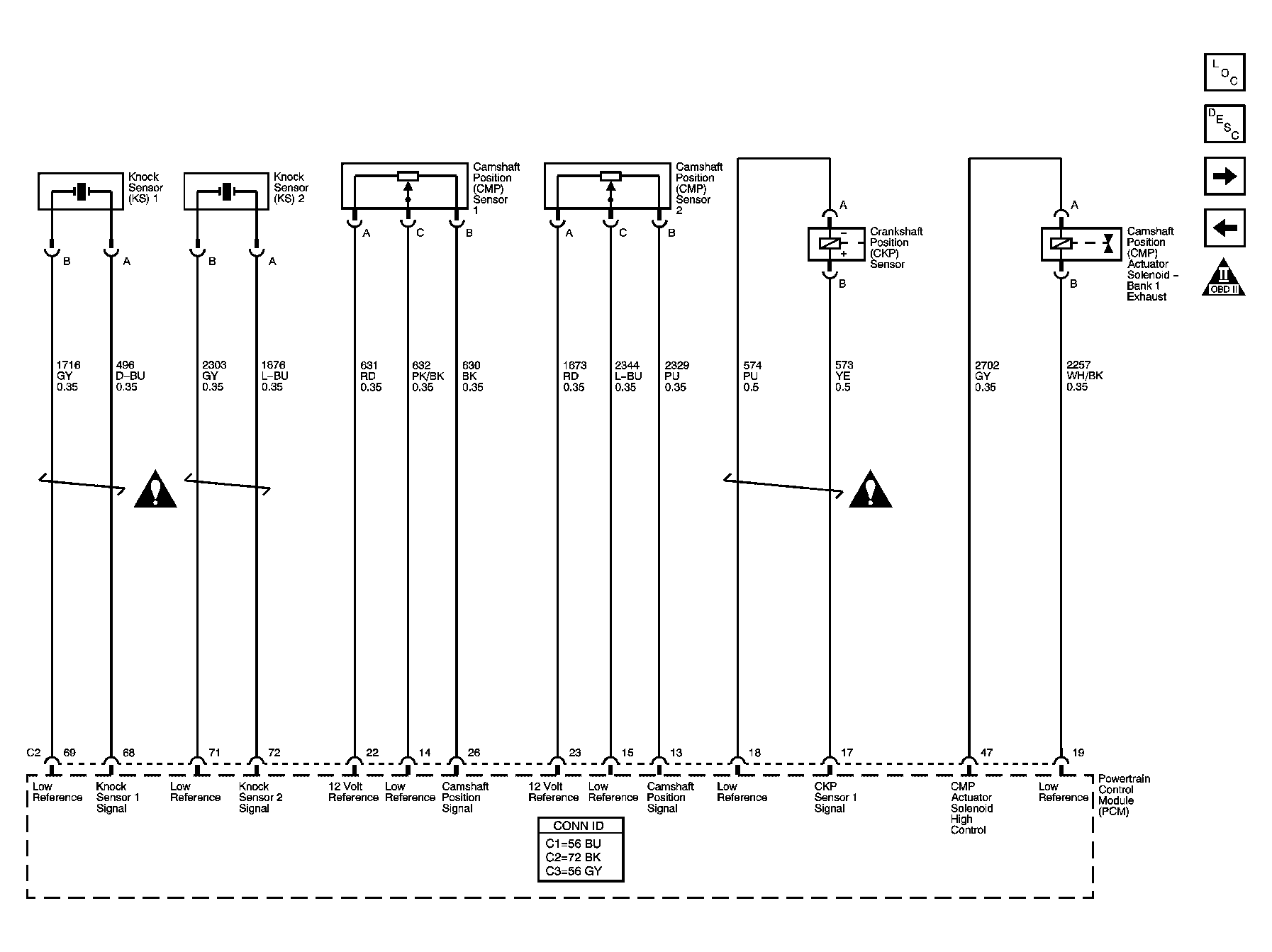

Fig 5: Knock, CMP, CKP Sensors, and CMP Actuator Solenoid Schematic

Courtesy of GENERAL MOTORS CORP.

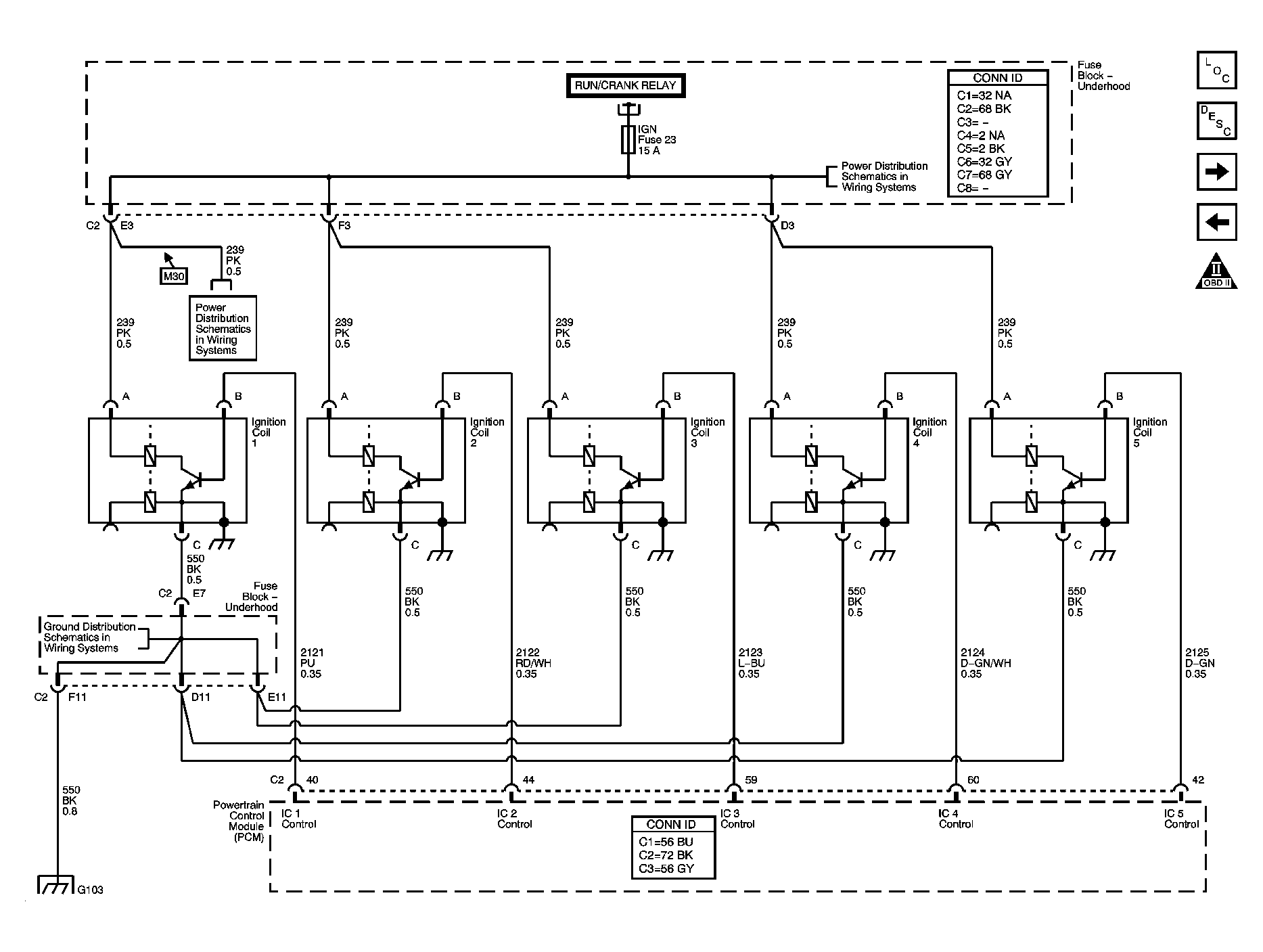

Fig 6: Ignition Controls Schematic

Courtesy of GENERAL MOTORS CORP.

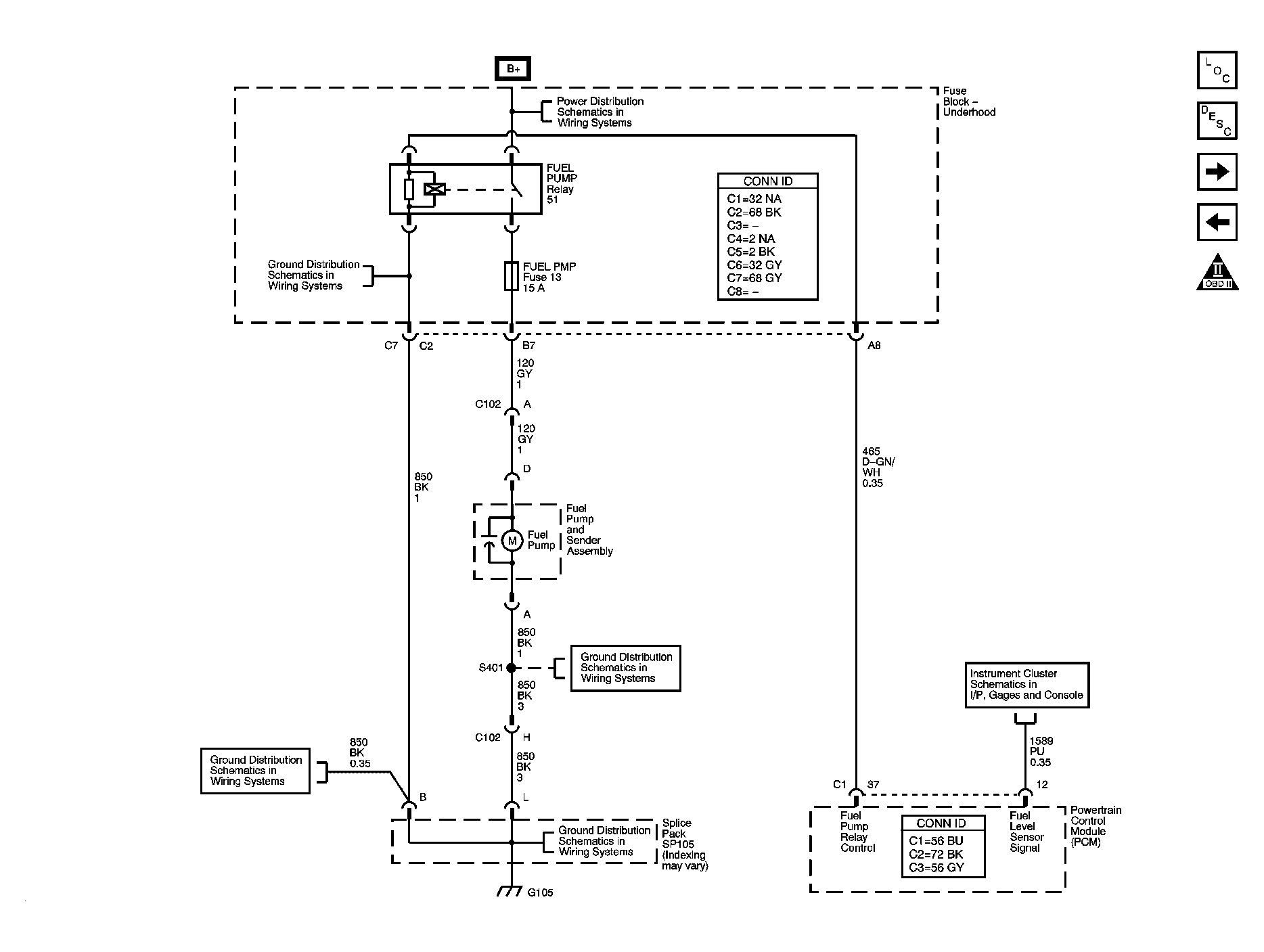

Fig 7: Fuel Controls Schematic

Courtesy of GENERAL MOTORS CORP.

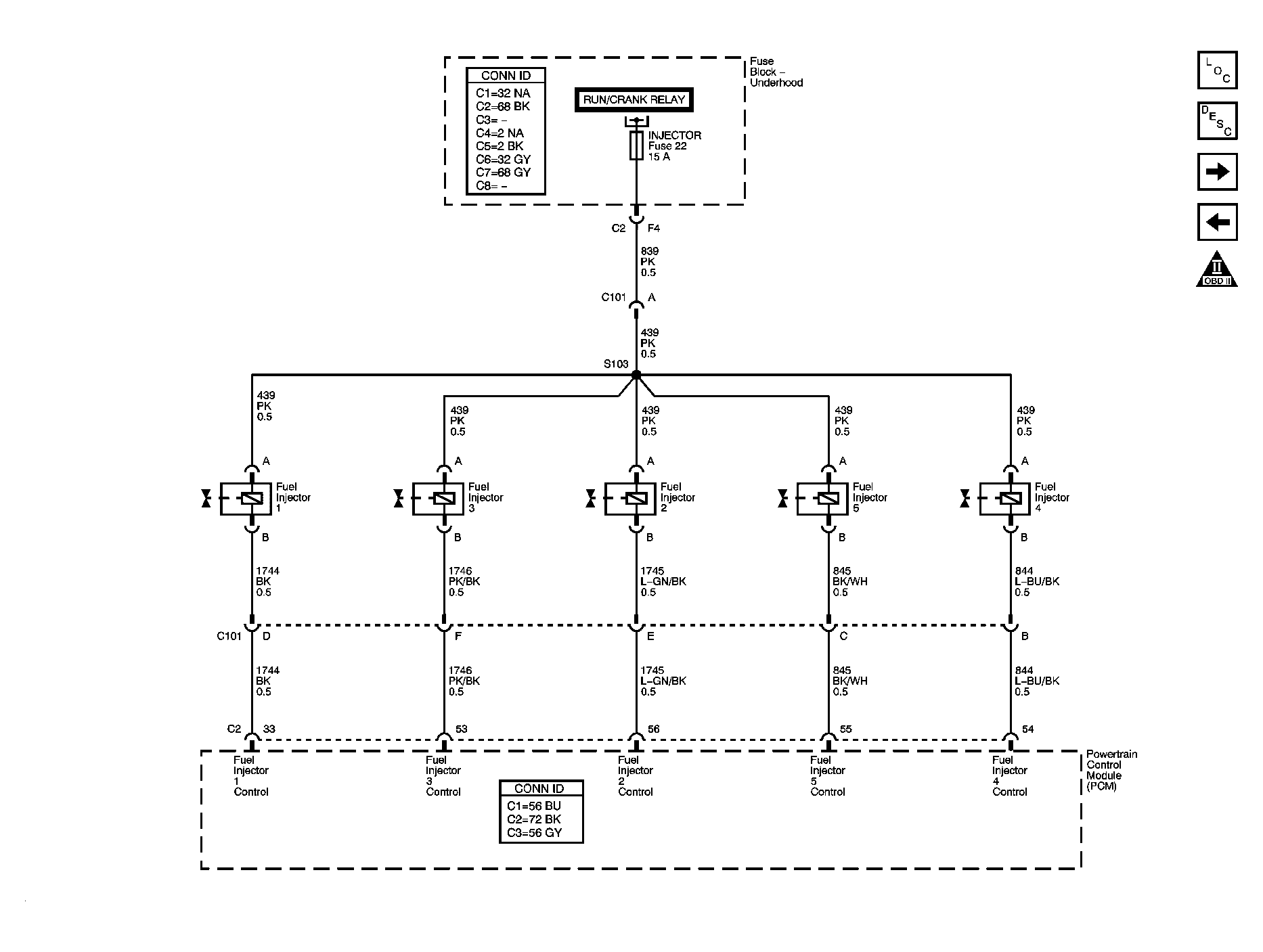

Fig 8: Fuel Injection Controls Schematic

Courtesy of GENERAL MOTORS CORP.

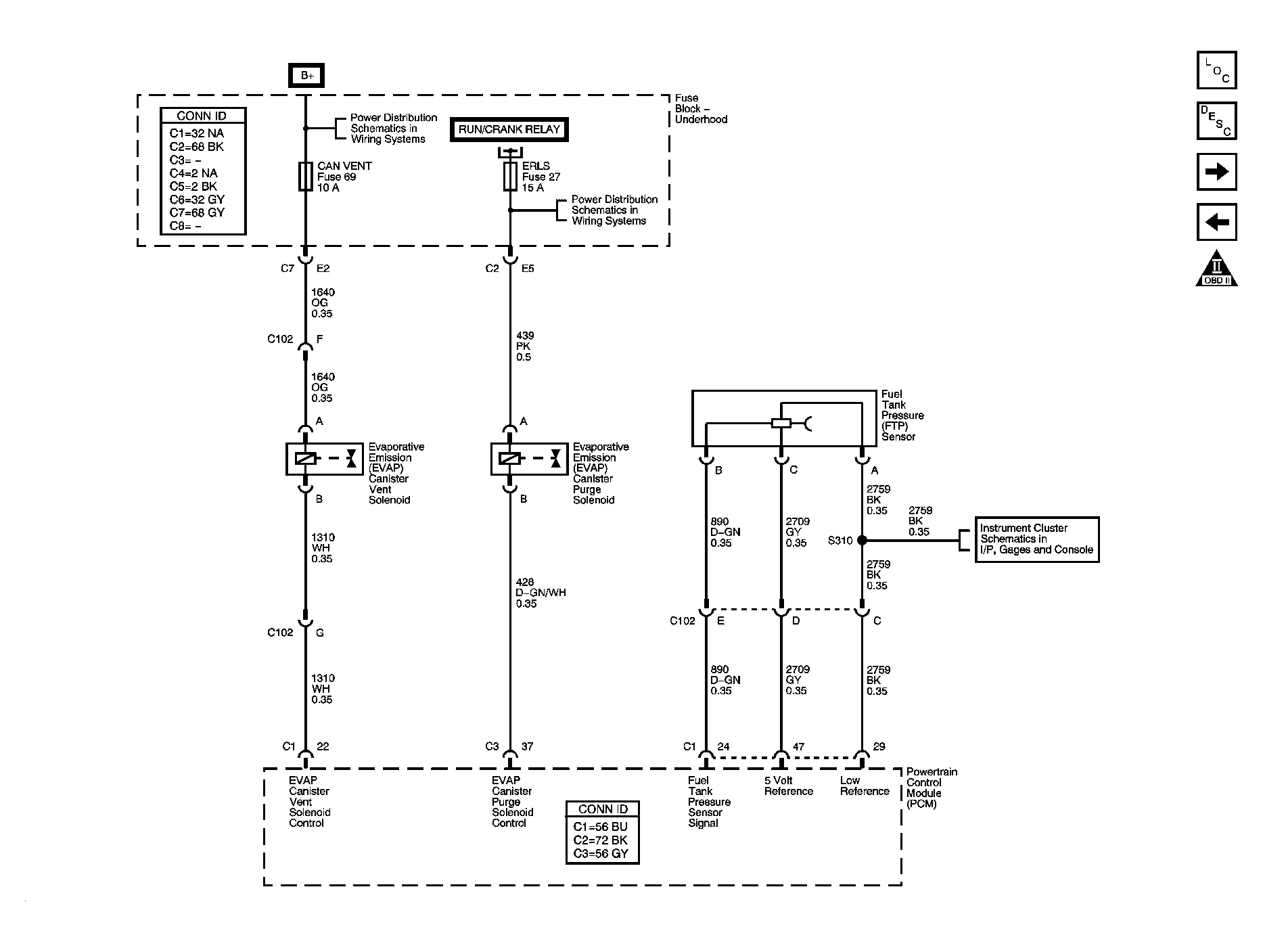

Fig 9: Fuel and EVAP Controls Schematic

Courtesy of GENERAL MOTORS CORP.

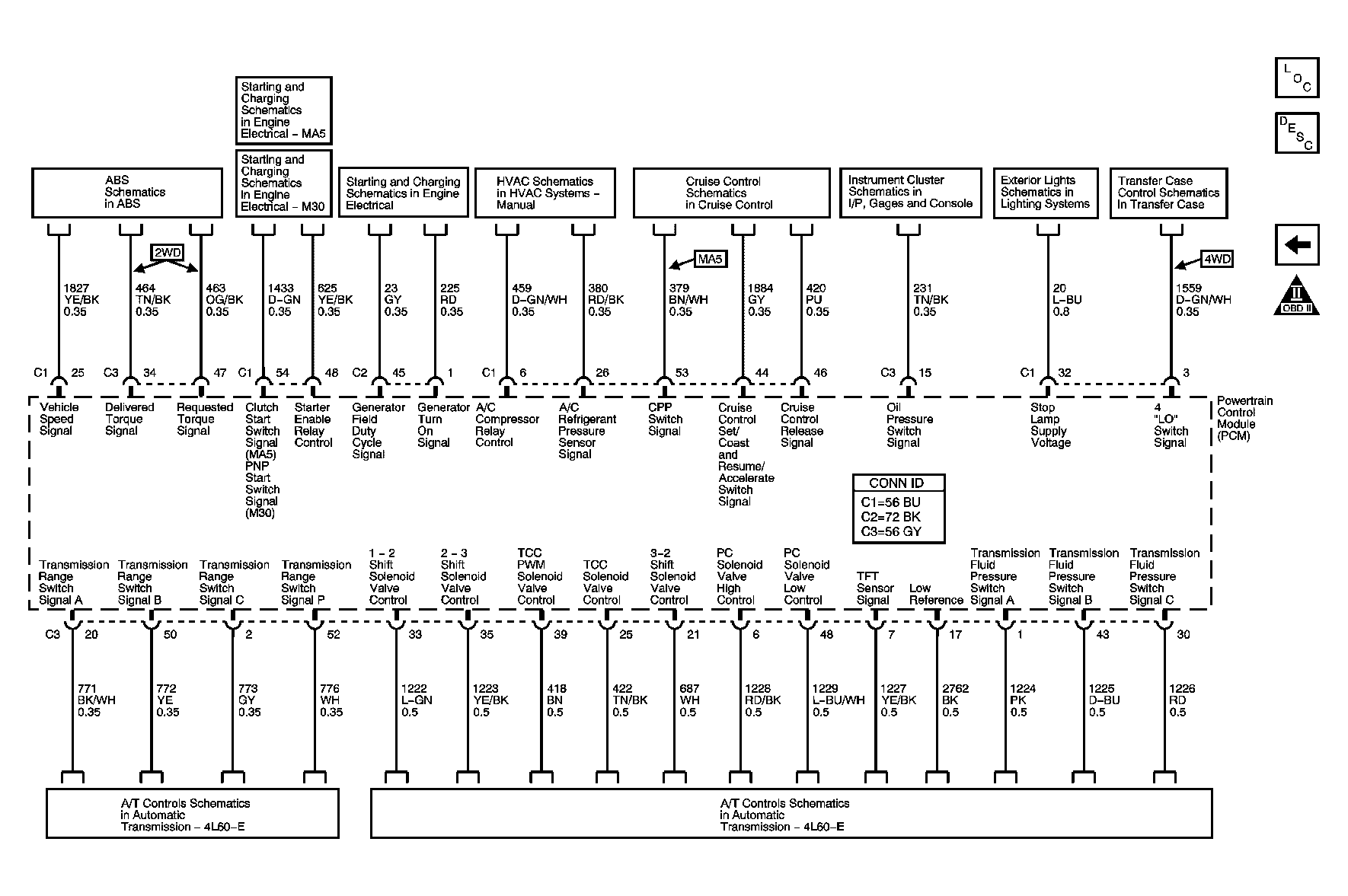

Fig 10: Controlled/Monitored Subsystem and Transmission References Schematic

Courtesy of GENERAL MOTORS CORP.
