Power Window Schematics

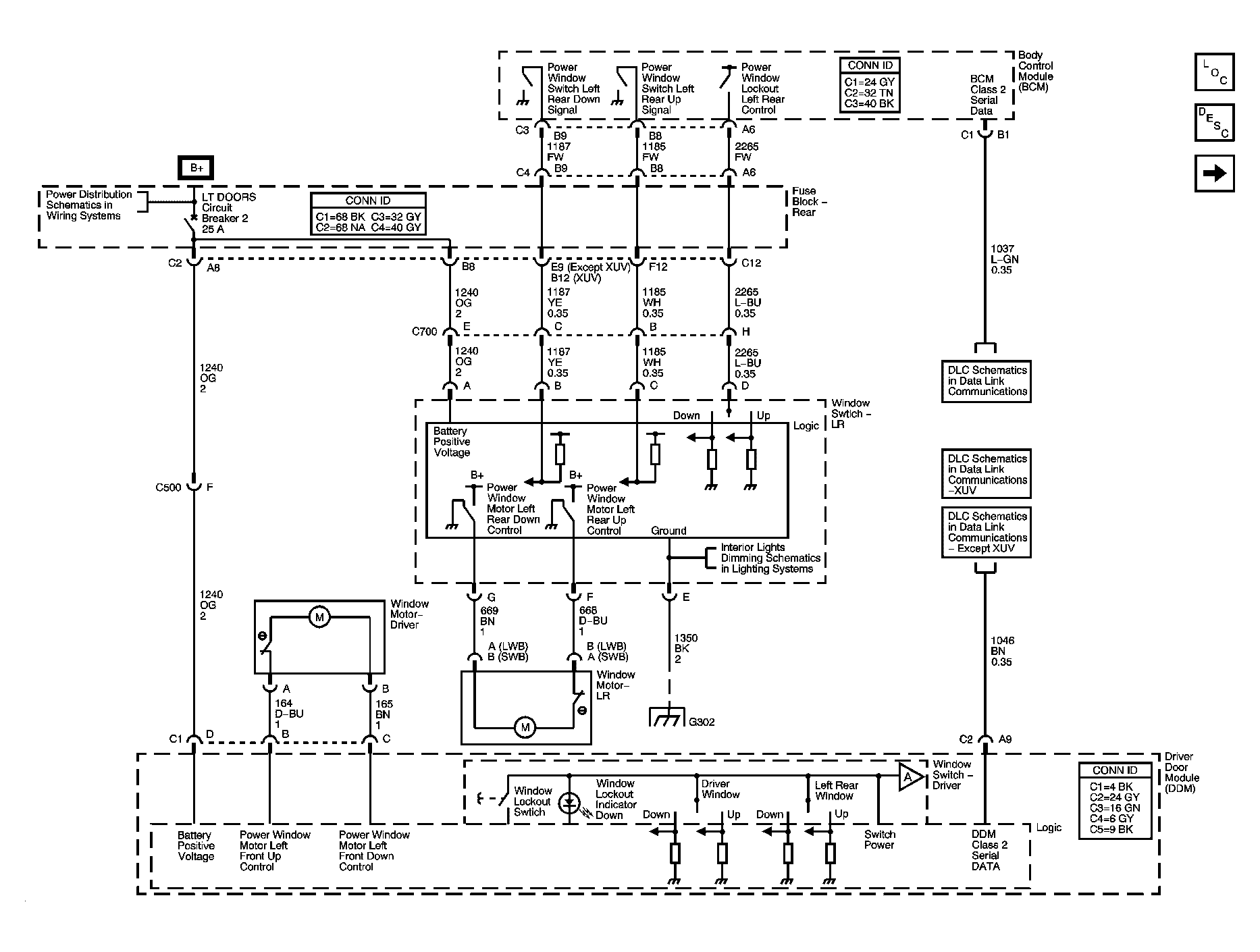

Fig 1: Left Power Window Schematic
GM1312095Courtesy of GENERAL MOTORS CORP.

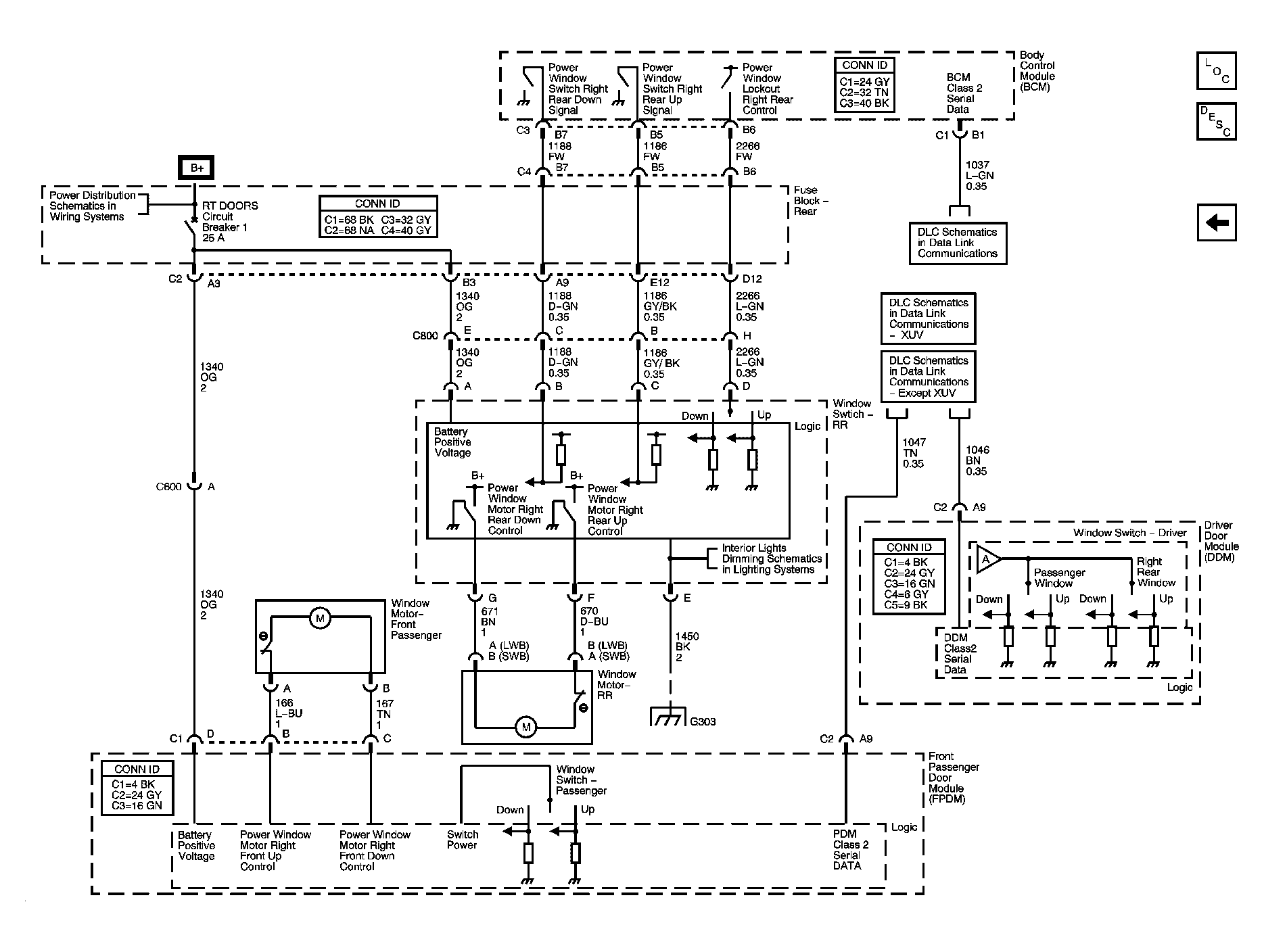

Fig 2: Right Power Window Schematic
GM1312096Courtesy of GENERAL MOTORS CORP.
