Engine Front Cover Installation

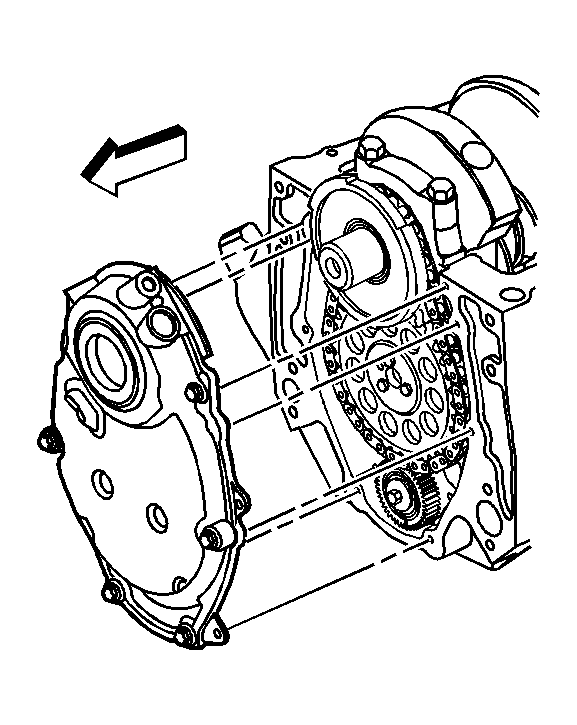

    Fig 1: View Of Engine Front Cover
    GM480539Courtesy of GENERAL MOTORS CORP.
    IMPORTANT: Once the composite engine front cover is removed DO NOT reinstall the engine front cover. Always install a NEW engine front cover.
  1. Install the NEW engine front cover.
    2. NOTE: Refer to Fastener Notice in Cautions and Notices.
  2. Install the engine front cover bolts.

    Tighten:  Tighten the bolts to 12 N.m (106 lb in).

    3. Fig 2: View Of Crankshaft Position Sensor Seal O-Ring
    GM387759Courtesy of GENERAL MOTORS CORP.
    IMPORTANT: DO NOT reuse the original crankshaft position sensor seal, O-ring. When installing the crankshaft position sensor be sure the crankshaft position sensor is fully seated and held stationary in the engine front cover crankshaft position sensor bore. A crankshaft position sensor that is not completely seated will cock in the engine front cover and may result in erratic engine operation.
  3. Lubricate the NEW crankshaft position sensor seal, O-ring, with clean engine oil.
  4. Install the NEW crankshaft position sensor seal, O-ring, onto the crankshaft position sensor.
    5. Fig 3: View Of CKP Sensor & Bolt
    GM11485Courtesy of GENERAL MOTORS CORP.
  5. Install crankshaft position sensor until fully seated into the engine front cover.
  6. Install crankshaft position sensor bolt.

    Tighten:  Tighten the crankshaft position sensor bolt to 8 N.m (71 lb in).
