Floor Console: Installation

  1. Install the console to the vehicle.
  2. Connect the electrical connector, if equipped.

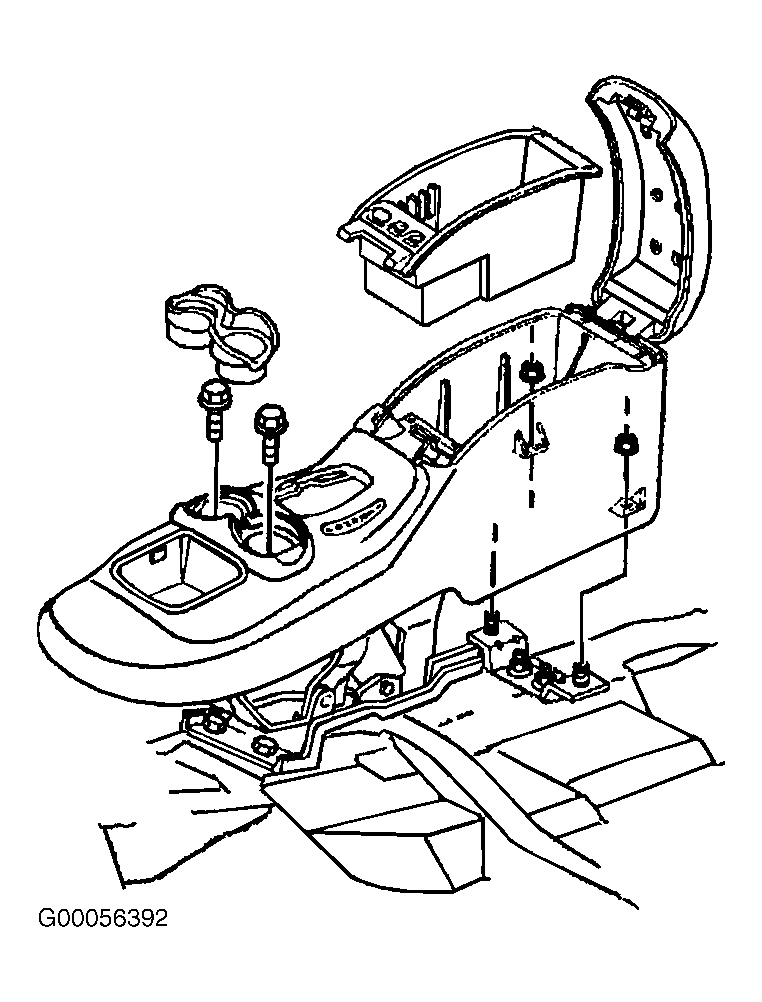

  3. Install the nuts that retain the console to the vehicle. See Figure. Tighten the nuts to specification. See TORQUE SPECIFICATIONS .
  4. Install the storage compartment to the vehicle.
  5. Install the trim plate to the console.
  6. Install the screws that retain the trim plate to the console. Tighten the nuts to specification. See TORQUE SPECIFICATIONS .
  7. Install the cup holder insert.
  8. Install the shift control lever. See SHIFT TOWER .
