Instrument Panel, Gages, and Console Component Views

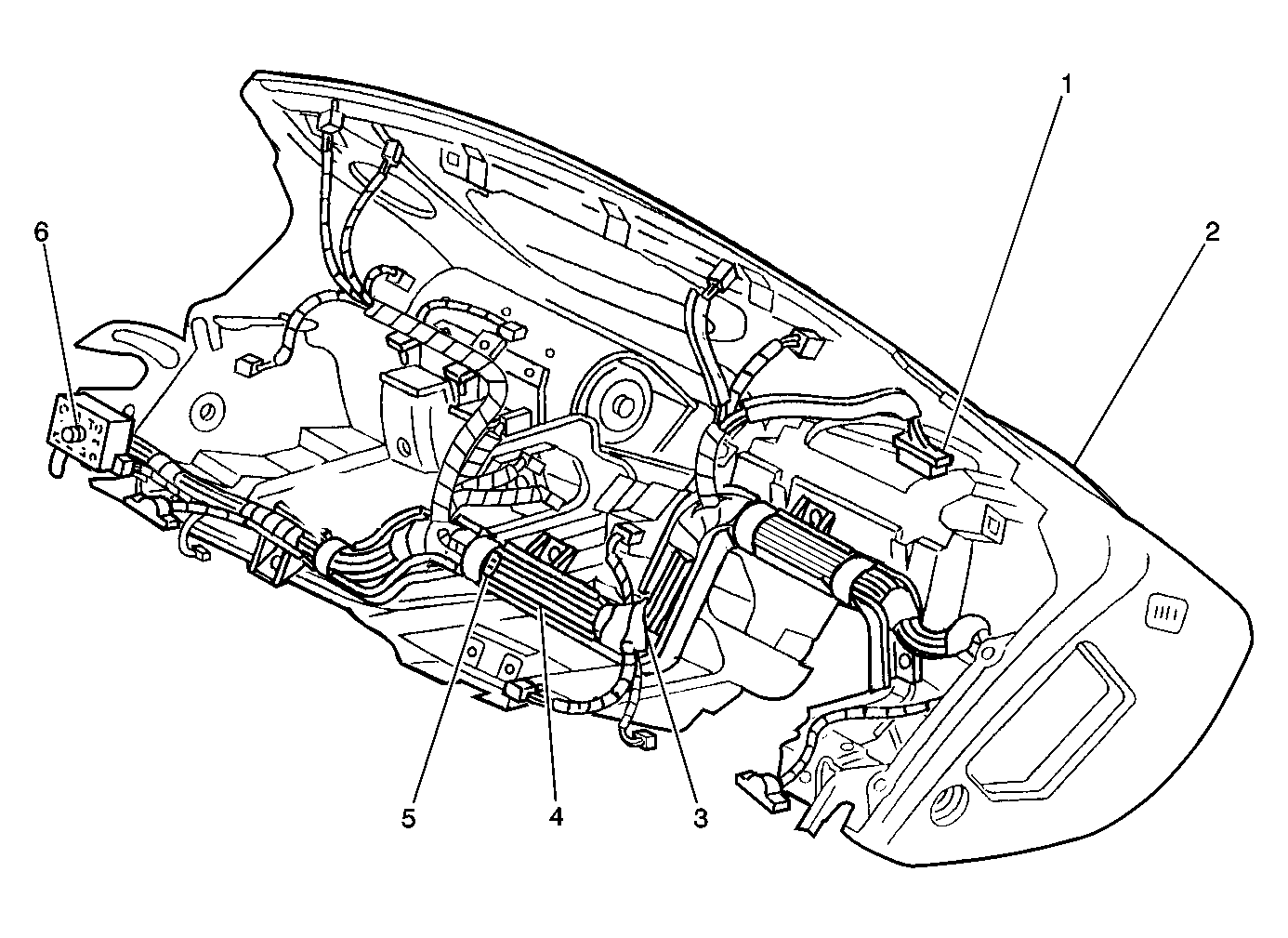

Fig 1: IP Wiring Harness Composite View

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Instrument Panel Cluster (IPC) Connector
2	Instrument Panel Cluster (IPC)
3	S240
4	S205
5	Splice Pack SP203
6	C203

Fig 2: Engine Harness Rear (4.3L)

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Throttle Position (TP) Sensor
2	Idle Air Control (IAC) Valve
3	Ignition Coil
4	Evaporative Emission (EVAP) Canister Purge Solenoid
5	Engine Oil Pressure (EOP) Sensor
6	Knock Sensor (KS)
7	Fuel Pressure Connection Valve
8	Positive Crankcase Ventilation (PCV) Valve
