Cruise Control Schematics

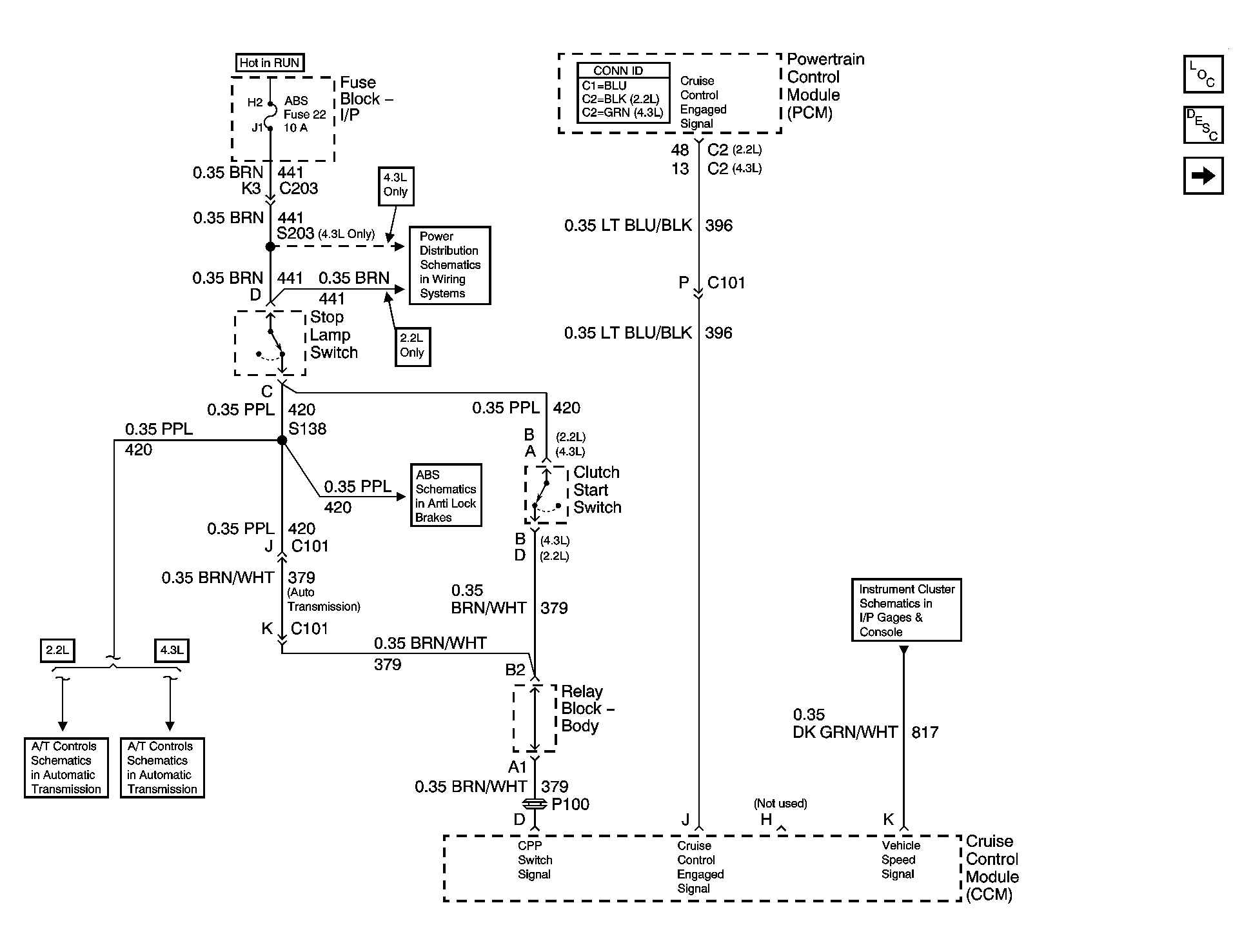

Fig 1: Clutch Pedal Position Switch, Stop Lamp Switch, PCM and Cruise Control Module Schematic

Courtesy of GENERAL MOTORS CORP.

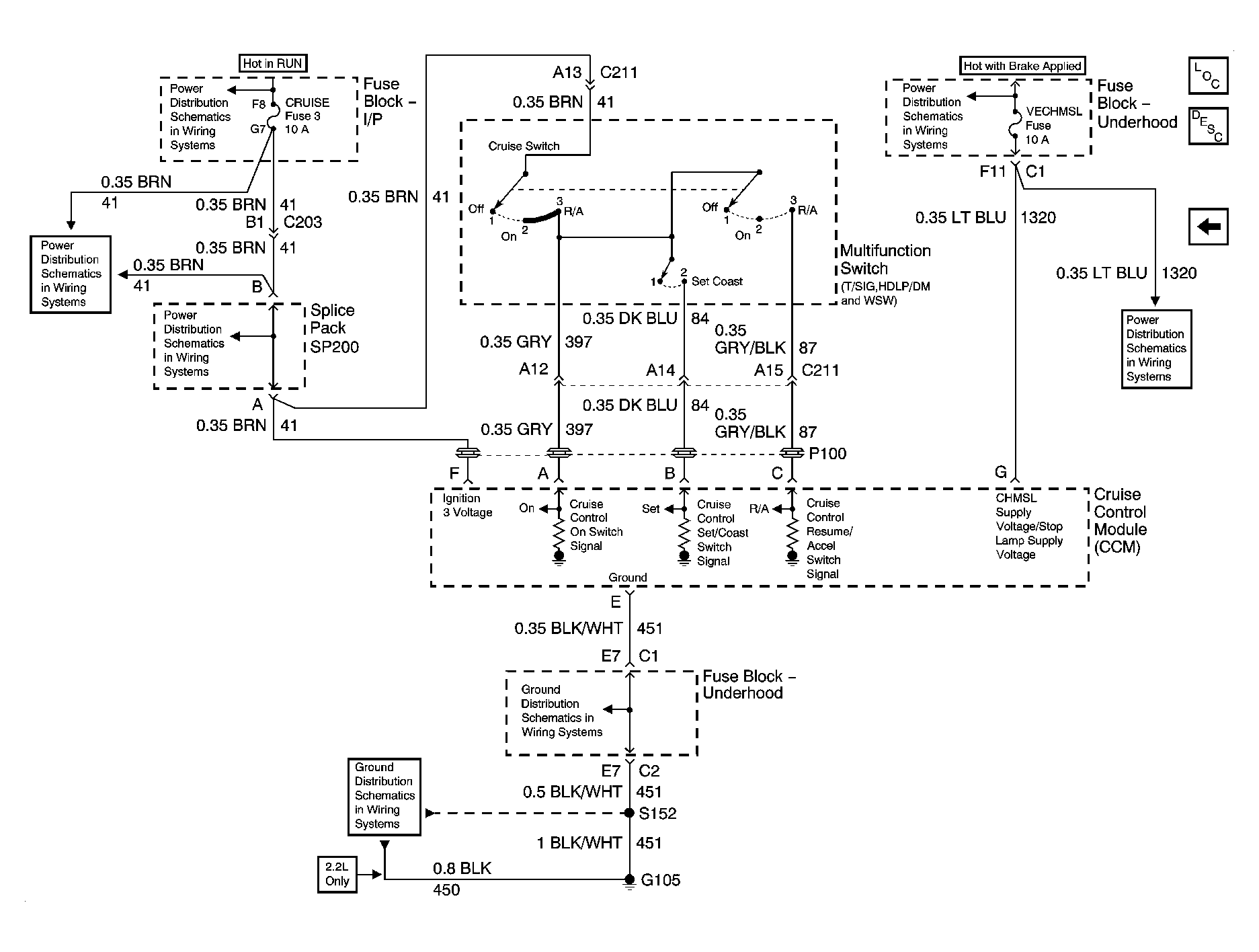

Fig 2: CRUISE Fuse, Multifunction Switch and Cruise Control Module Schematic

Courtesy of GENERAL MOTORS CORP.
