ABS Schematics

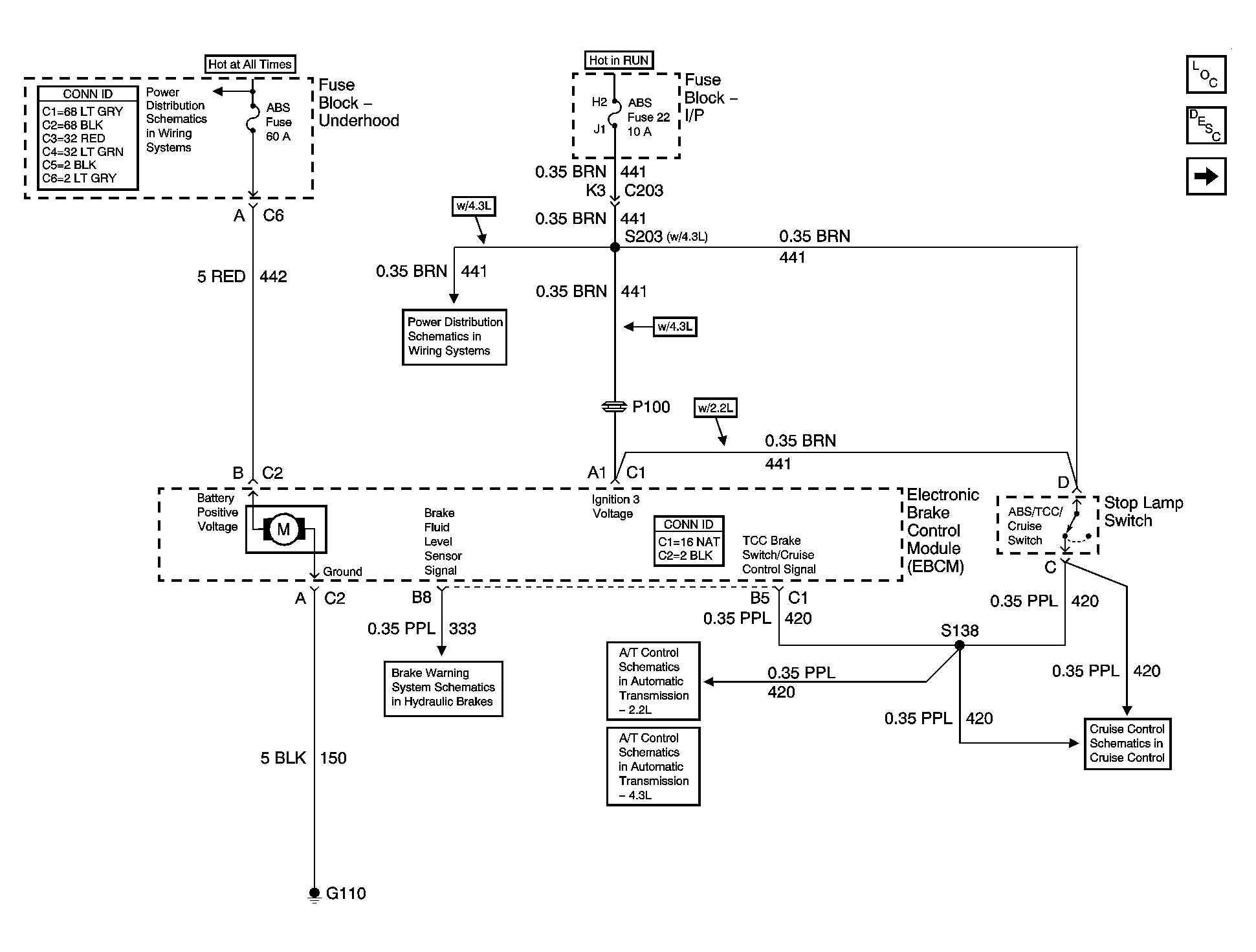

Fig 1: ABS Power and Ground Schematic
GM888480Courtesy of GENERAL MOTORS CORP.

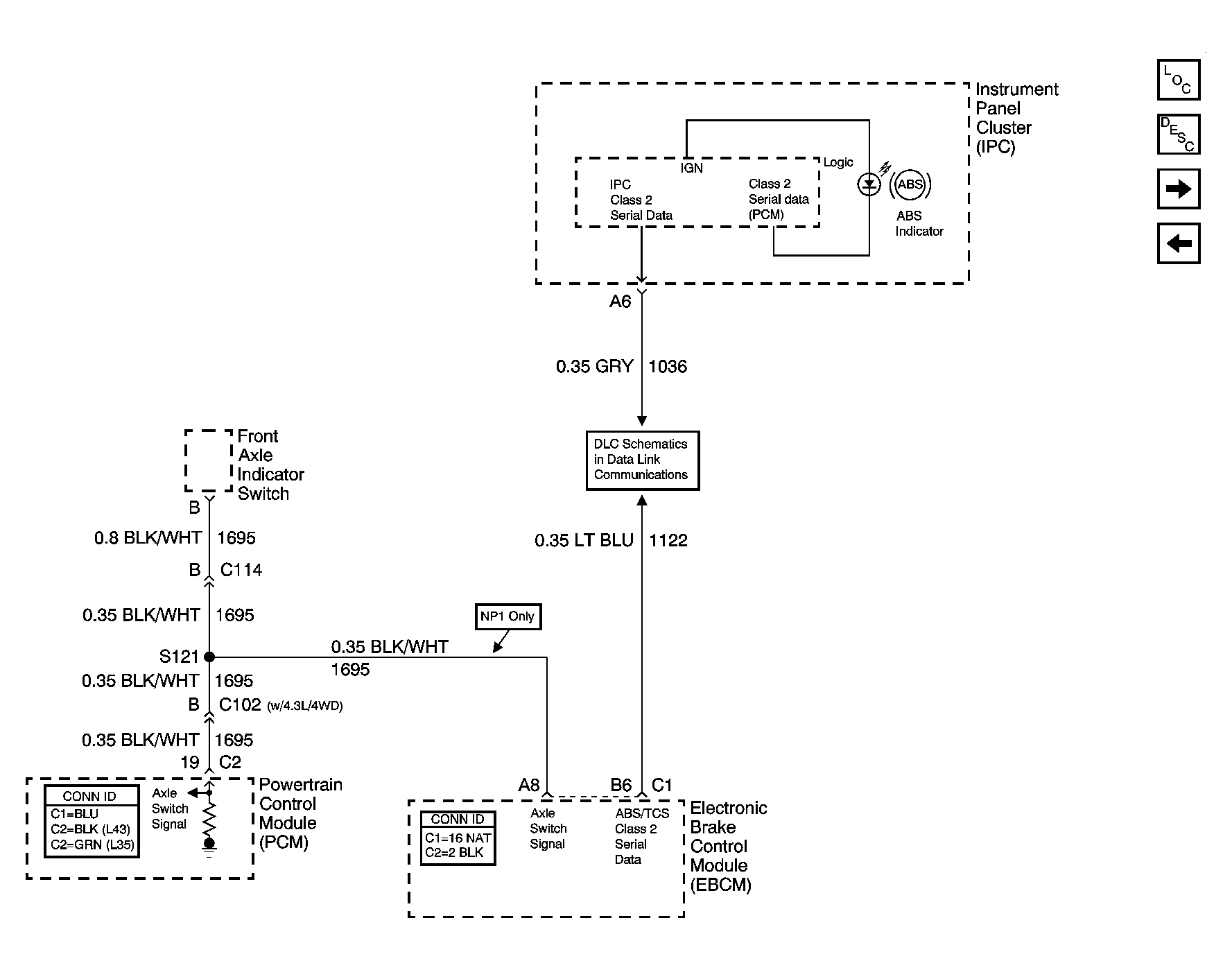

Fig 2: Class 2 Communication Schematic
GM884541Courtesy of GENERAL MOTORS CORP.

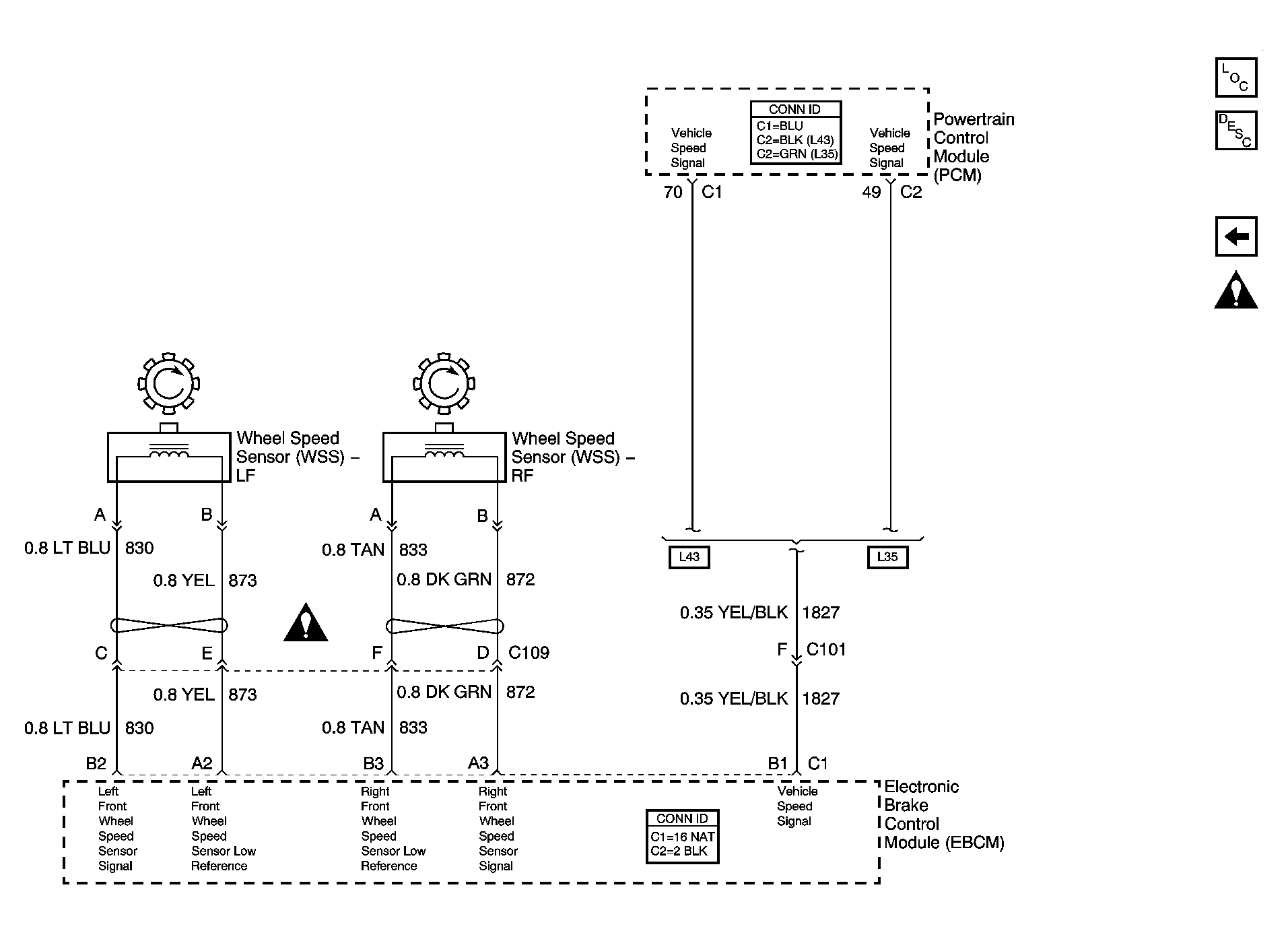

Fig 3: Speed Sensor Signals Schematic
GM884543Courtesy of GENERAL MOTORS CORP.
