Ground Distribution Schematics

Fig 1: G111 and G112 - Except Export

GM754475

Courtesy of GENERAL MOTORS CORP.

Fig 2: G111 and G112 - Export

GM754477

Courtesy of GENERAL MOTORS CORP.

Fig 3: G100, G101, G106, G107, G108 and G110

GM754478

Courtesy of GENERAL MOTORS CORP.

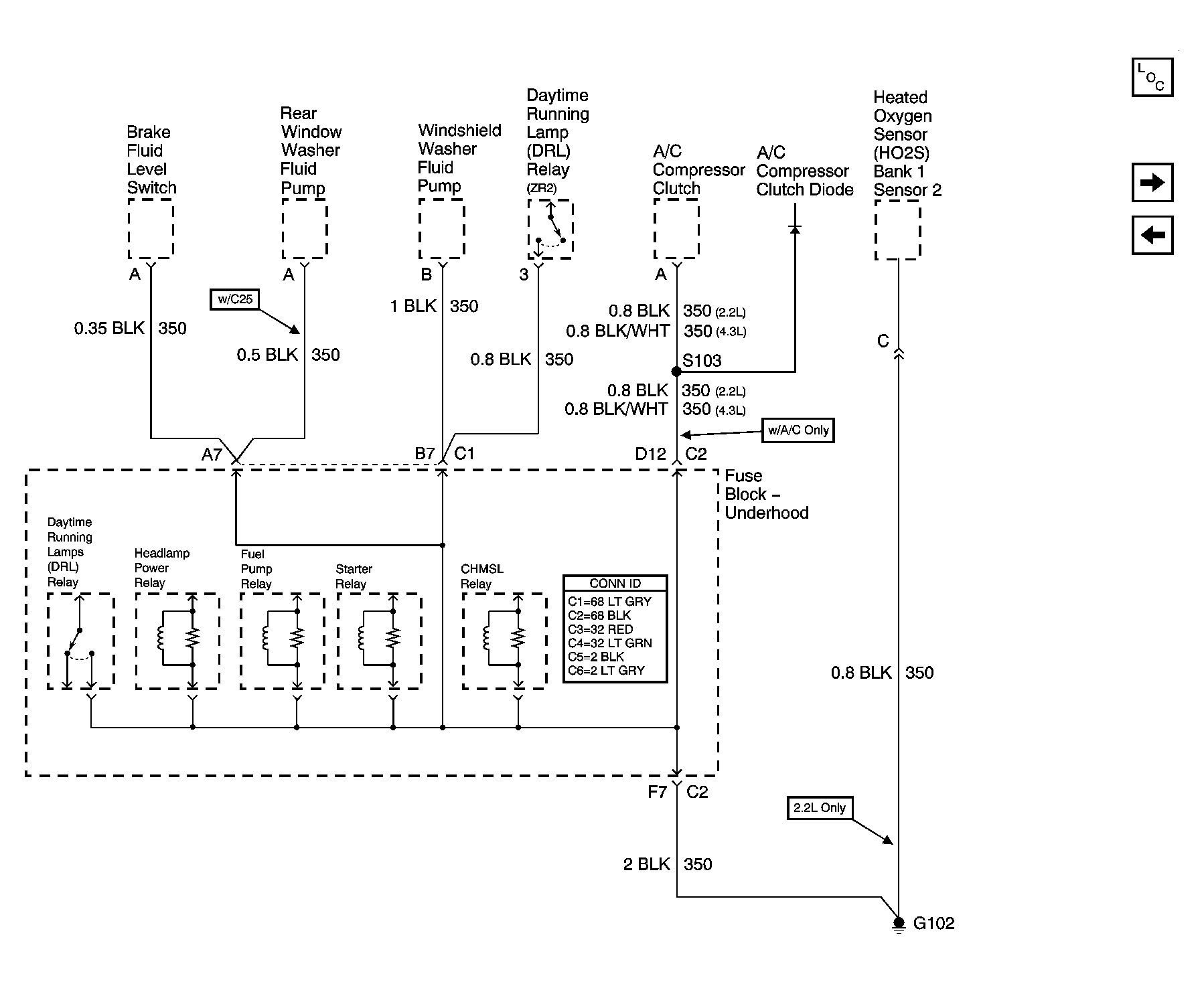

Fig 4: G102 - Except Export

GM754479

Courtesy of GENERAL MOTORS CORP.

Fig 5: G102 - Export

GM754480

Courtesy of GENERAL MOTORS CORP.

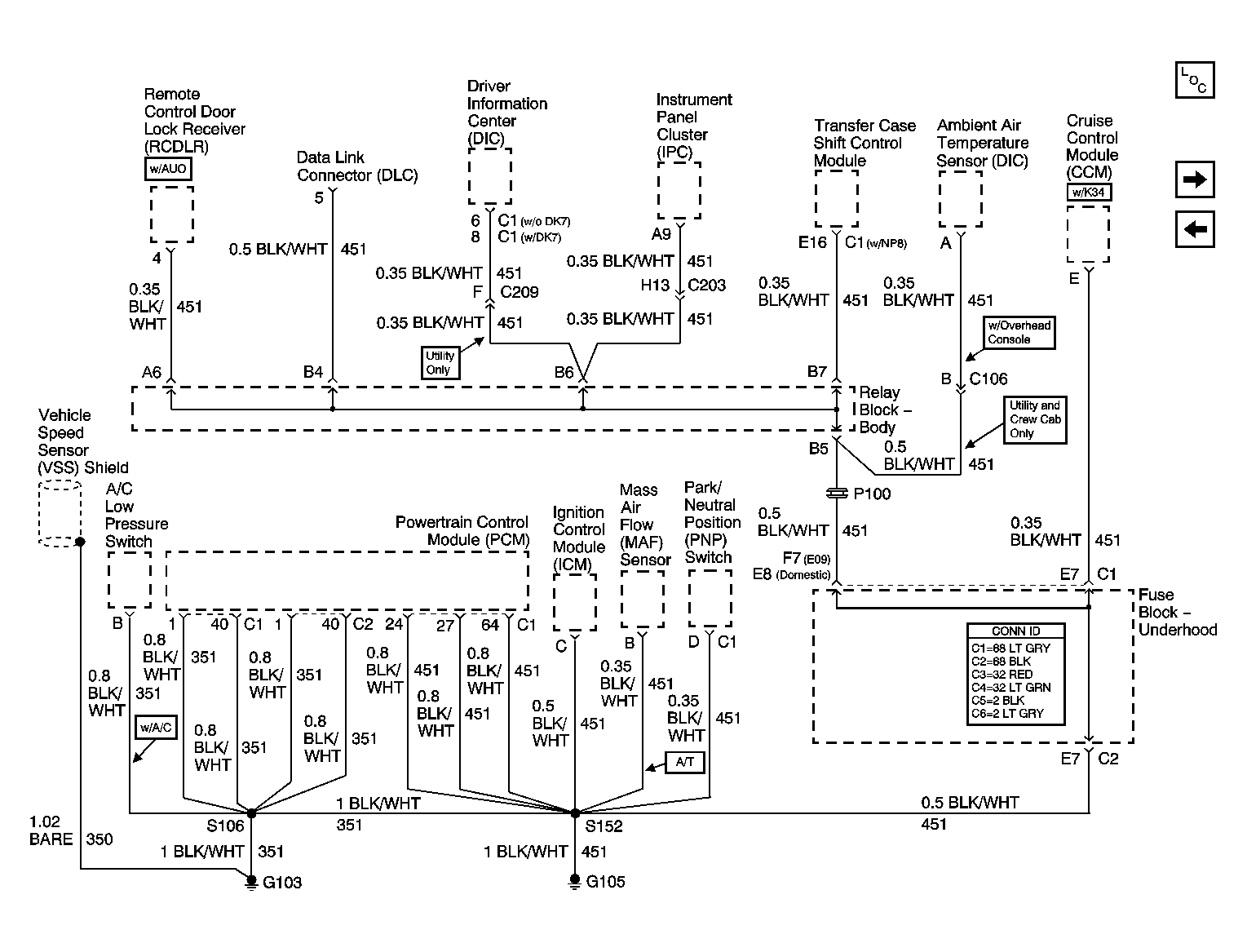

Fig 6: G103 and G105 - 4.3L

GM858037

Courtesy of GENERAL MOTORS CORP.

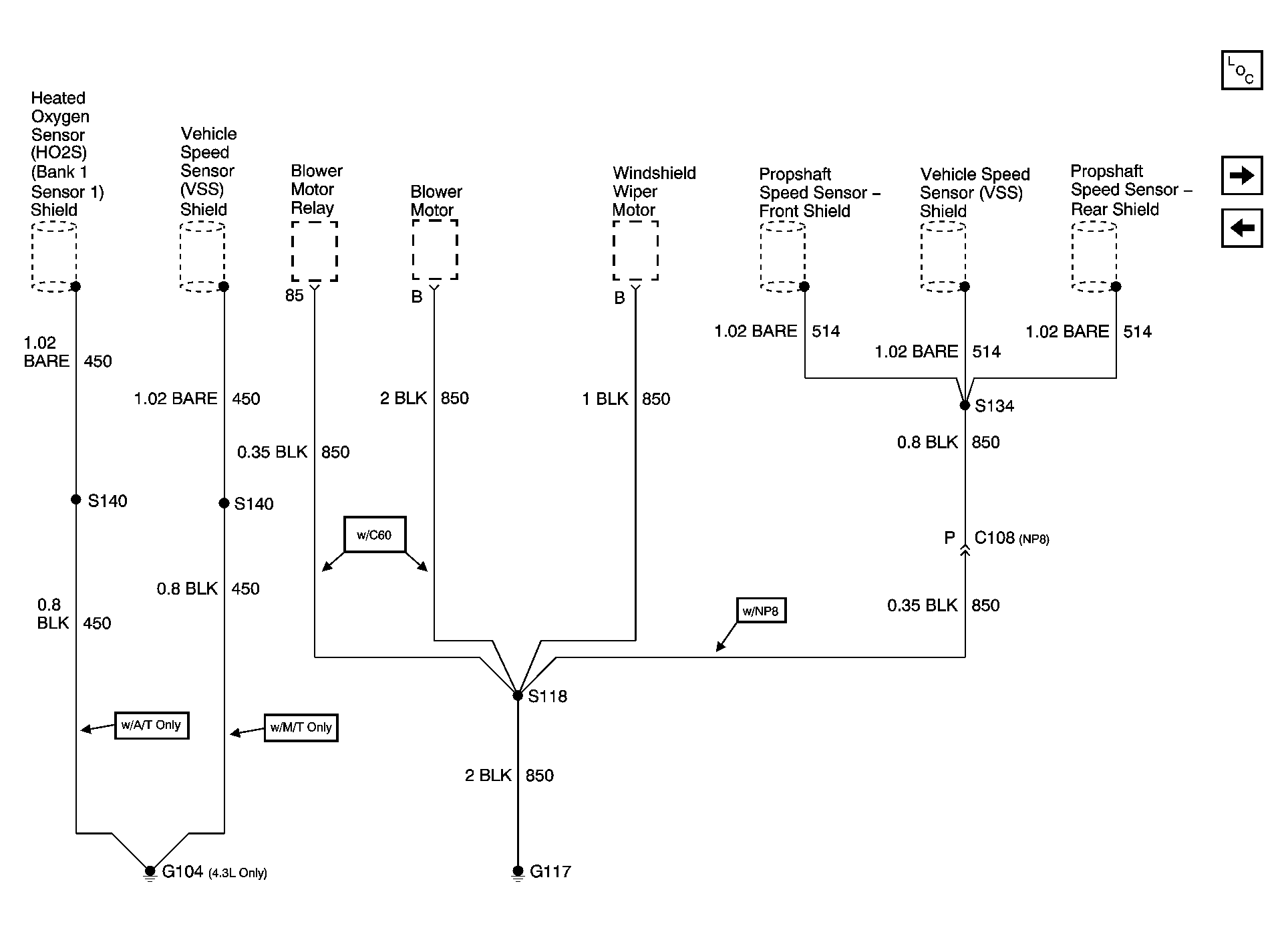

Fig 7: G104 and G117

GM879268

Courtesy of GENERAL MOTORS CORP.

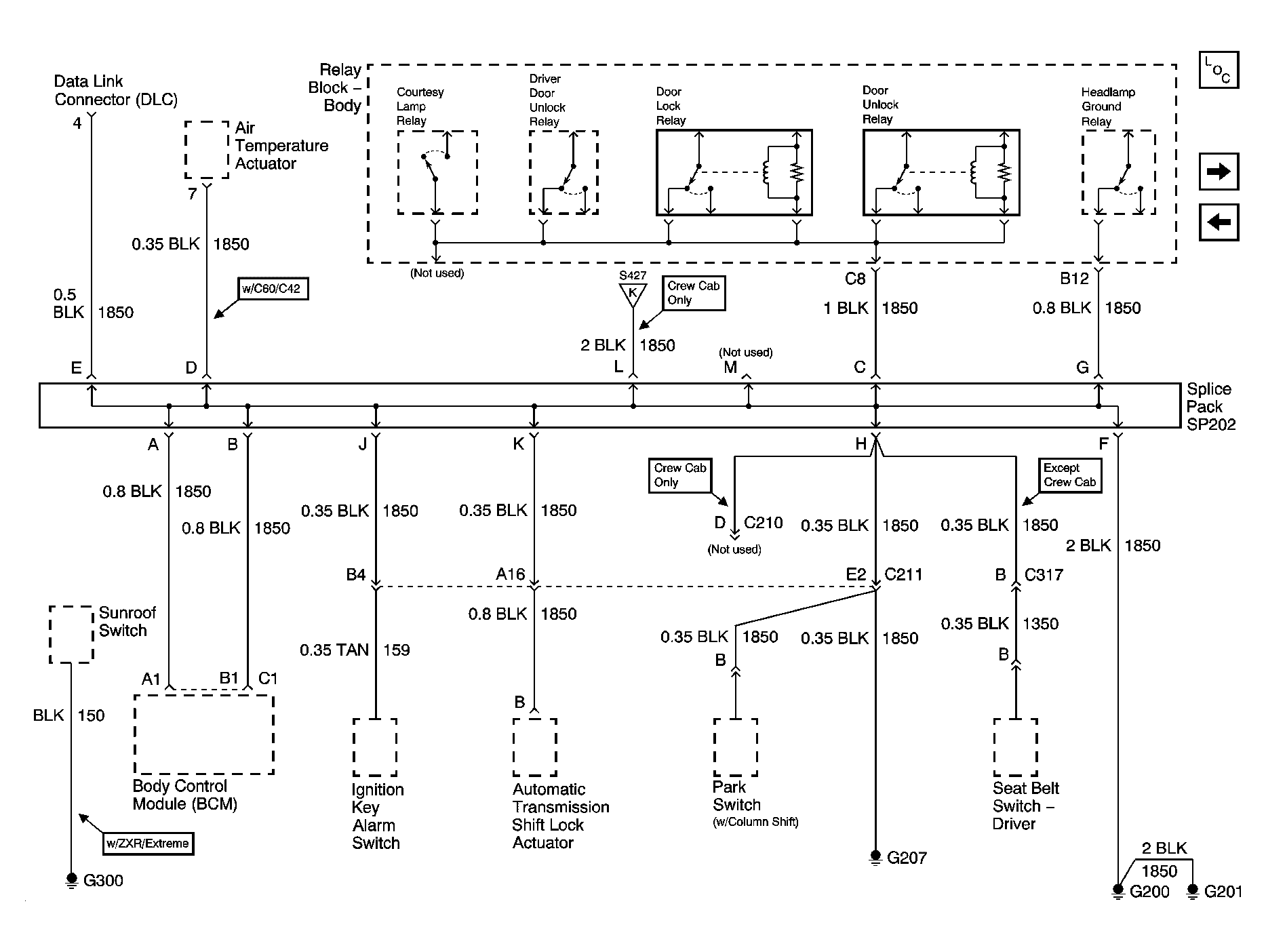

Fig 8: G200, G201 and G207 - Pickup and Crew Cab

GM901507

Courtesy of GENERAL MOTORS CORP.

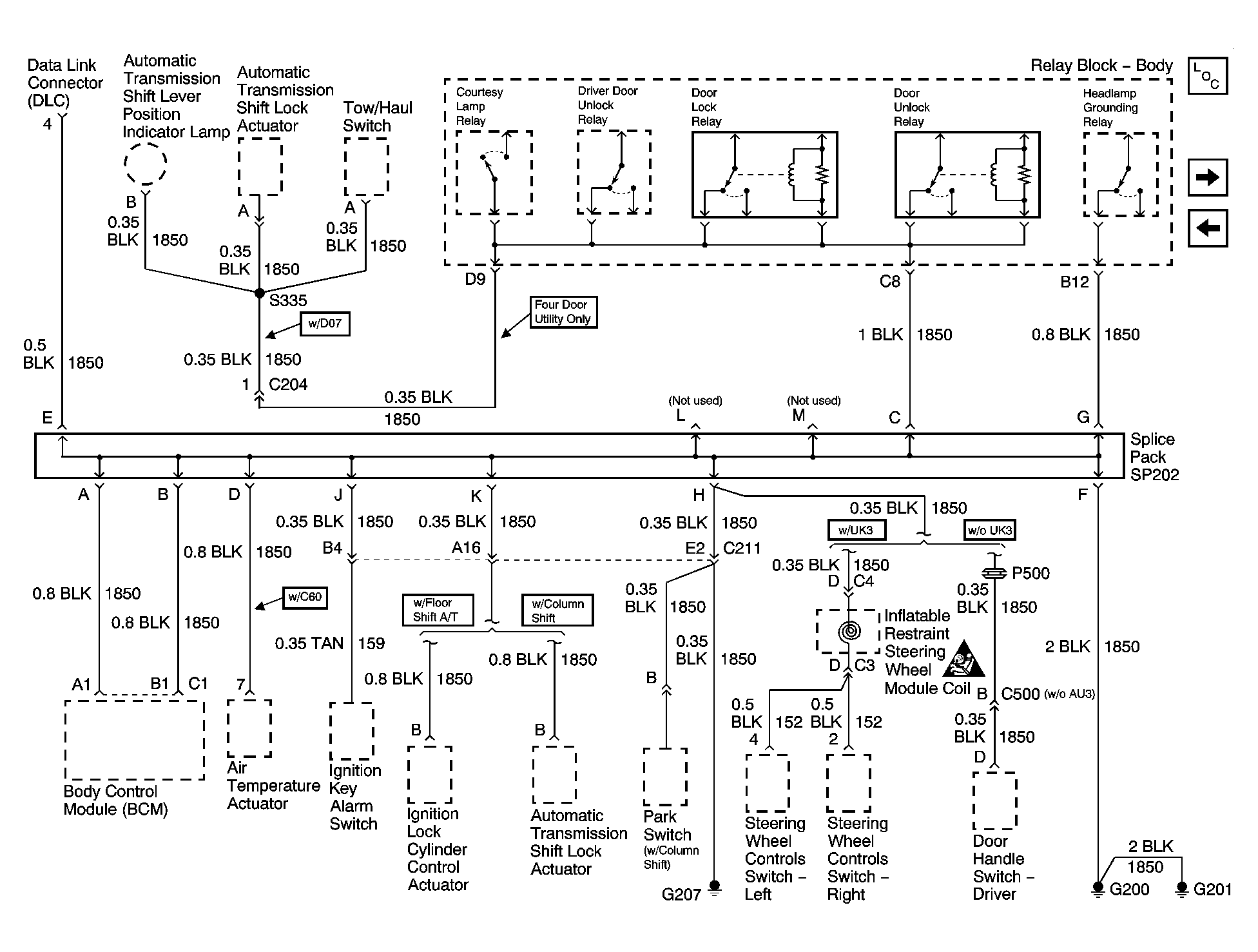

Fig 9: G200, G201 and G207 - Utility

GM894448

Courtesy of GENERAL MOTORS CORP.

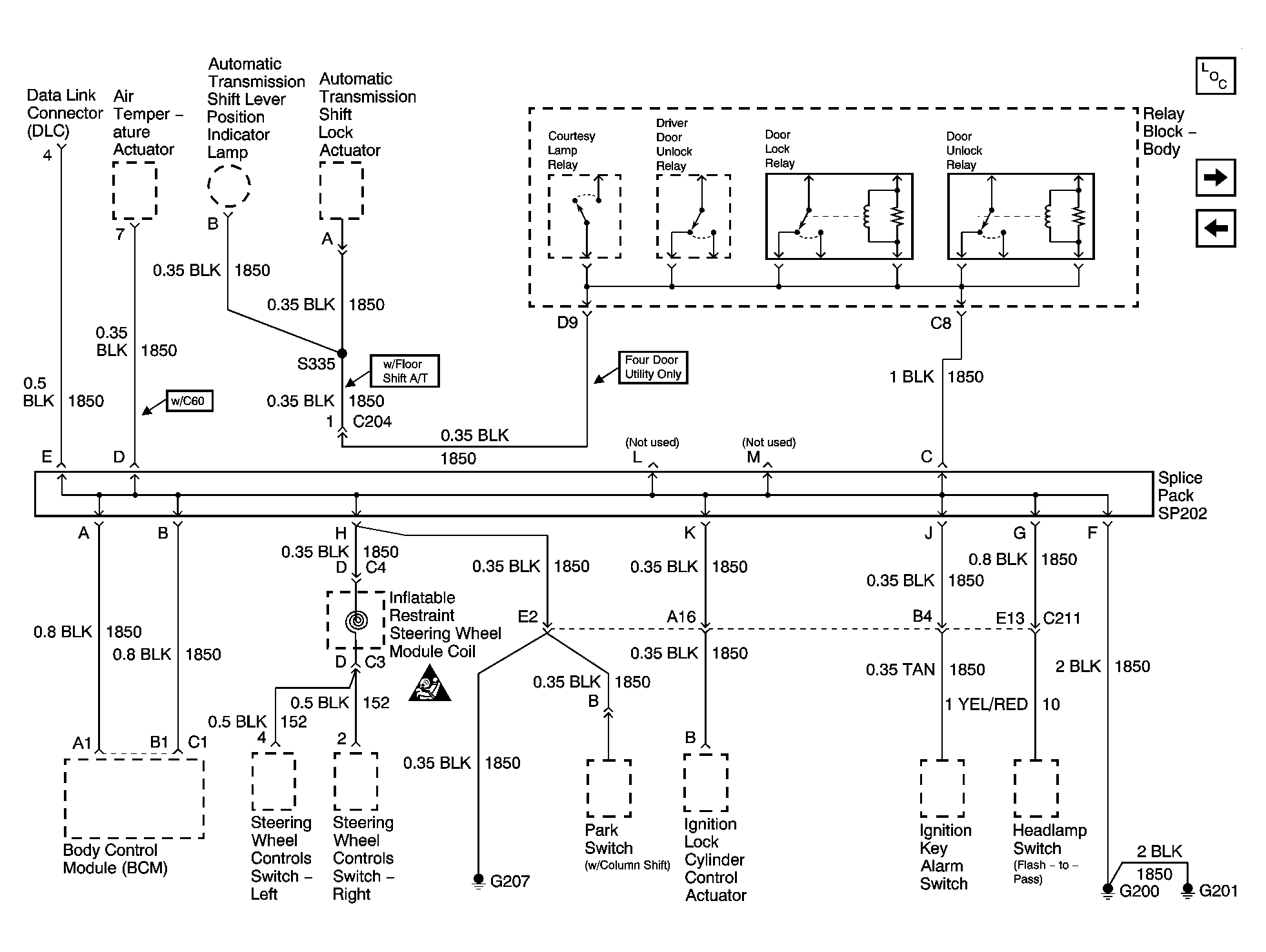

Fig 10: G200, G201, and G207 - Export

GM894450

Courtesy of GENERAL MOTORS CORP.

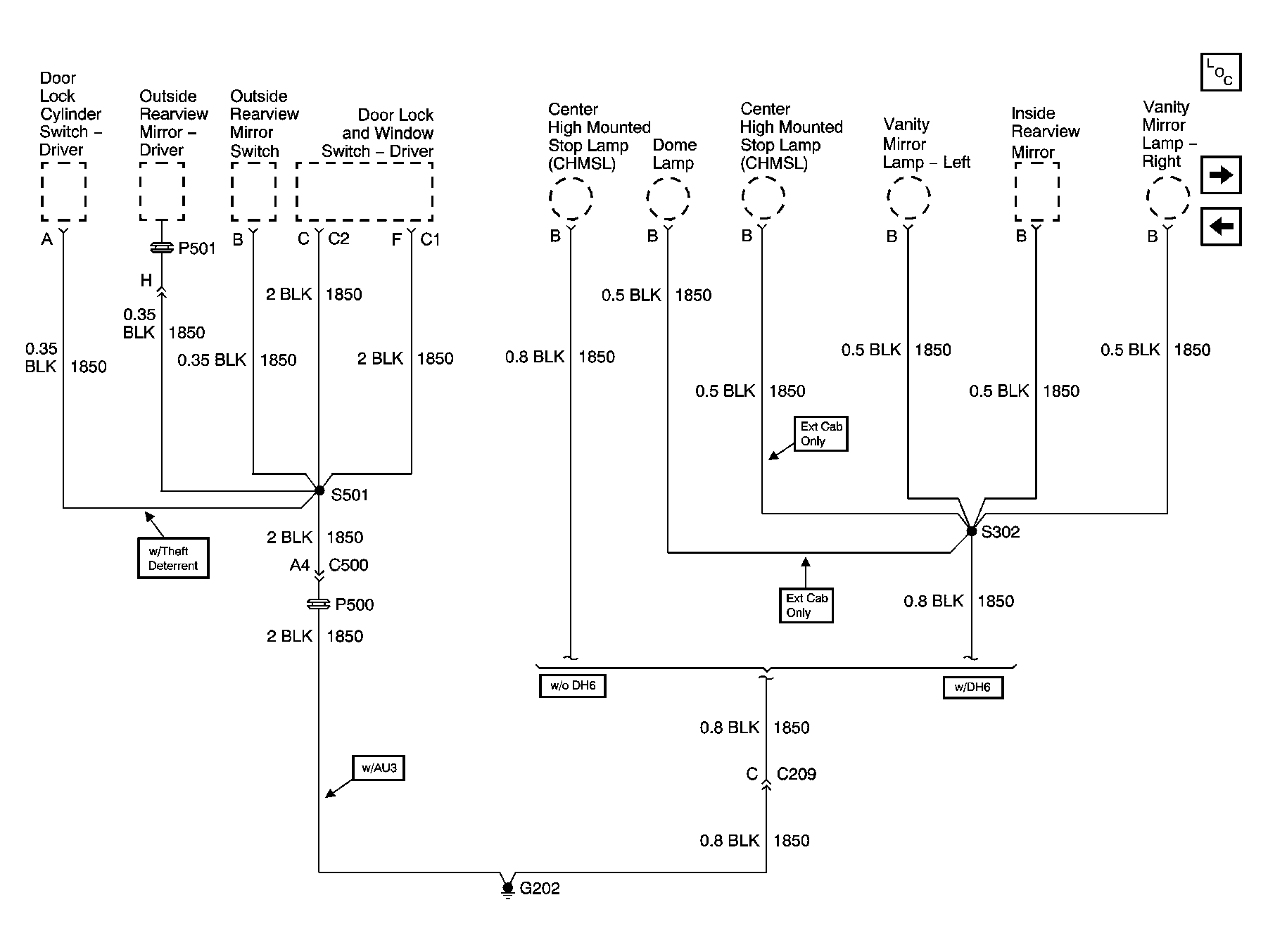

Fig 11: G202 - Pickup Except Crew Cab

GM879269

Courtesy of GENERAL MOTORS CORP.

Fig 12: S501 - Utility

GM879271

Courtesy of GENERAL MOTORS CORP.

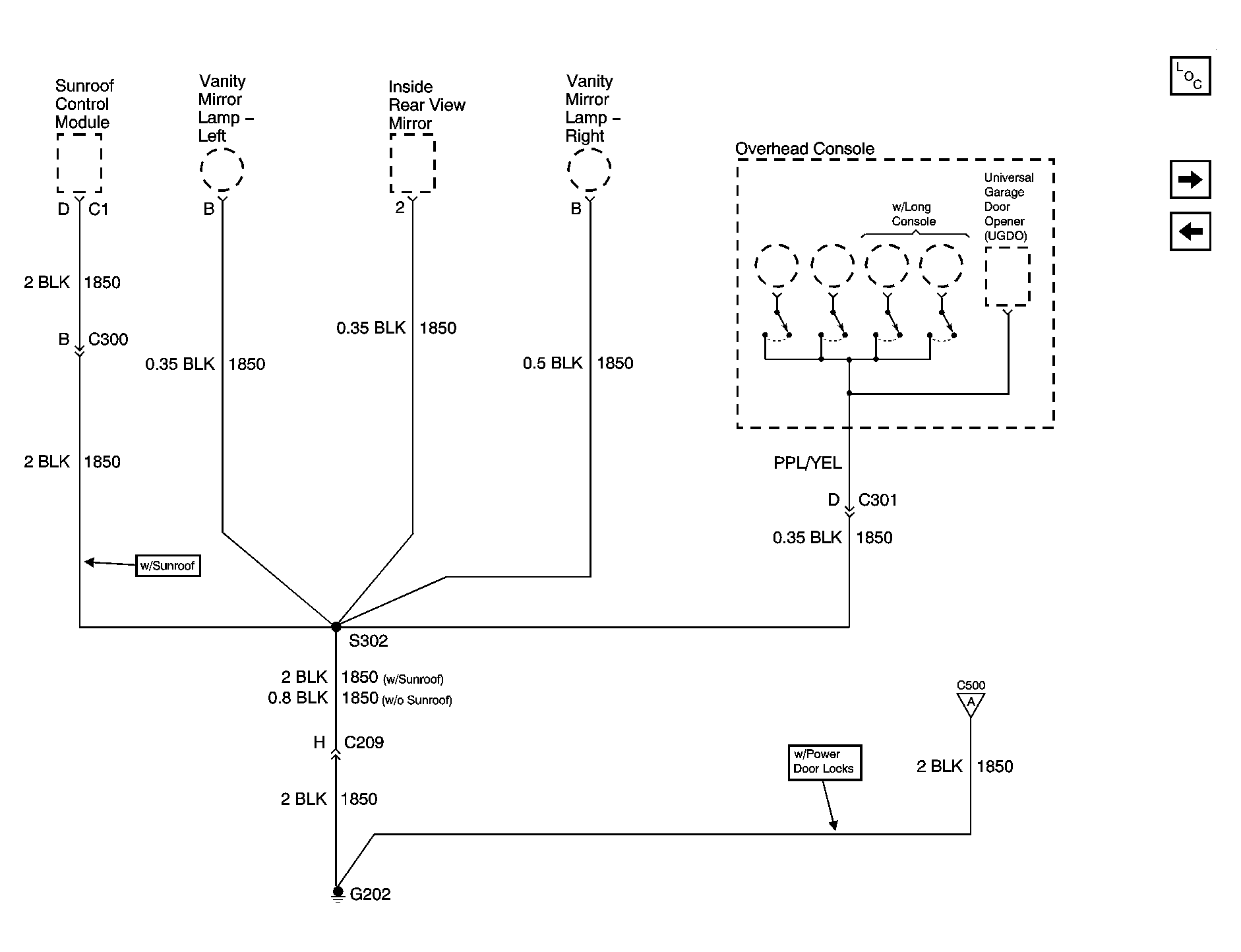

Fig 13: G202 - Utility and Crew Cab

GM879272

Courtesy of GENERAL MOTORS CORP.

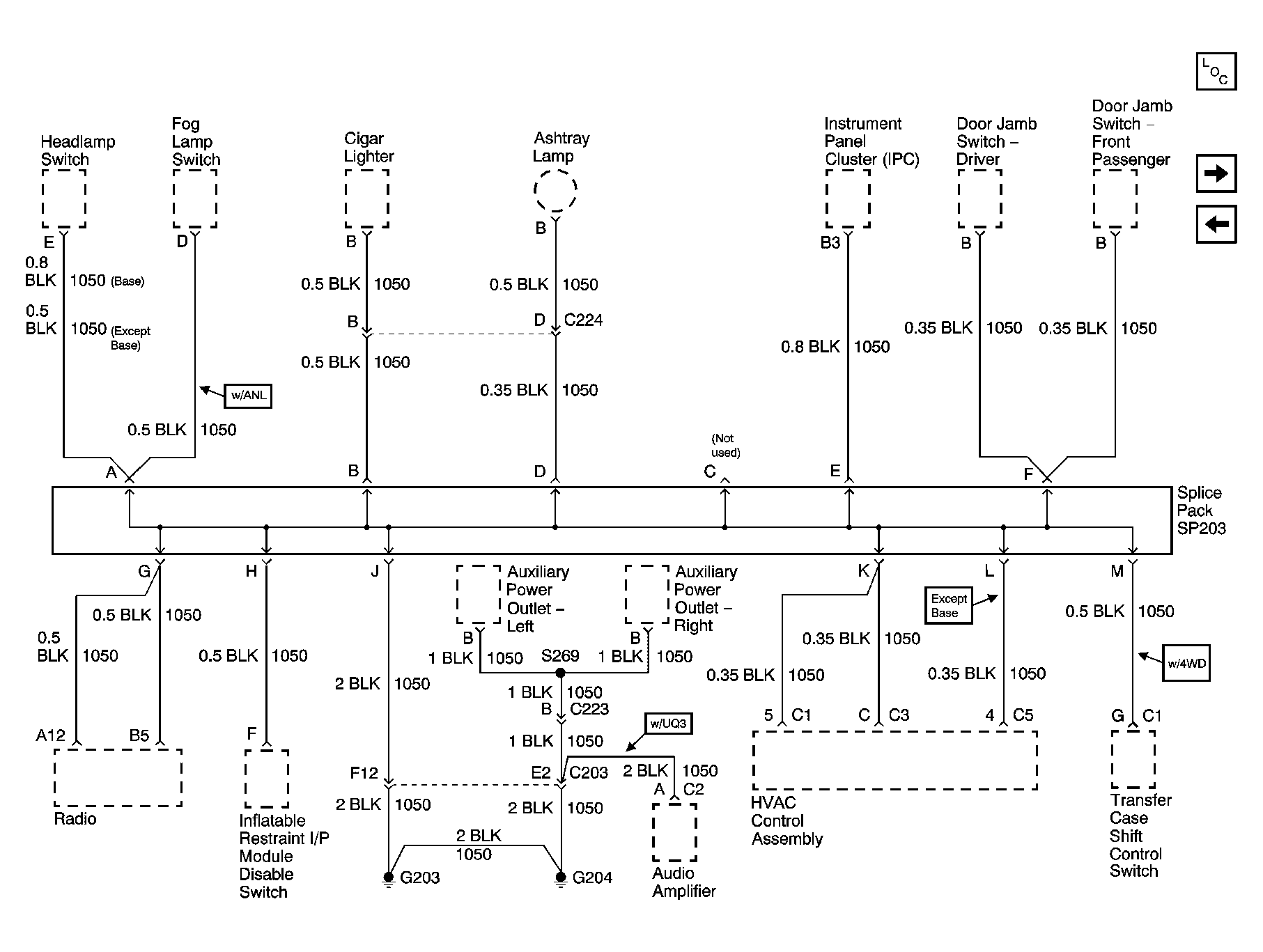

Fig 14: G203 and G204 - Pickup

GM754491

Courtesy of GENERAL MOTORS CORP.

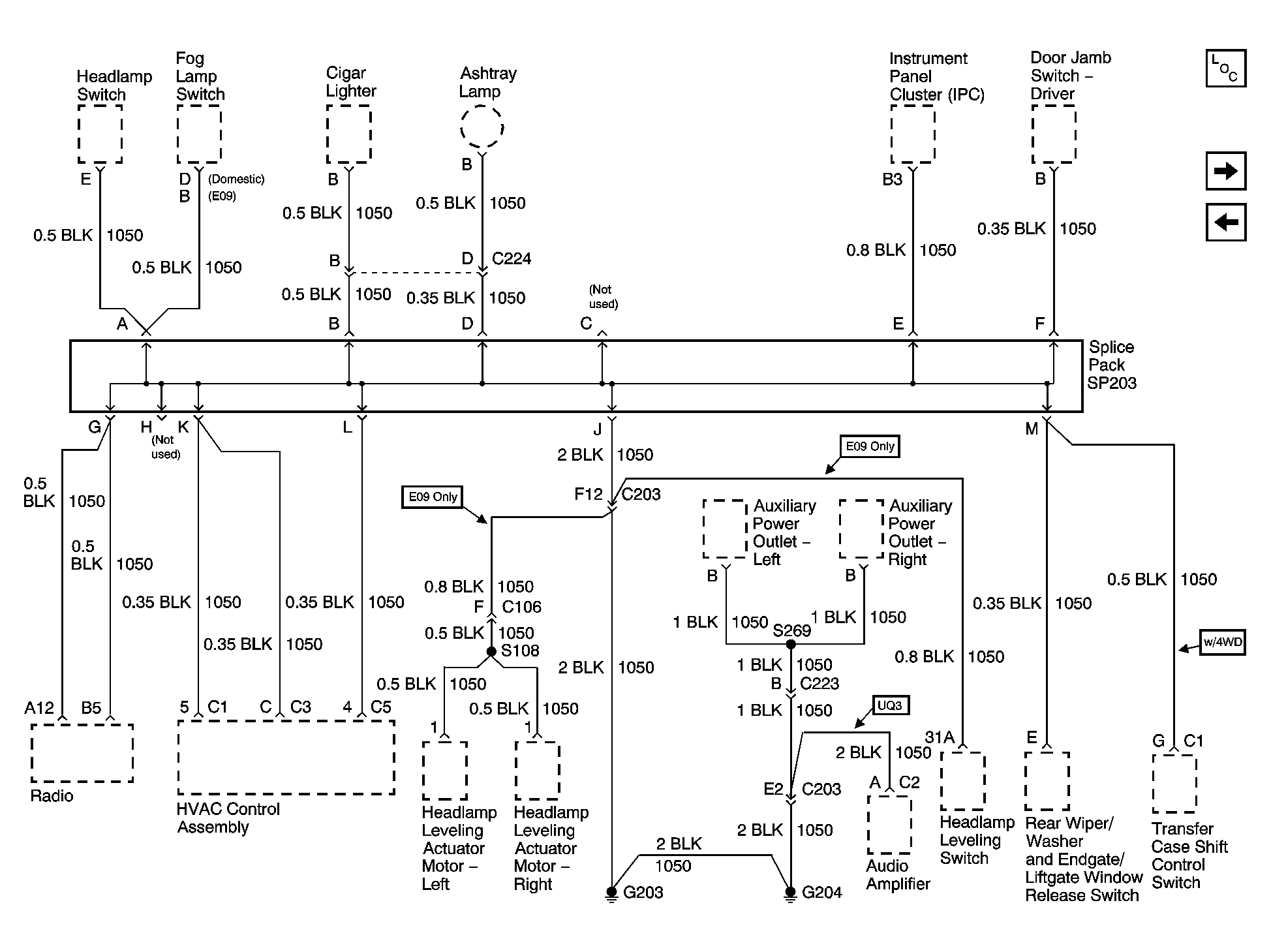

Fig 15: G203 and G204 - Utility w/Manual A/C

GM754492

Courtesy of GENERAL MOTORS CORP.

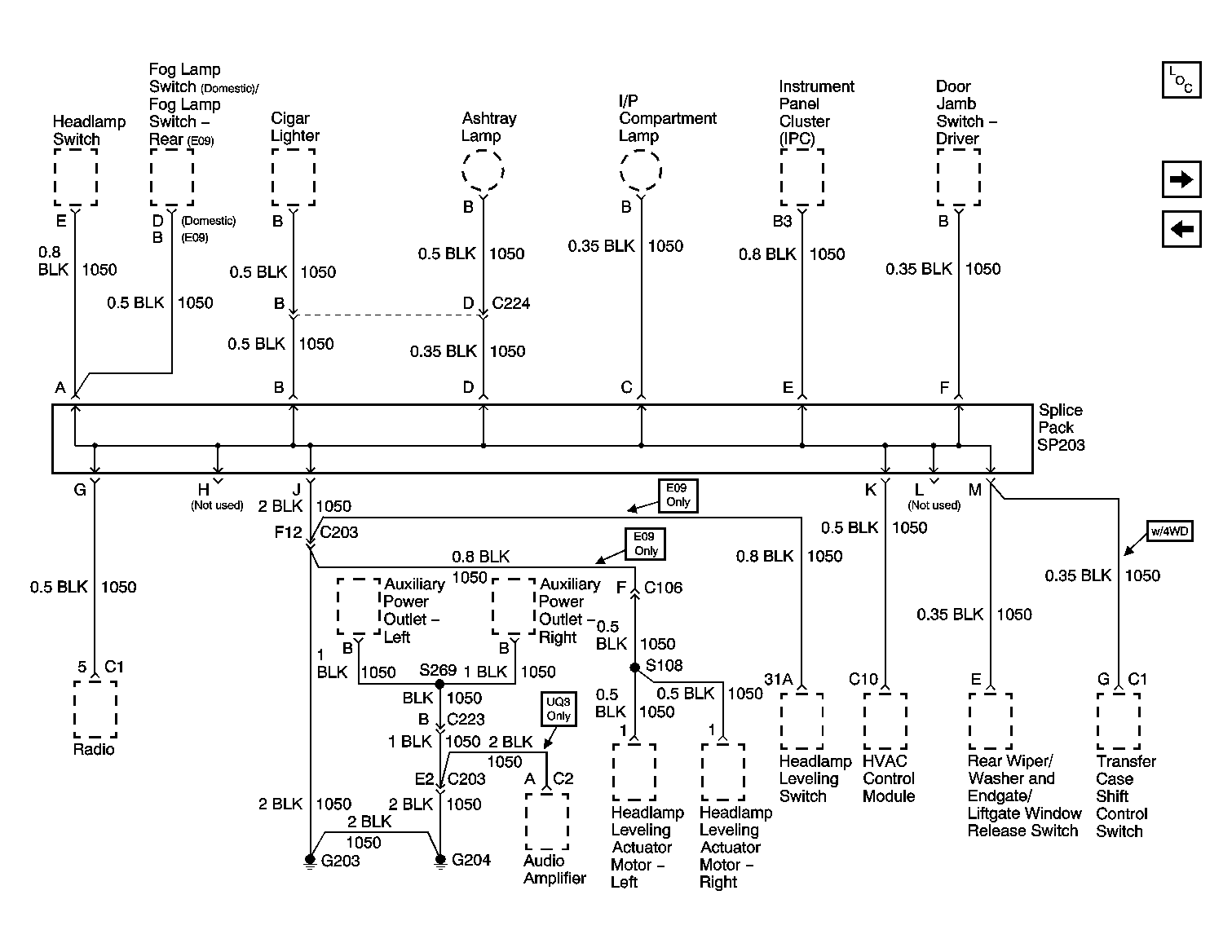

Fig 16: G203 and G204 - Utility w/Auto A/C

GM754493

Courtesy of GENERAL MOTORS CORP.

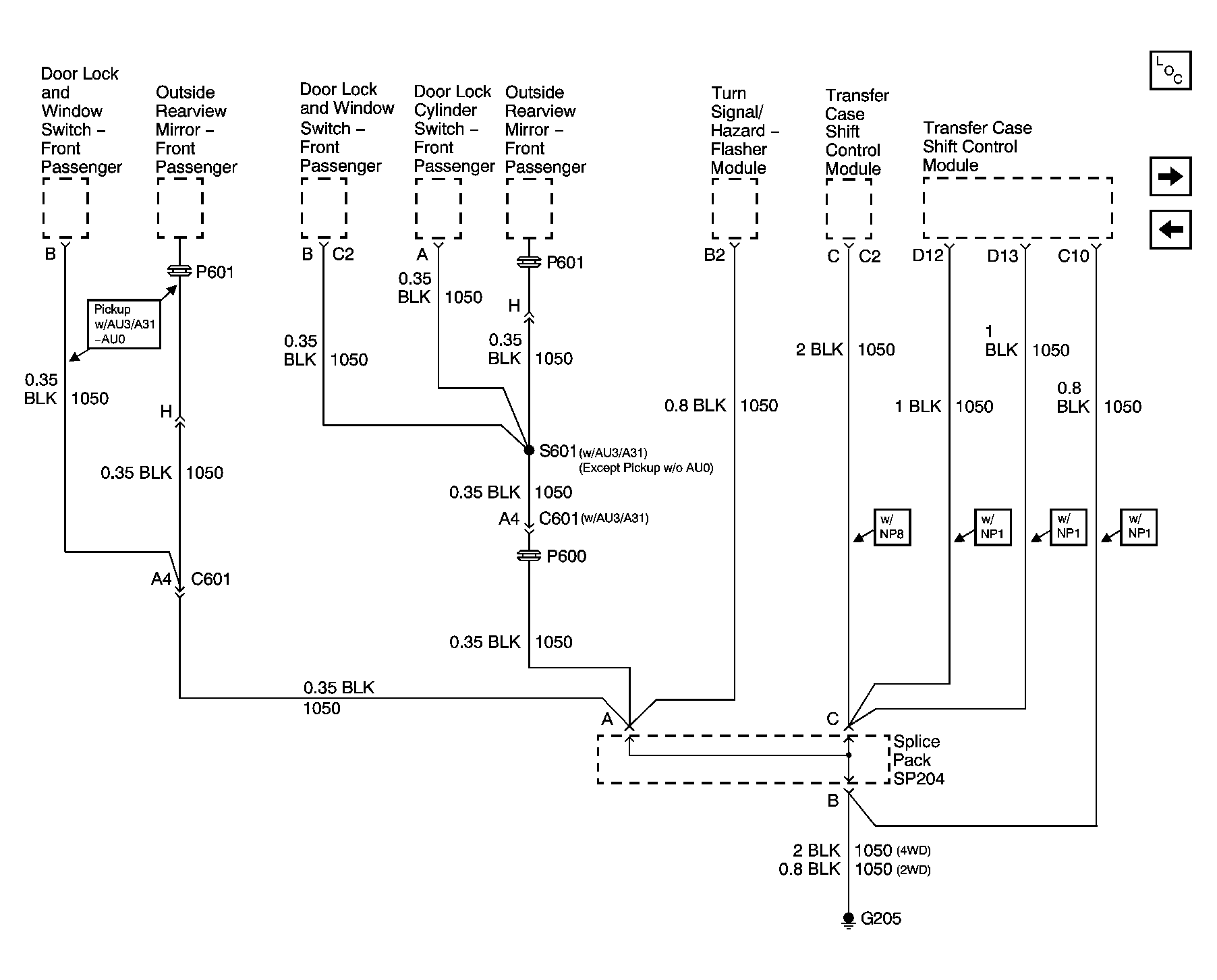

Fig 17: G205 - Utility and Crew Cab

GM879273

Courtesy of GENERAL MOTORS CORP.

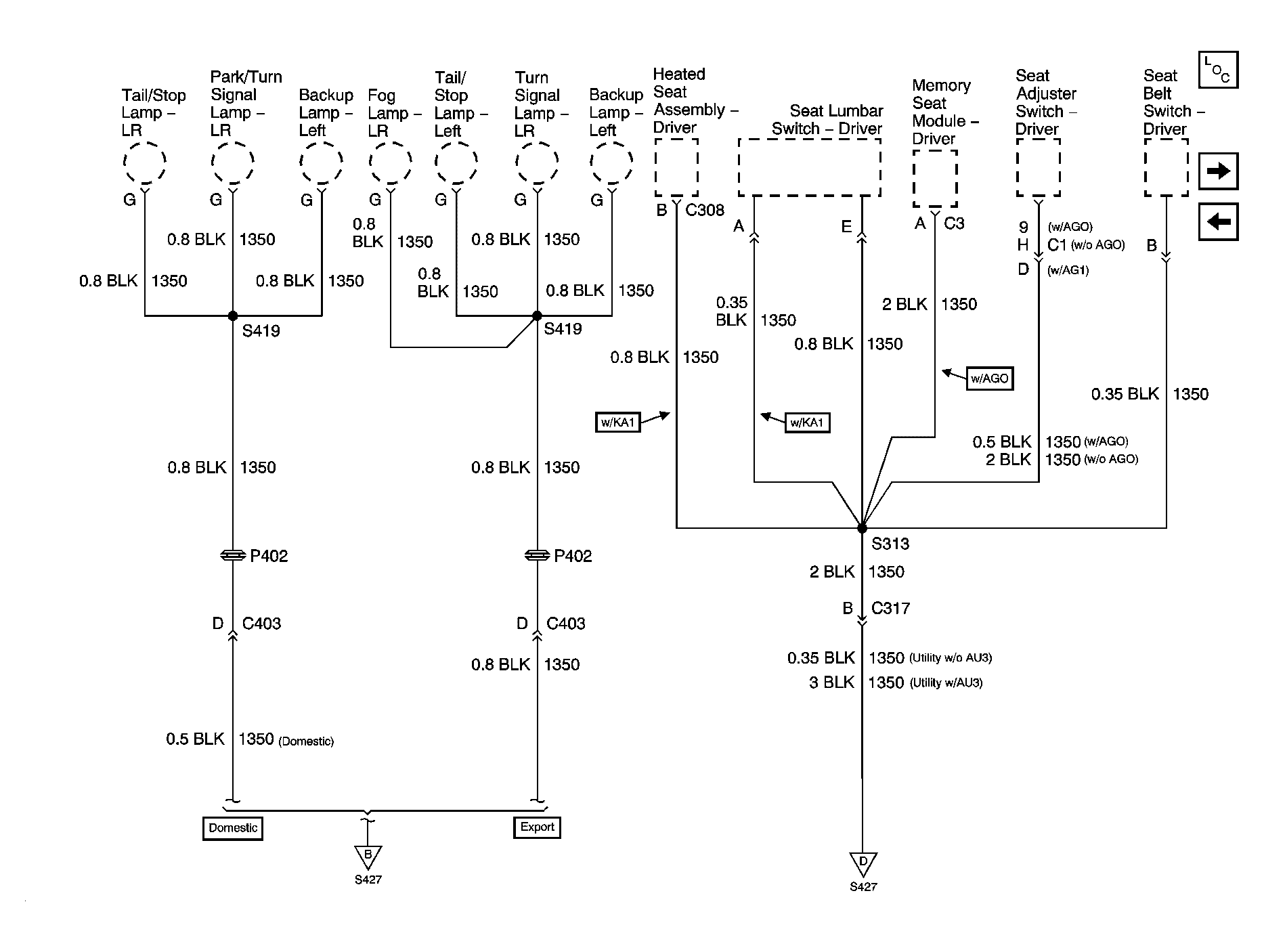

Fig 18: S313 and S419

GM754496

Courtesy of GENERAL MOTORS CORP.

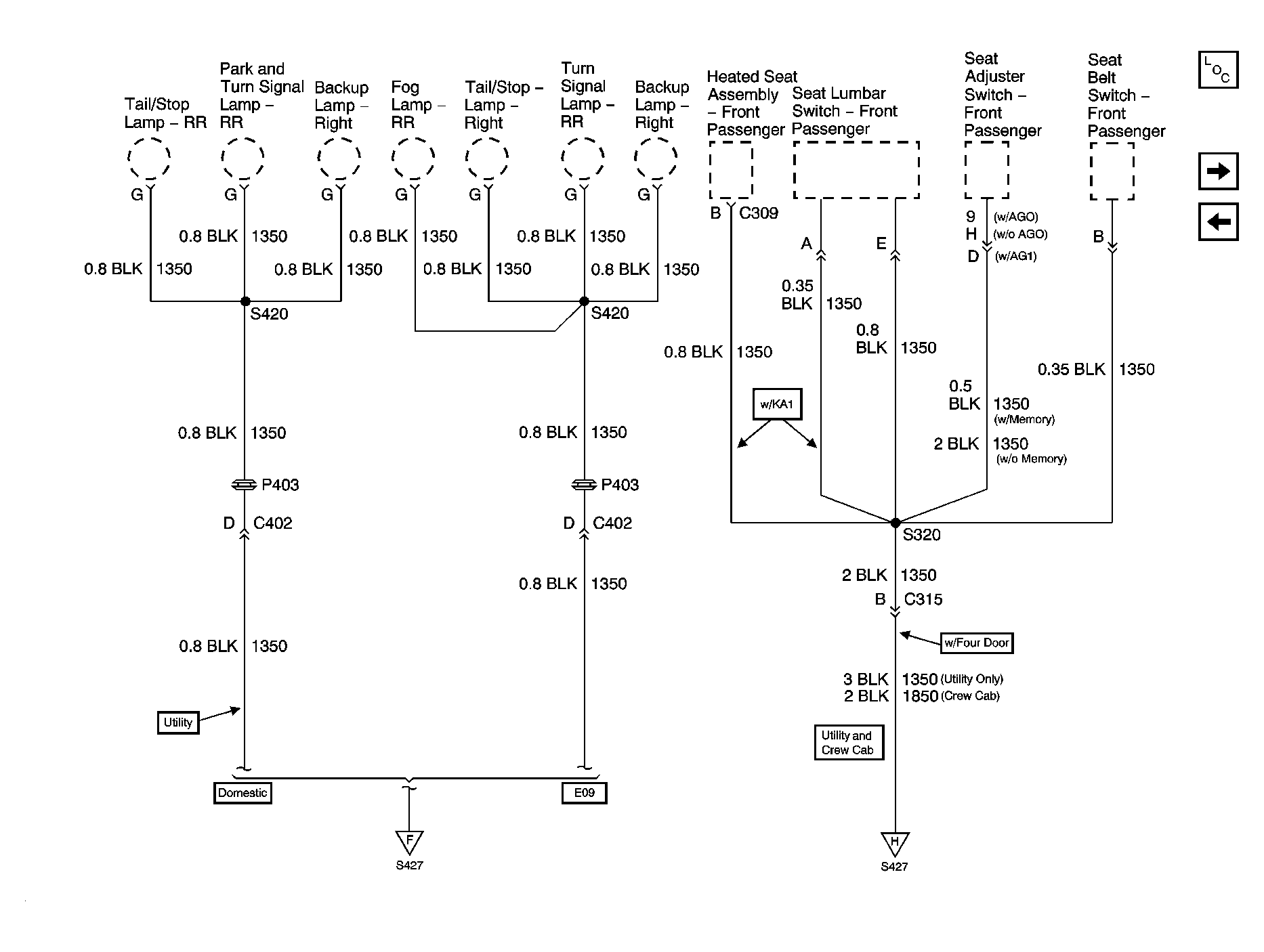

Fig 19: S320 and S420

GM754497

Courtesy of GENERAL MOTORS CORP.

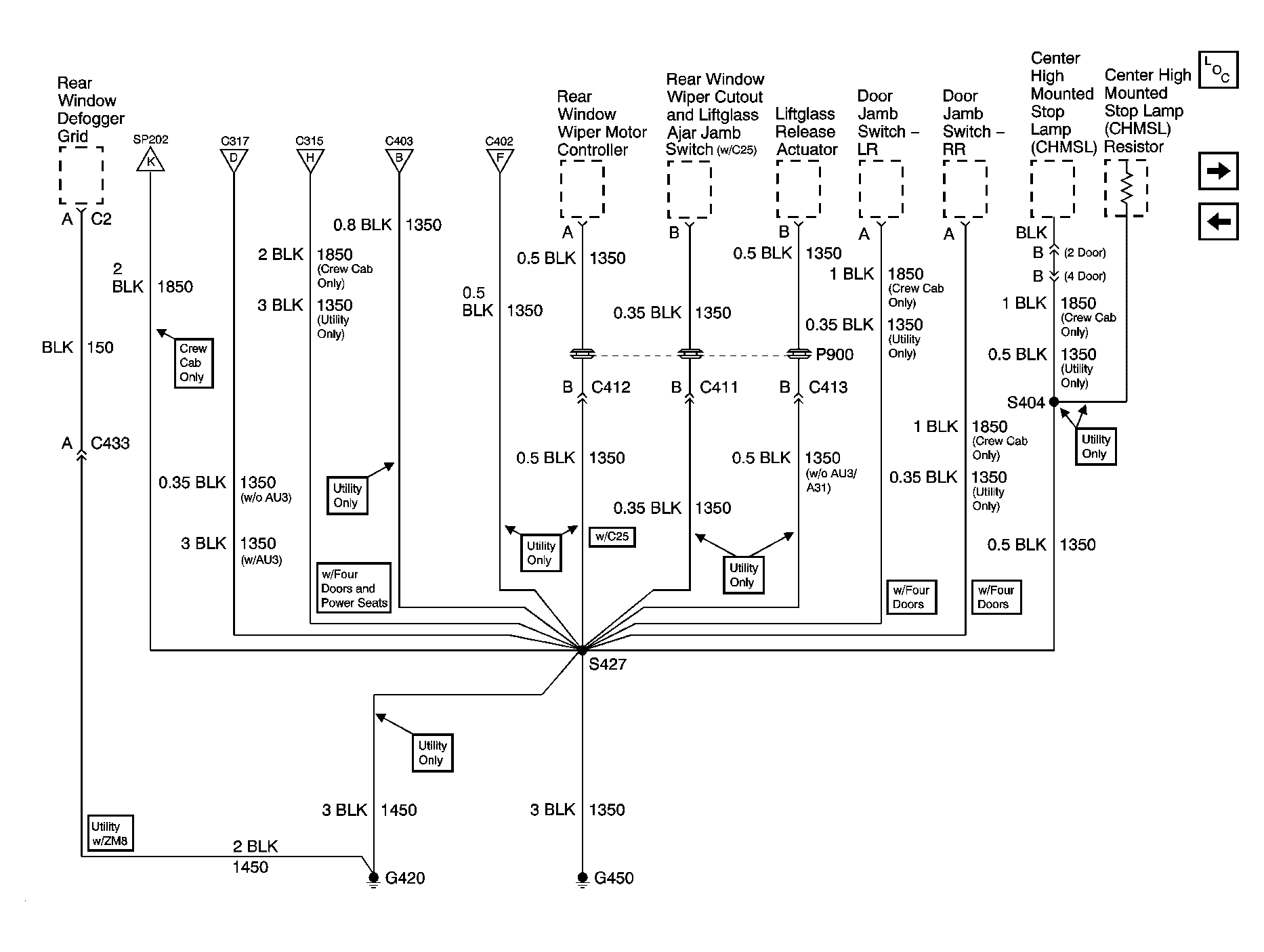

Fig 20: G420, G450 and S427 - Utility and Crew Cab

GM754498

Courtesy of GENERAL MOTORS CORP.

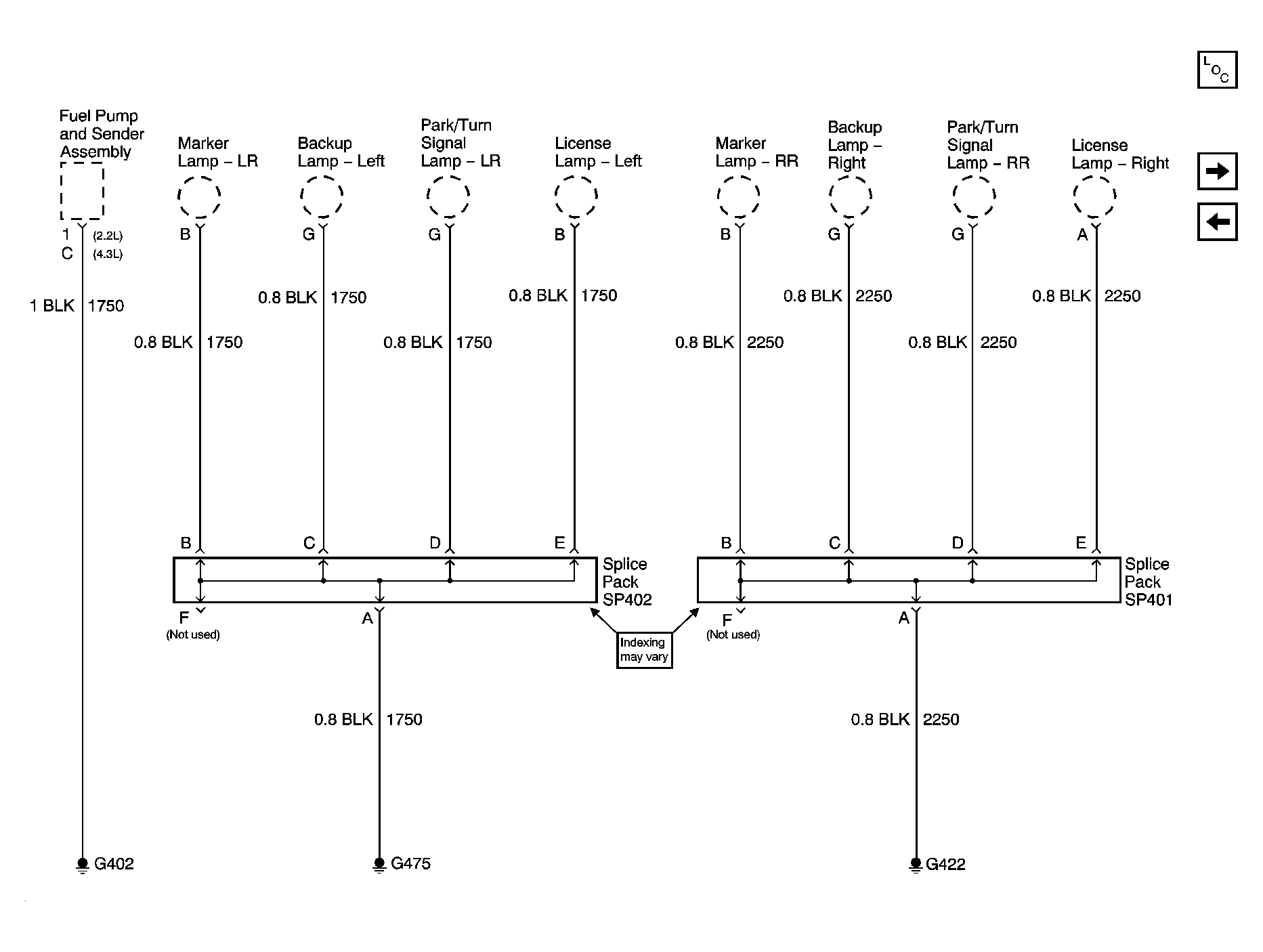

Fig 21: G402, G422 and G475 - Fleetside Pickup

GM754499

Courtesy of GENERAL MOTORS CORP.

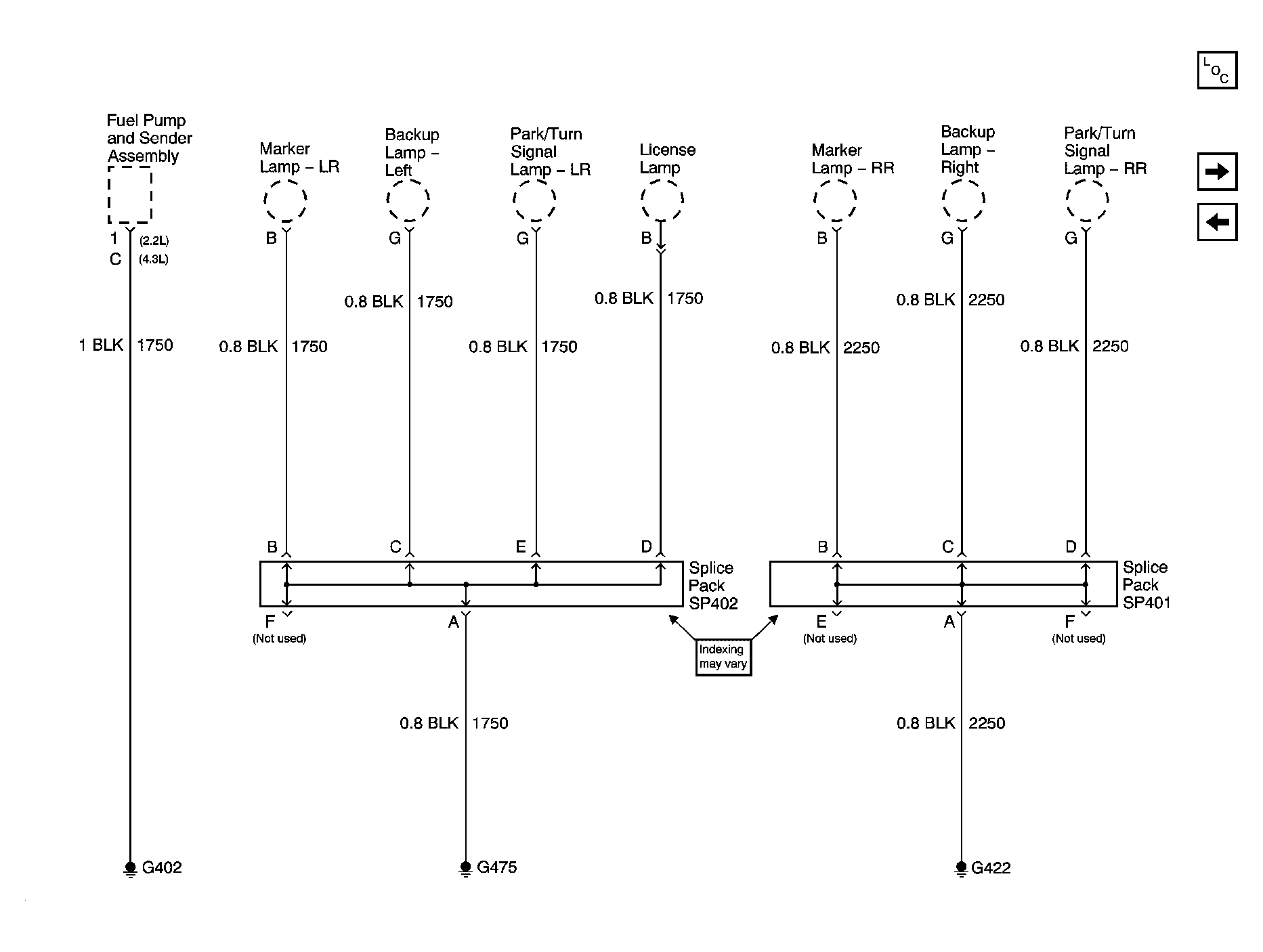

Fig 22: G402, G422 and G475 - Sportside Pickup

GM754501

Courtesy of GENERAL MOTORS CORP.

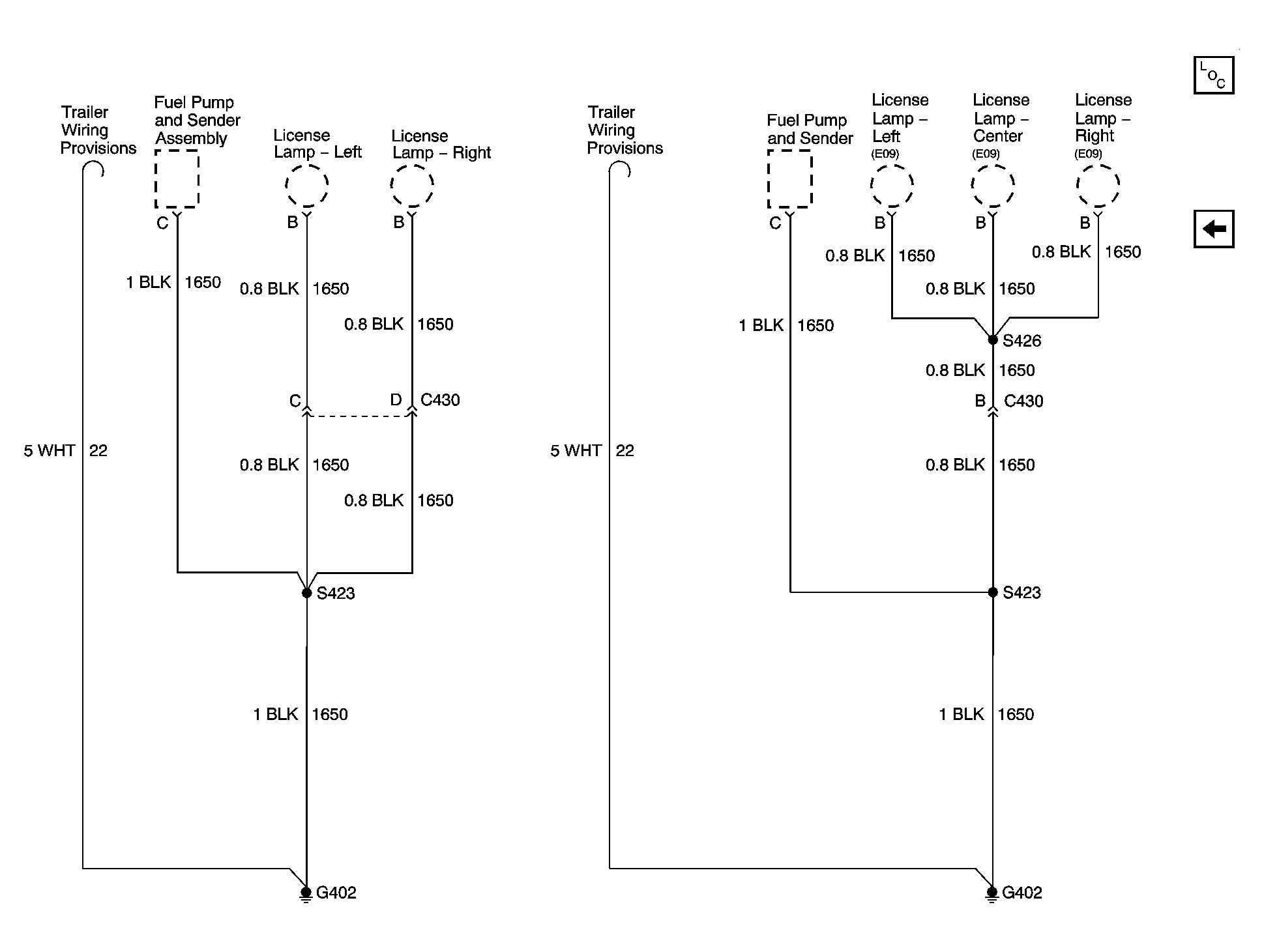

Fig 23: G402 and G421 - Utility

GM858038

Courtesy of GENERAL MOTORS CORP.

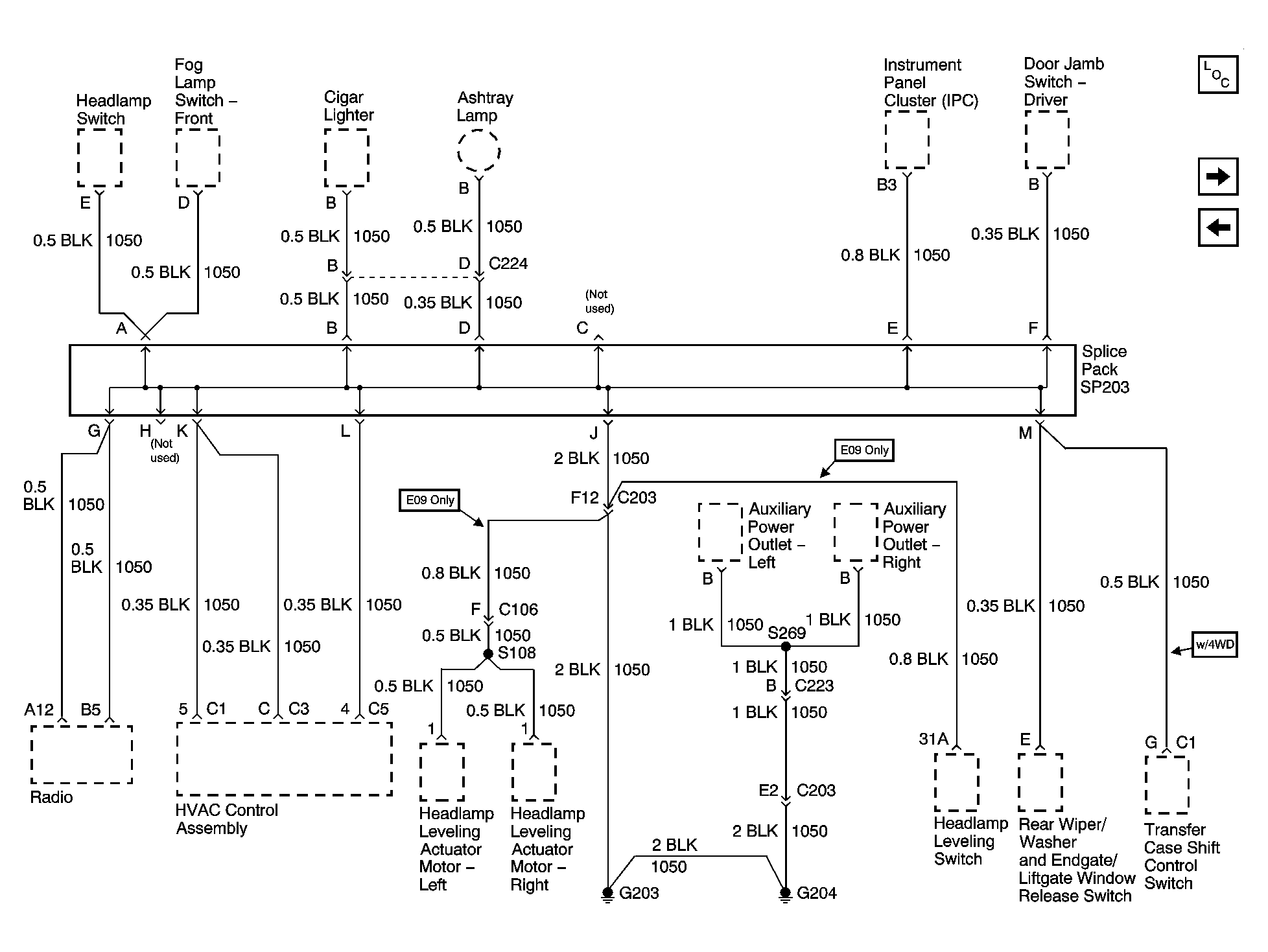

Fig 24: G203 and G204 - Utility

GM992598

Courtesy of GENERAL MOTORS CORP.
