Fuel Hose/Pipes Routing Diagram (Pickup)

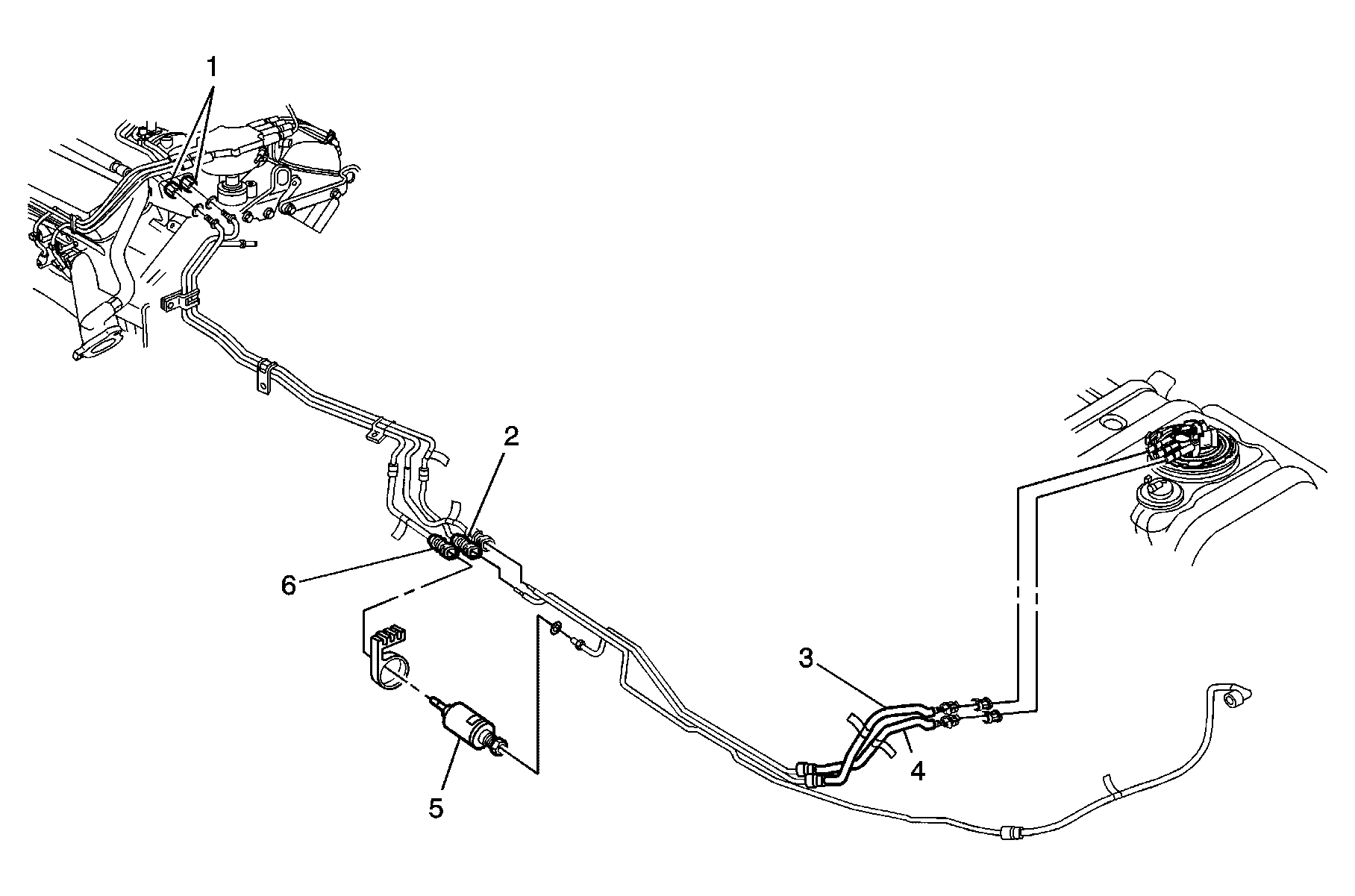

Fig 1: Fuel Hose/Pipes Routing (Pickup)

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Engine Compartment Fuel Pipes
2	Fuel Return Front Pipe
3	Fuel Return Rear Pipe
4	Fuel Feed Rear Pipe
5	Fuel Filter
6	Fuel Feed Front Pipe
