Disassembly Procedure

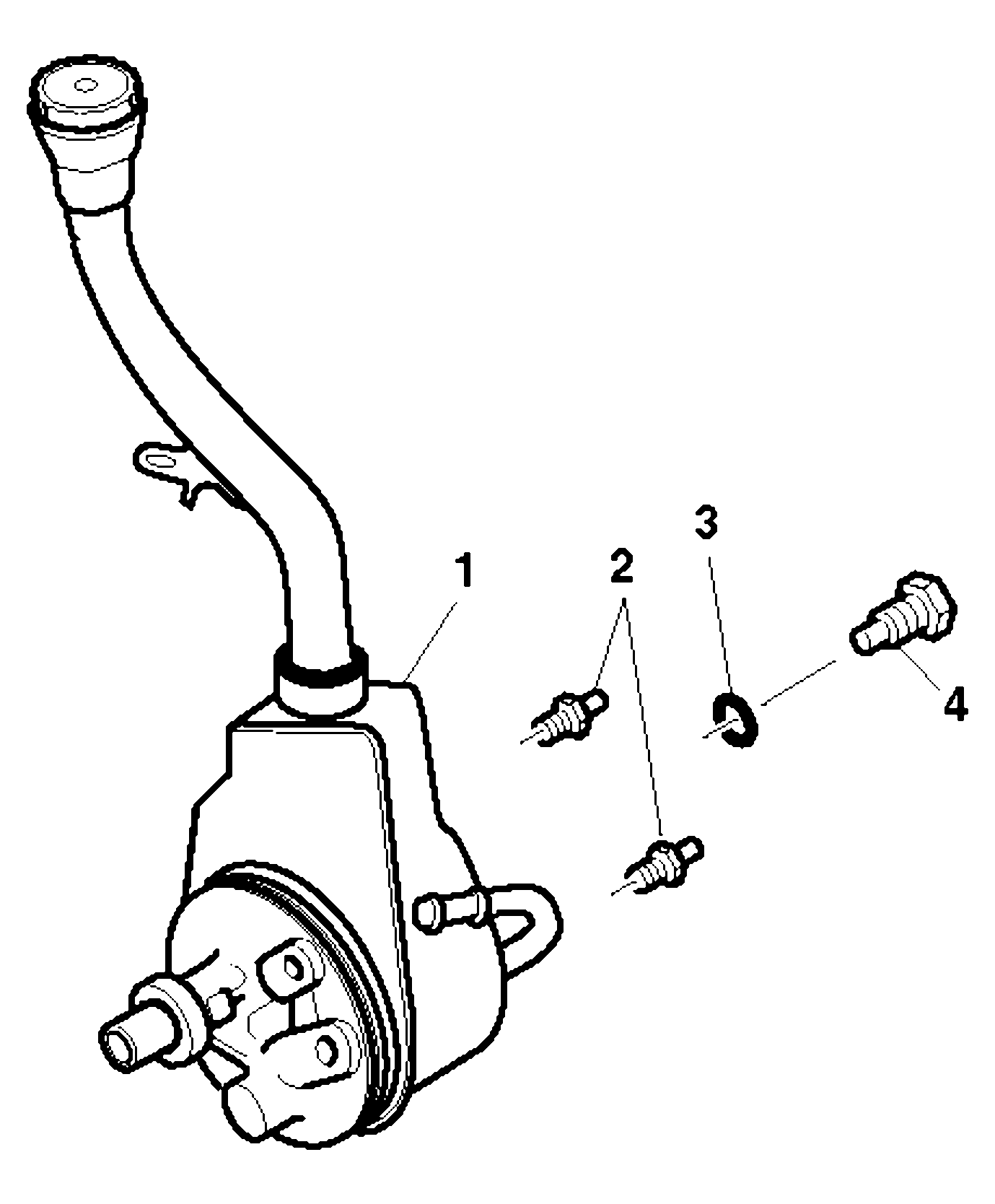

    Fig 1: Locating Power Steering Reservoir Components
    GM447978Courtesy of GENERAL MOTORS CORP.
  1. Drain the power steering fluid from the power steering pump.
  2. Remove the connector and fitting assembly (4).
  3. Remove the O-ring seal (3).
    4. Fig 2: Locating Pump Housing Assembly Components
    GM447980Courtesy of GENERAL MOTORS CORP.
  4. Remove the control valve assembly (3) and the flow control spring (2) from the pump housing assembly (1).
