Range Selector Displays Incorrect Range: Notes

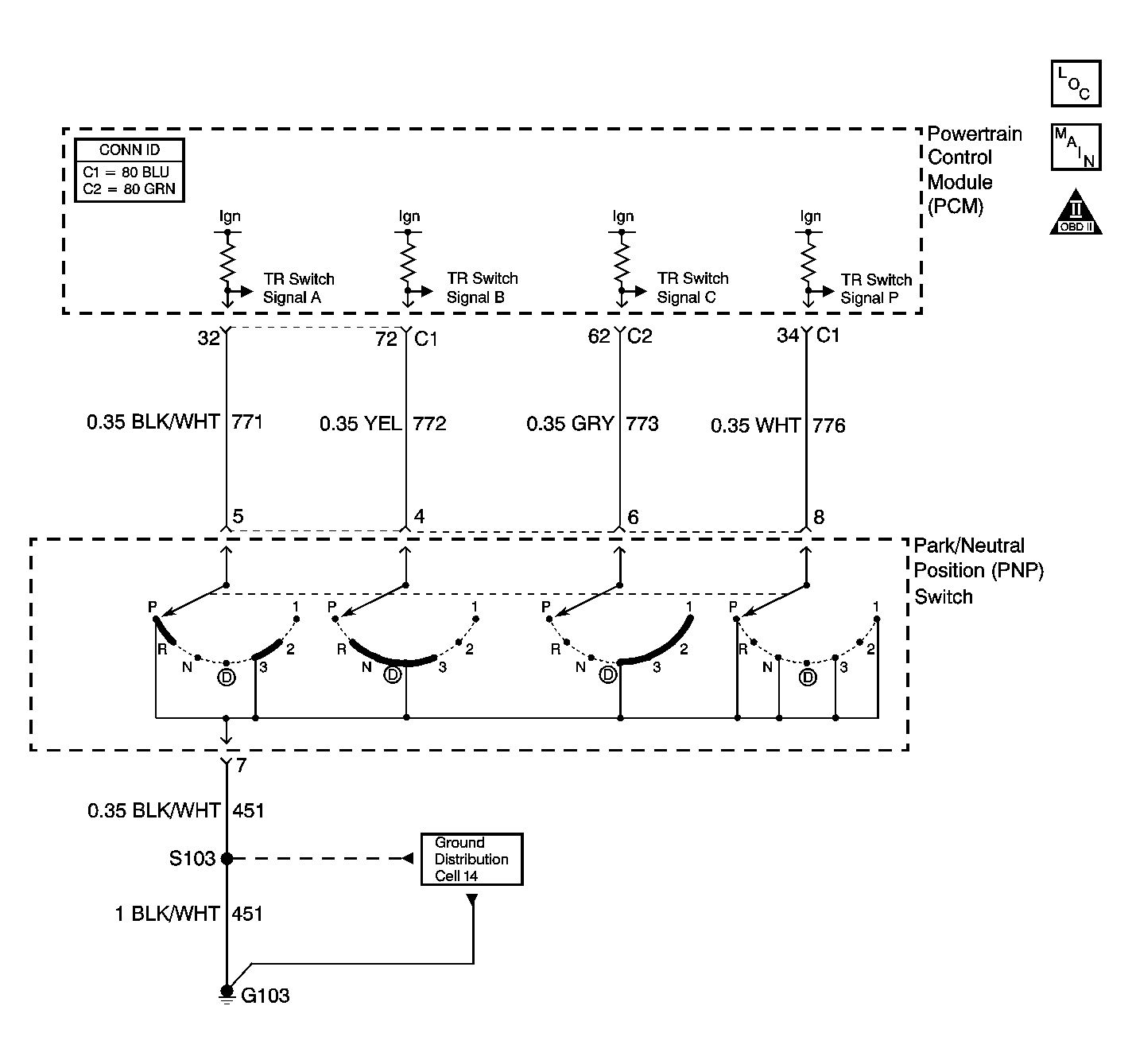

Fig 1: Identifying Park/Neutral Position Switch Schematic
GM1237813Courtesy of GENERAL MOTORS CORP.
