Body Control System Schematics

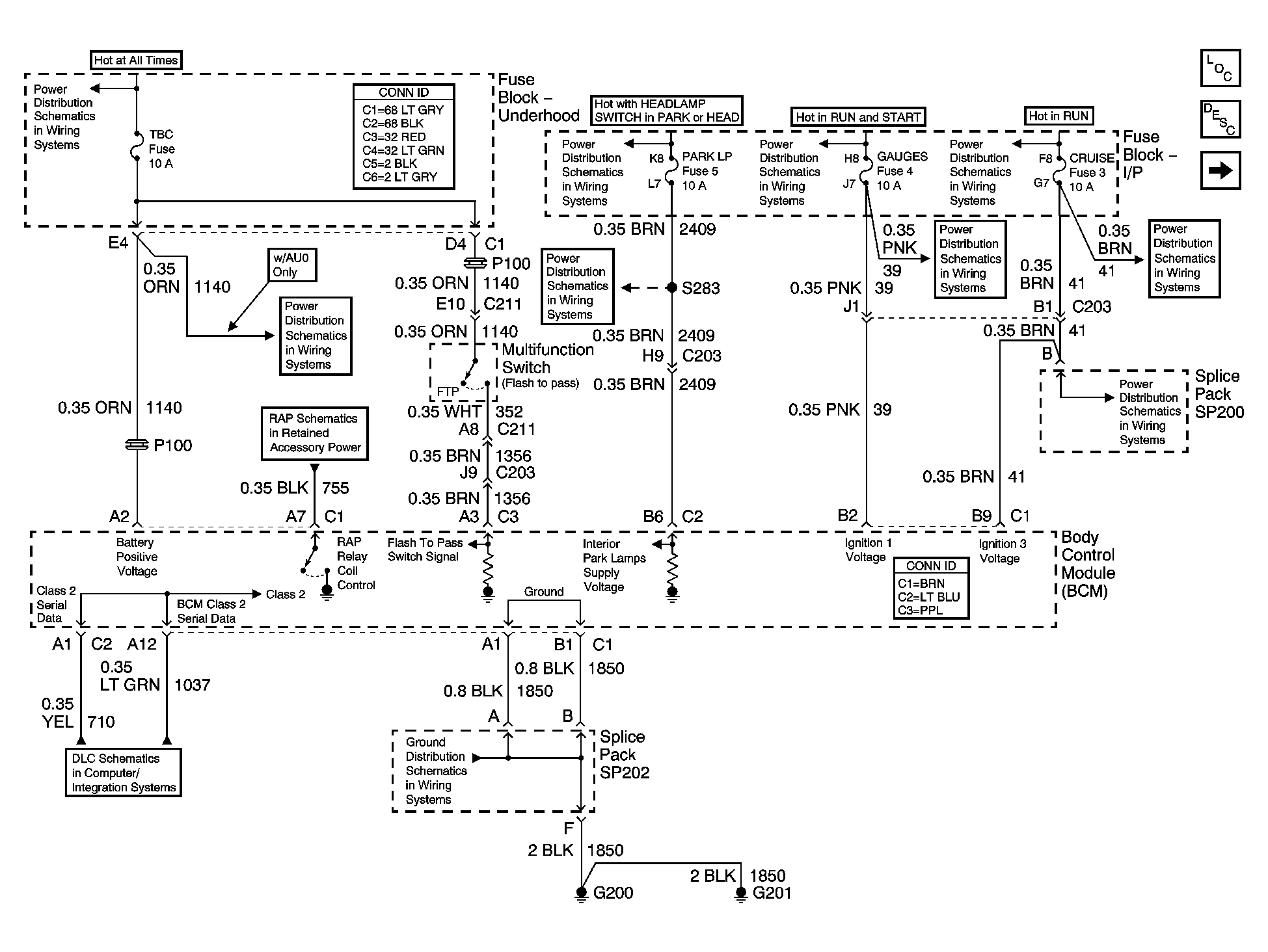

Fig 1: Power and Ground Schematics
GM1509491Courtesy of GENERAL MOTORS CORP.

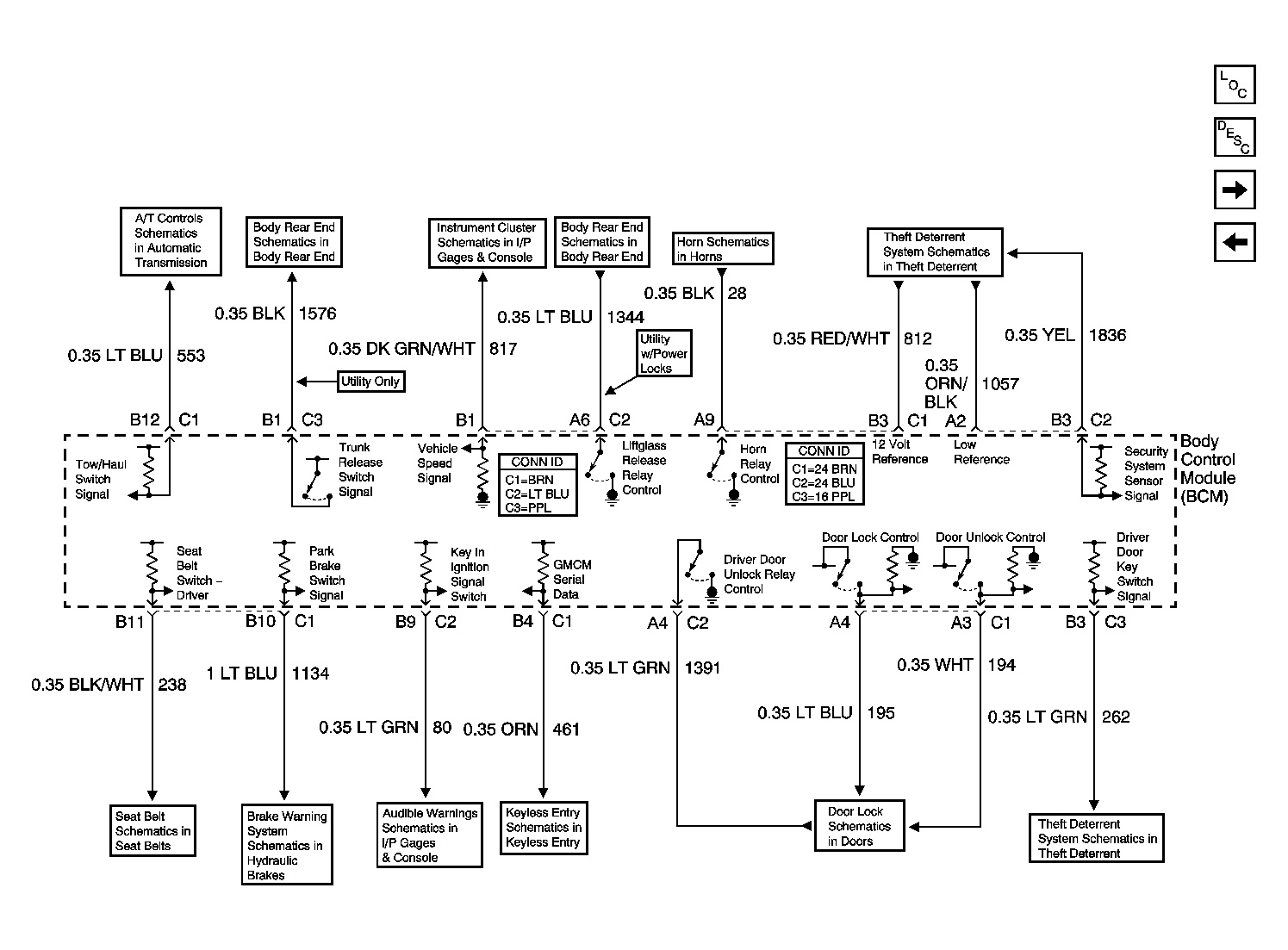

Fig 2: Controlled/Monitored Subsystem References Schematic
GM755675Courtesy of GENERAL MOTORS CORP.

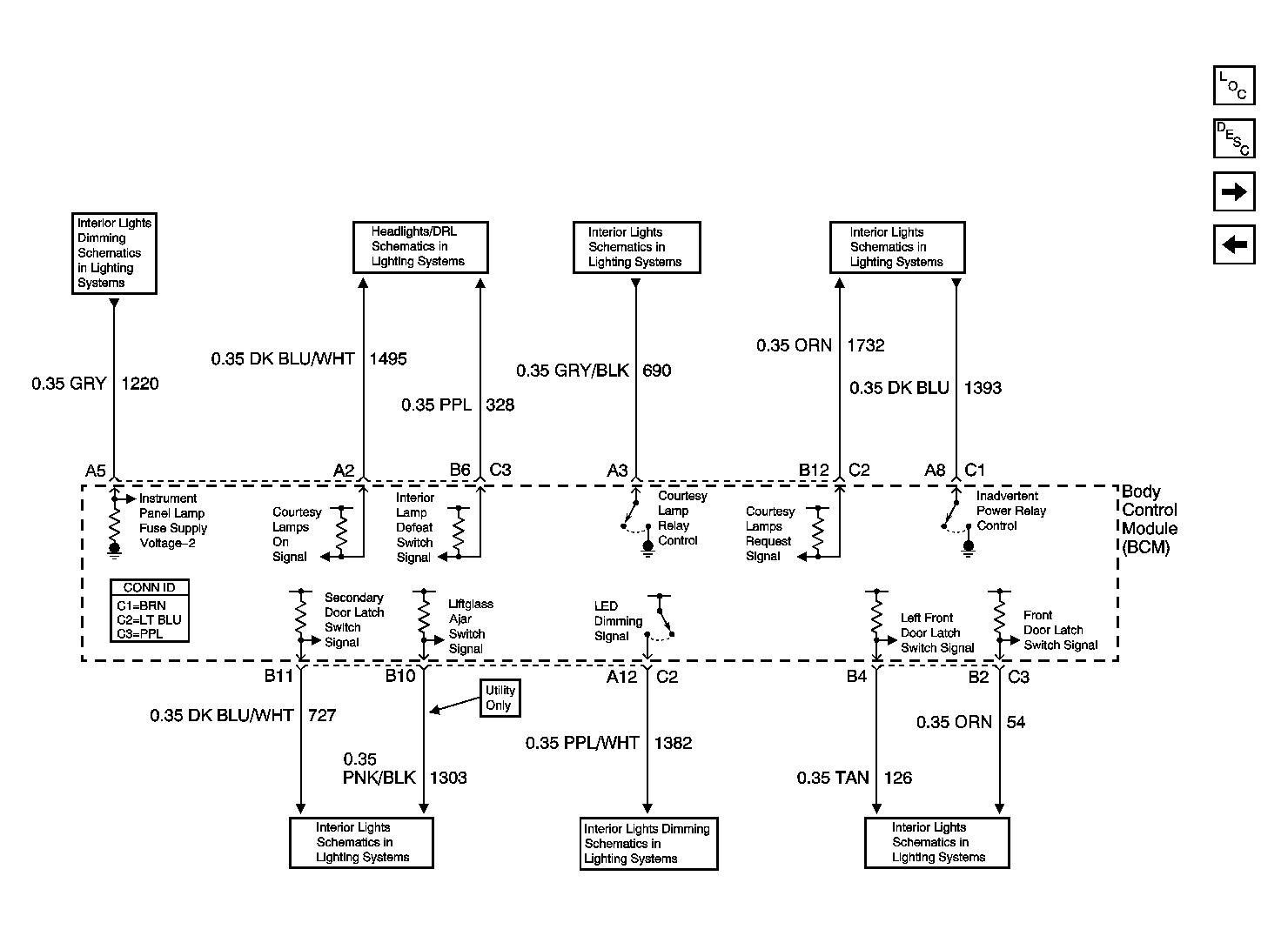

Fig 3: Interior Lights References Schematic
GM755678Courtesy of GENERAL MOTORS CORP.

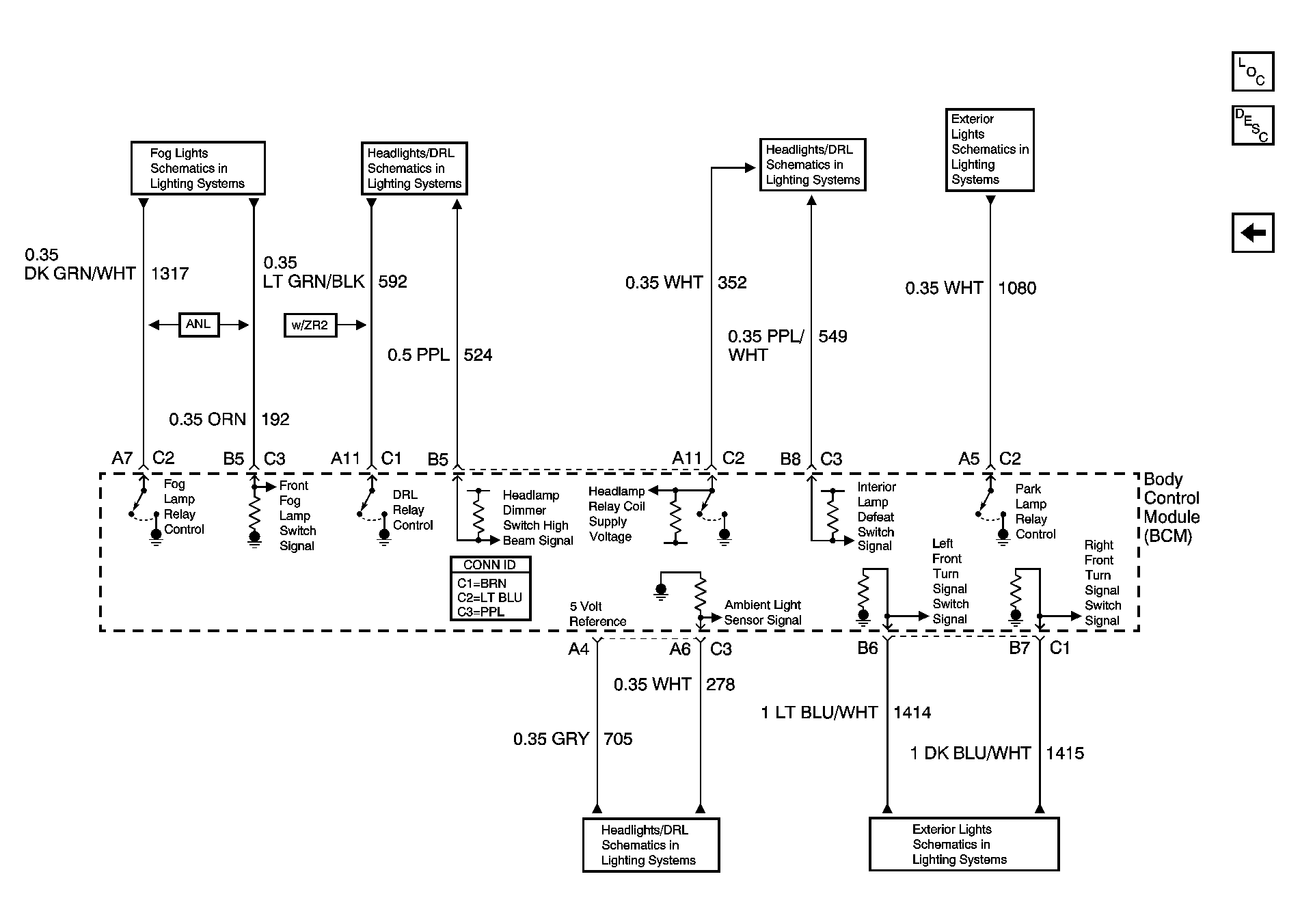

Fig 4: Exterior Lights References Schematics
GM1509493Courtesy of GENERAL MOTORS CORP.
