Installation Procedure

    Fig 1: View Of Wiper Motor
    GM443726Courtesy of GENERAL MOTORS CORP.
    NOTE: Refer to Fastener Notice in Cautions and Notices.
  1. Install the wiper motor onto the vehicle with three screws.

    Tighten:  Tighten the wiper motor mounting screws to 6.5 N.m (57 lb in).

  2. Connect the electrical connector.

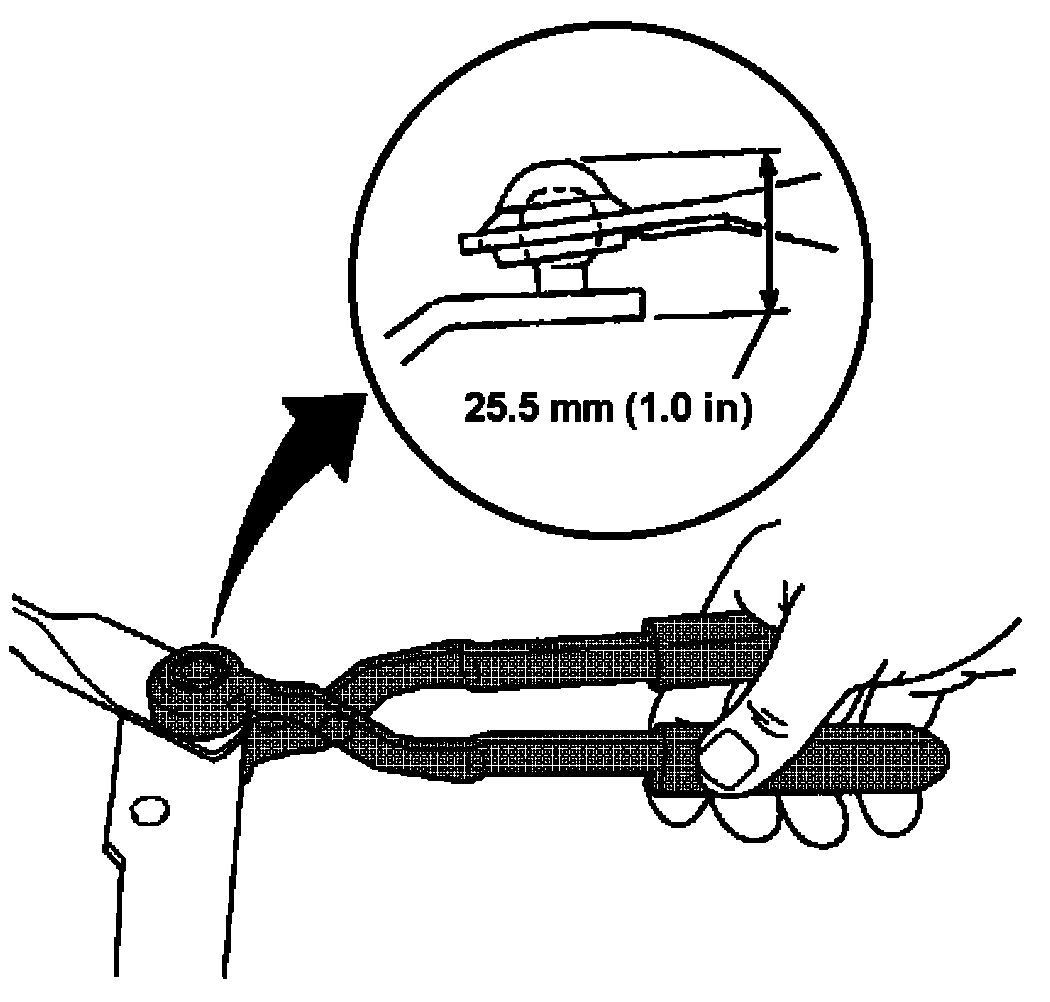

    3. Fig 2: Illustrating Wiper Transmission To Crank Arm Seal Compression
    GM429902Courtesy of GENERAL MOTORS CORP.
    IMPORTANT:
    • Lubricate the socket with white lithium grease (GM P/N 9985885) or equivalent.
    • The wiper transmission must be assembled to the crank arm past the second detent so the seal is compressed to a maximum height of 25.5 mm (1 in).
  3. Install the transmission drive link socket onto the crank arm ball of the wiper motor using the J 39529  . See Special Tools .
  4. Install the air inlet grille panel. Refer to Air Inlet Grille Panel Replacement in Body Front End.
  5. Install the wiper arms. Refer to Wiper Arm Replacement .
