Removal Procedure

  1. Close the window.

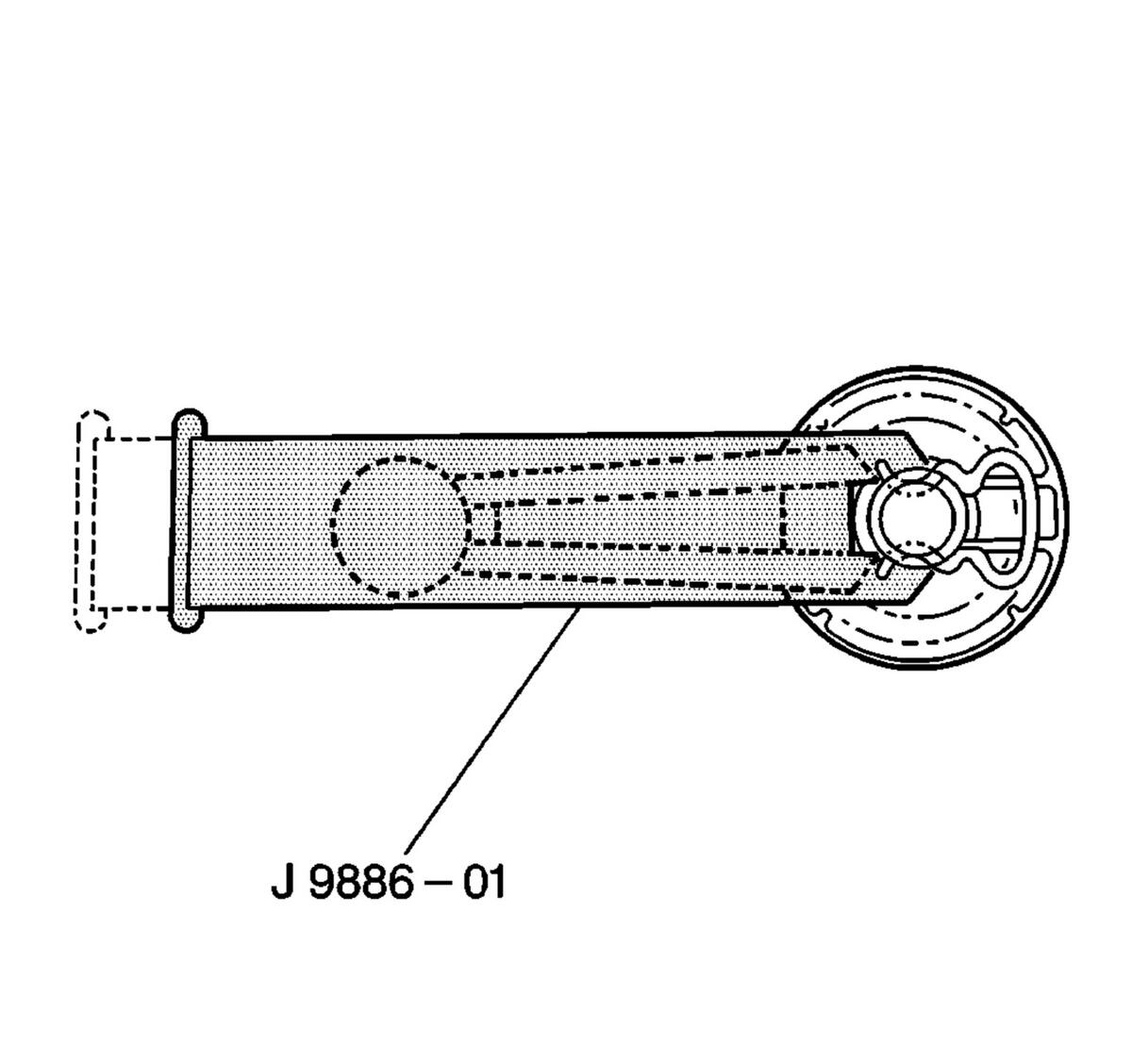

    2. Fig 1: Identifying Door Handle Clip Remover
    GM5087Courtesy of GENERAL MOTORS CORP.
  2. Insert the J 9886-01  between the handle and the bearing plate. See Special Tools .
  3. Align the J 9886-01  with the handle. See Special Tools .
  4. Push the J 9886-01  in order to disengage the clip. See Special Tools .
  5. Pull the handle from the door.
    6. Fig 2: View Of Window Regulator Handle
    GM294402Courtesy of GENERAL MOTORS CORP.
  6. Remove the window regulator handle from the door.
  7. Remove the bearing plate from the door.
