Outside Mirror Schematics

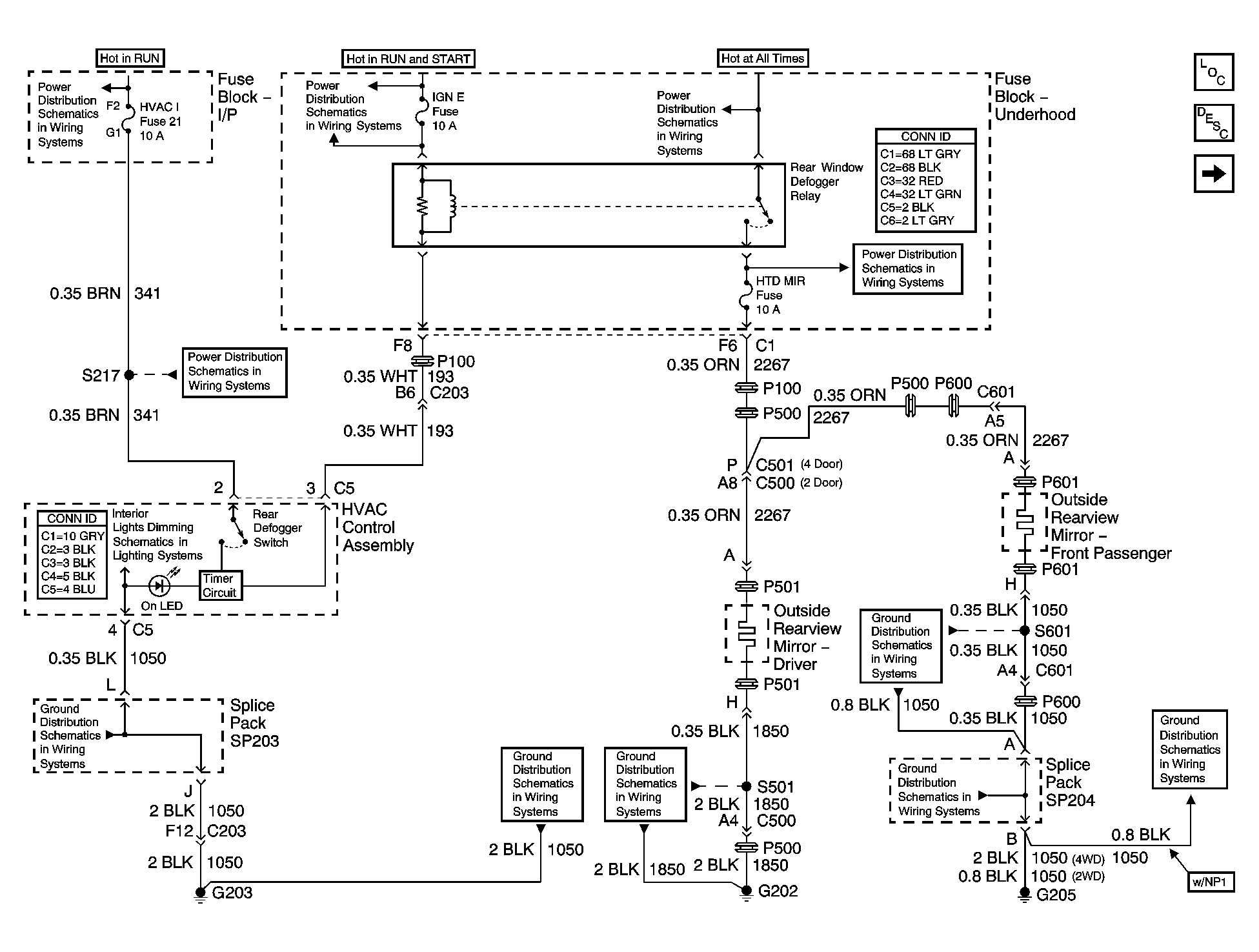

Fig 1: Heated Mirrors Schematic

GM1509480

Courtesy of GENERAL MOTORS CORP.

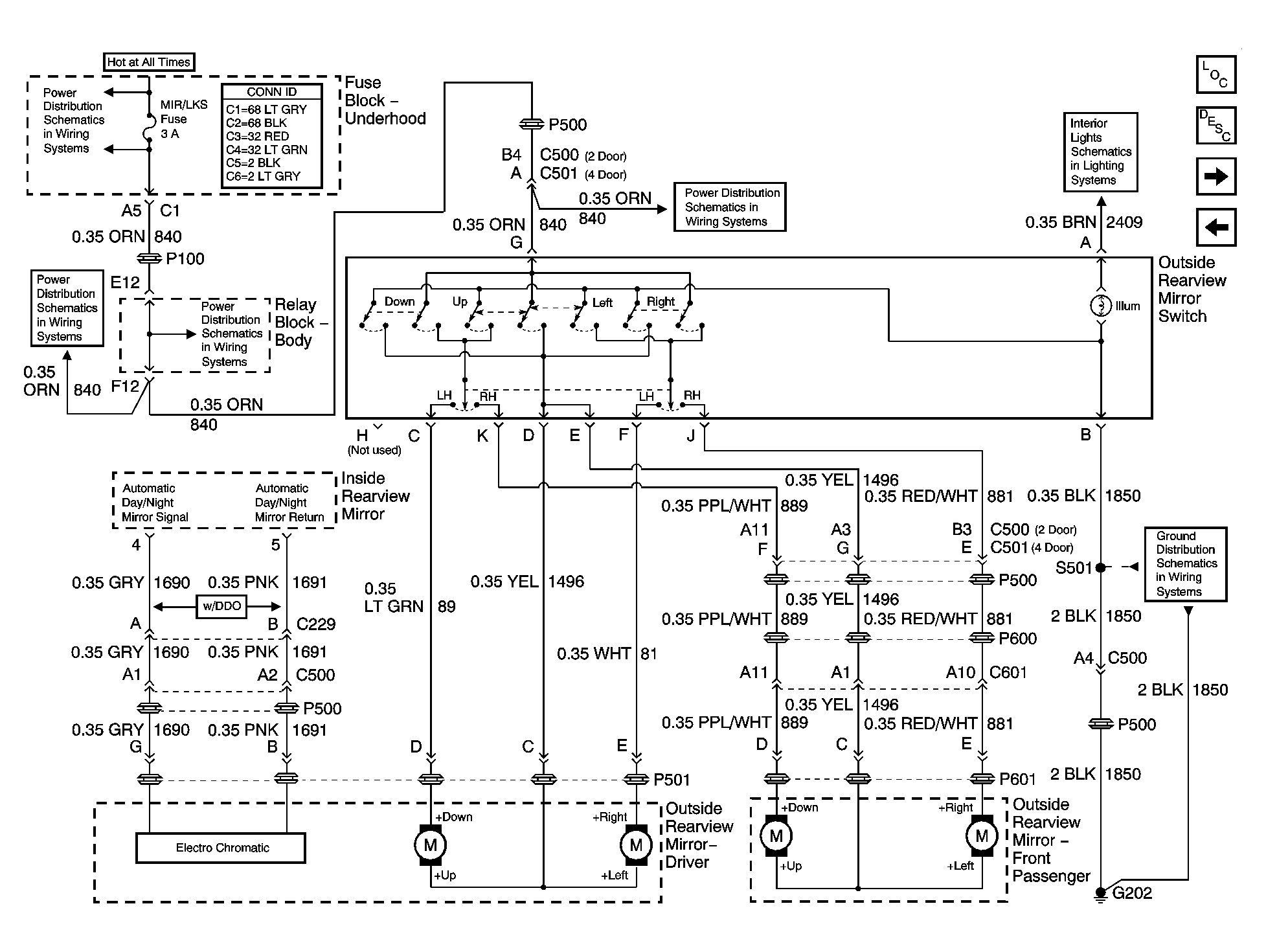

Fig 2: Outside Rearview Mirror Switch Schematic

GM887066

Courtesy of GENERAL MOTORS CORP.

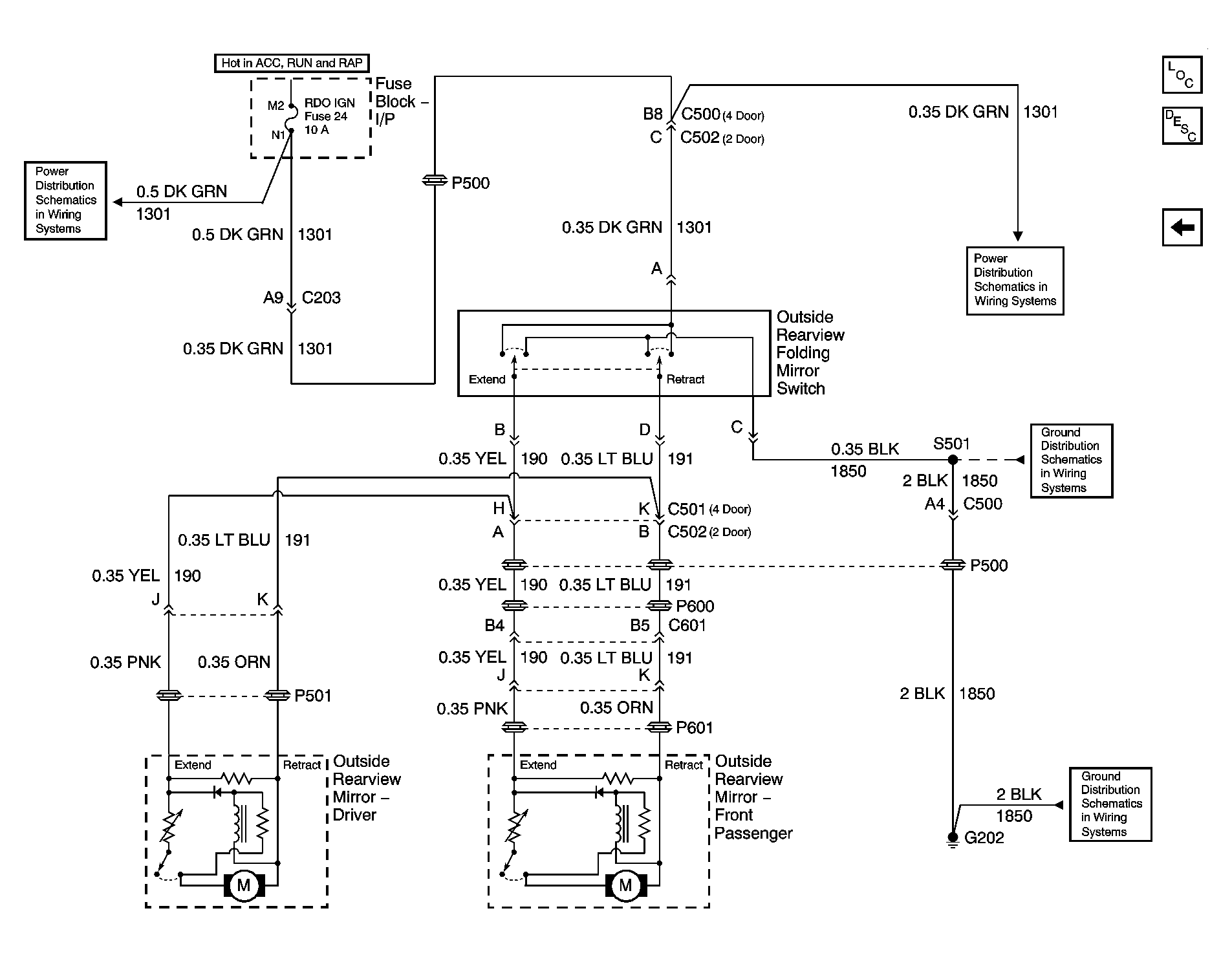

Fig 3: Folding Mirrors Schematic - Export Only

GM887086

Courtesy of GENERAL MOTORS CORP.
