Horns Component Views

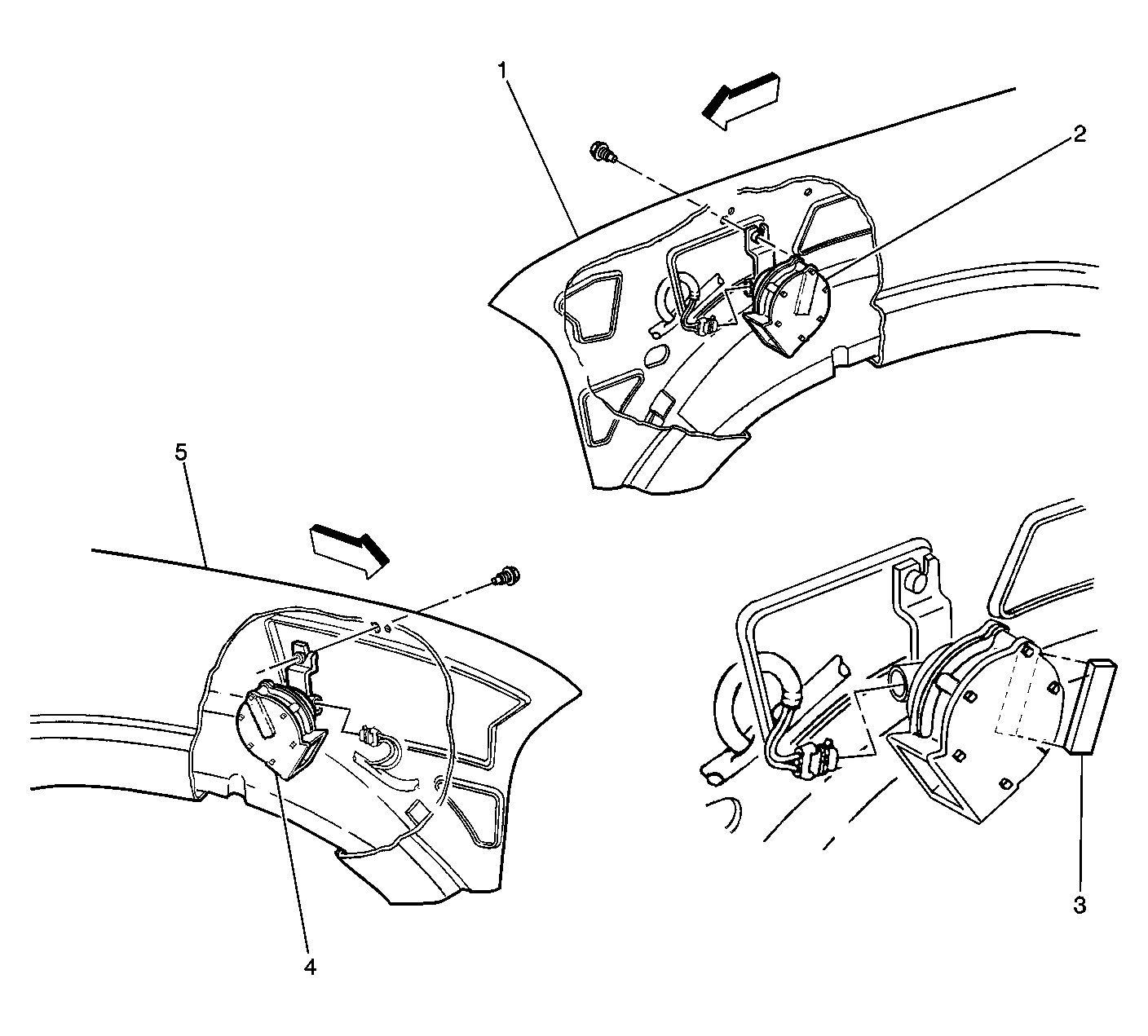

Fig 1: Horns
GM354766Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 Fender, LF
2 Horn - Left
3 Insulator
4 Horn - Right
5 Fender, RF

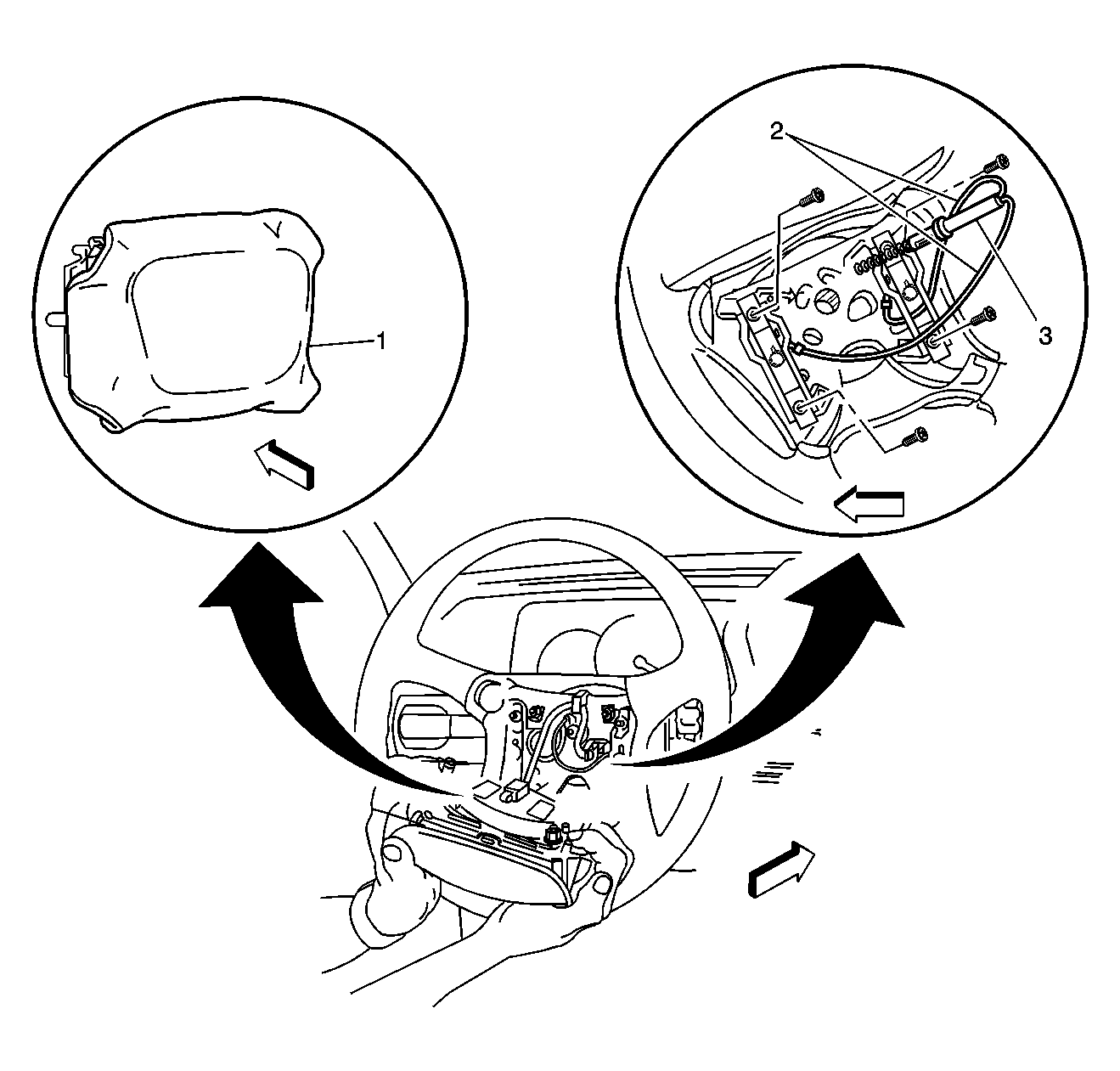

Fig 2: Inflatable Restraint Steering Wheel Module/Horn Pad
GM681636Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 Inflatable Restraint Steering Wheel Module/Horn Pad
2 Horn Switch Wires
3 Horn Switch
