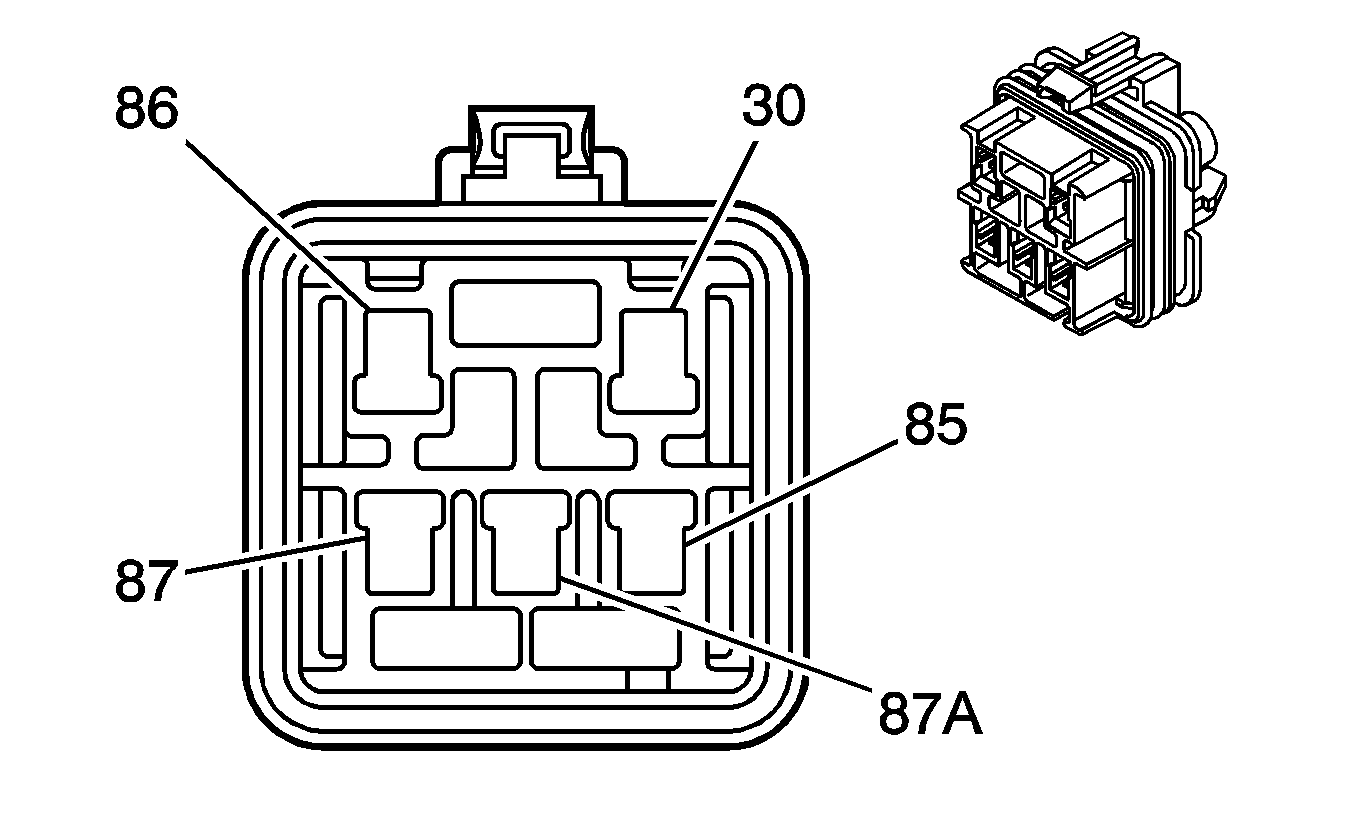

Blower Motor Relay Connector End View

Blower Motor Relay

Courtesy of GENERAL MOTORS CORP.
Connector Part Information		12110539 5-Way F Metri-Pack 280 Series, Flex Lock (BLK)
Pin	Wire Color	Circuit No.	Function
30	PPL	65	Blower Motor Supply Voltage
85	BLK	850	Ground
86	ORN	52	High Blower Motor Control
87	ORN	540	Battery Positive Voltage
87A	DK BLU	101	Blower Motor Supply Voltage
