Driver Information System Schematics
Driver Information System Schematics

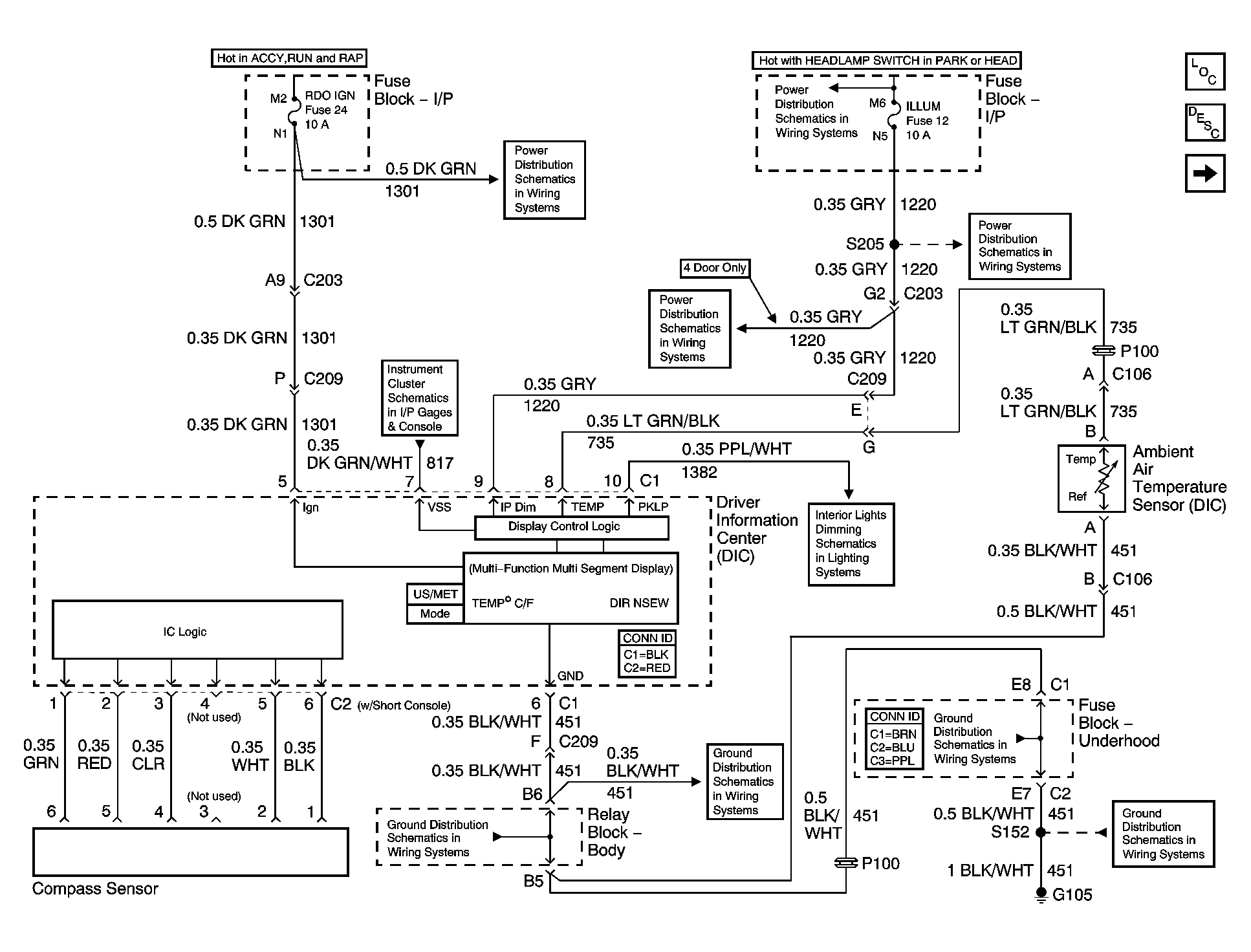

Fig 1: Power and Ground - w/o Trip Computer
Courtesy of GENERAL MOTORS CORP.

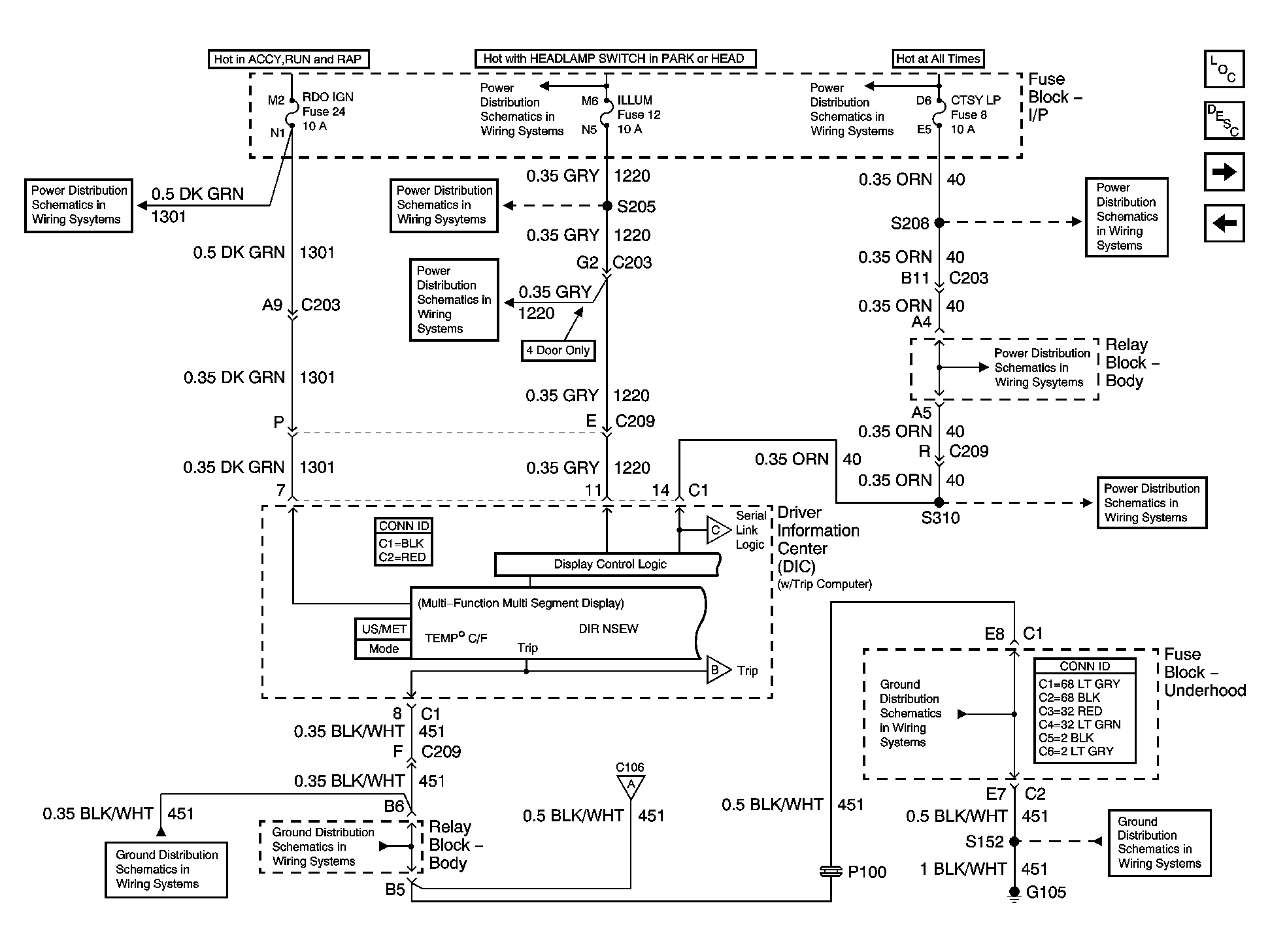

Fig 2: Power and Ground - w/ Trip Computer
Courtesy of GENERAL MOTORS CORP.

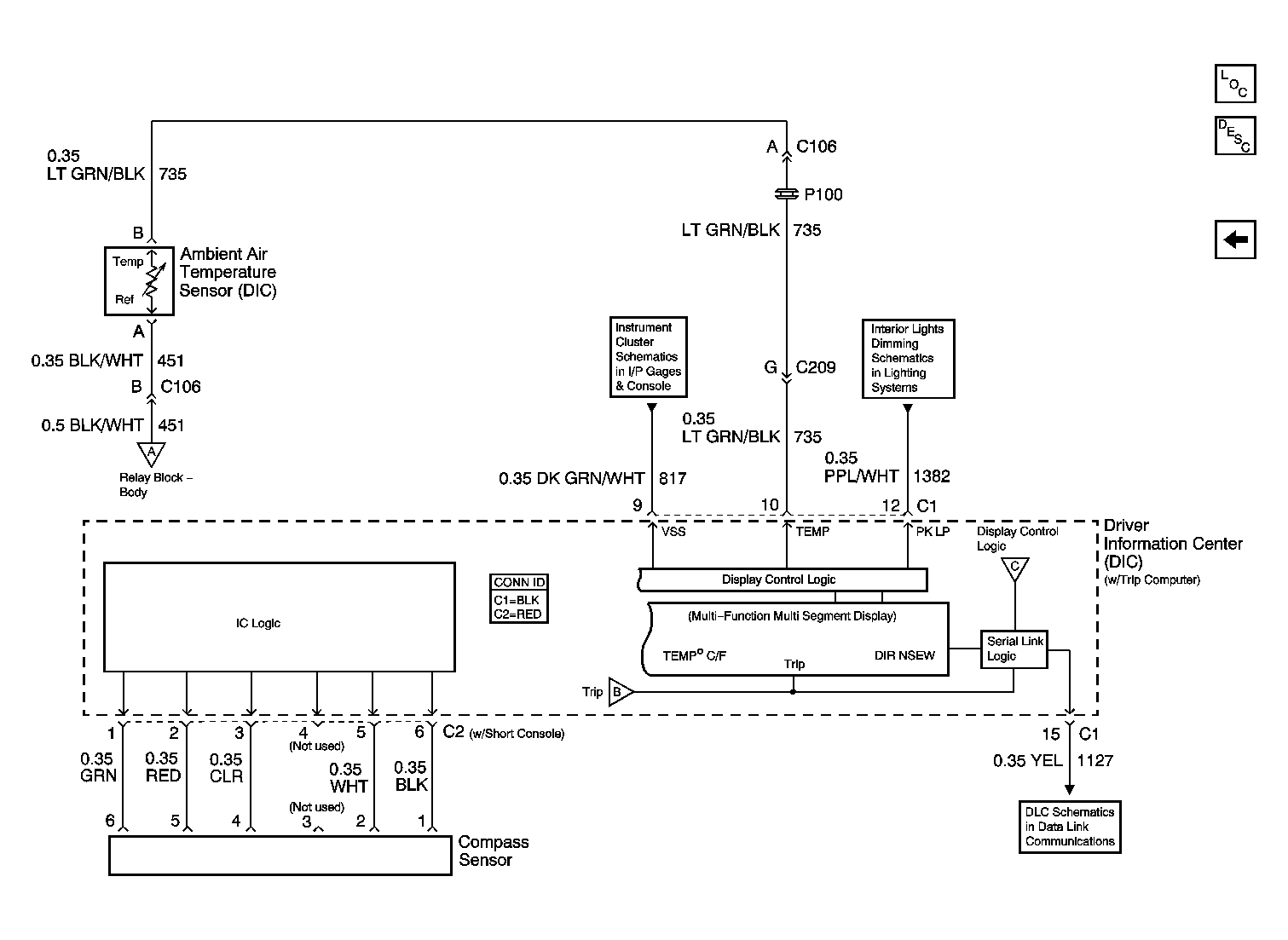

Fig 3: Air Temperature Sensor - Outside - w/ Trip Computer
Courtesy of GENERAL MOTORS CORP.
