Fuel Hose/Pipes Routing Diagram

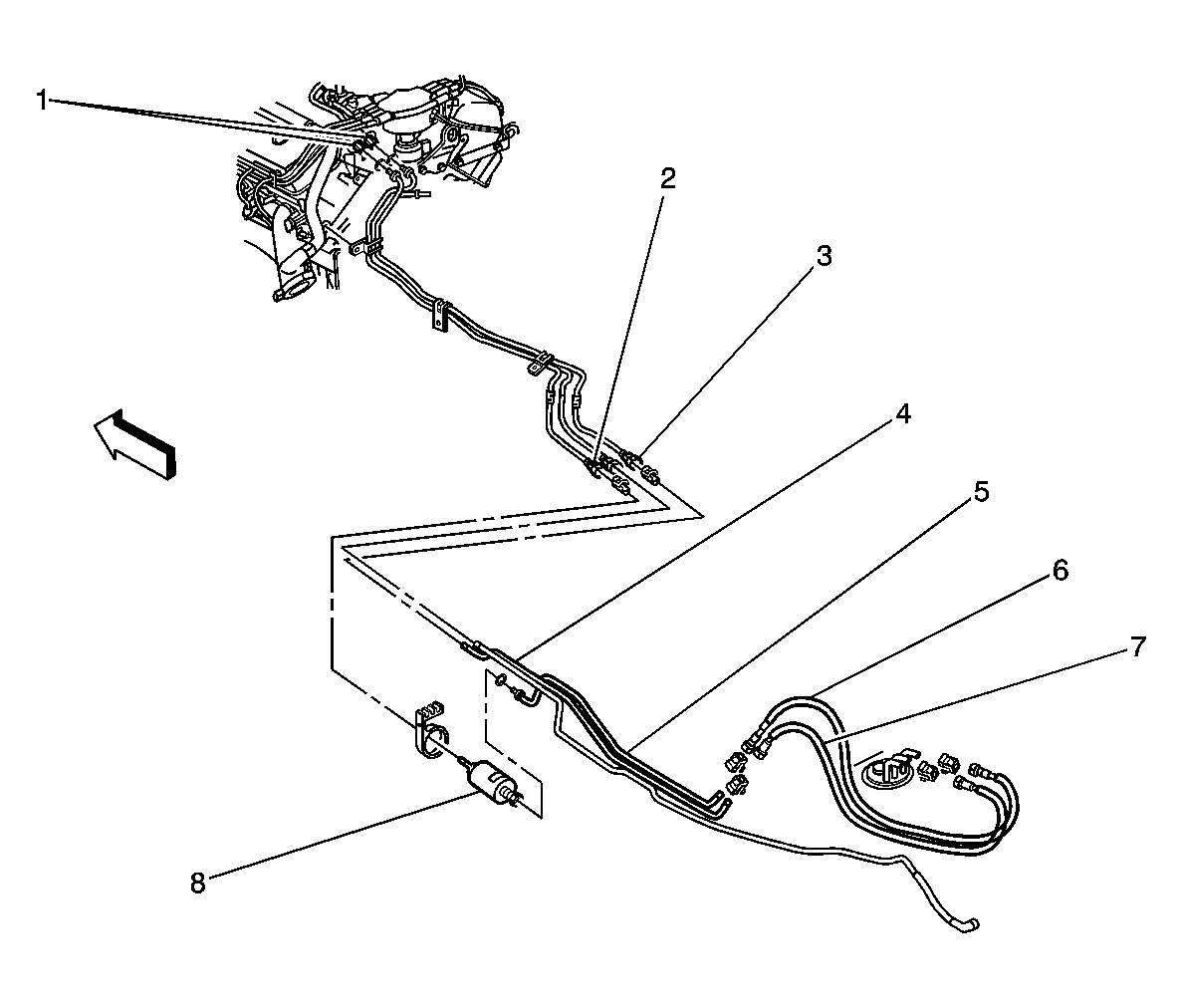

Fig 1: Fuel Hose/Pipes Routing Diagram - 2 Door Utility

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Engine Compartment Fuel Pipes
2	Fuel Feed Front Pipe
3	Fuel Return Front Pipe
4	Fuel Return Rear Pipe
5	Fuel Feed Rear Pipe
6	Fuel Feed Rear Pipe
7	Fuel Return Rear Pipe
8	Fuel Filter
