Installation Procedure

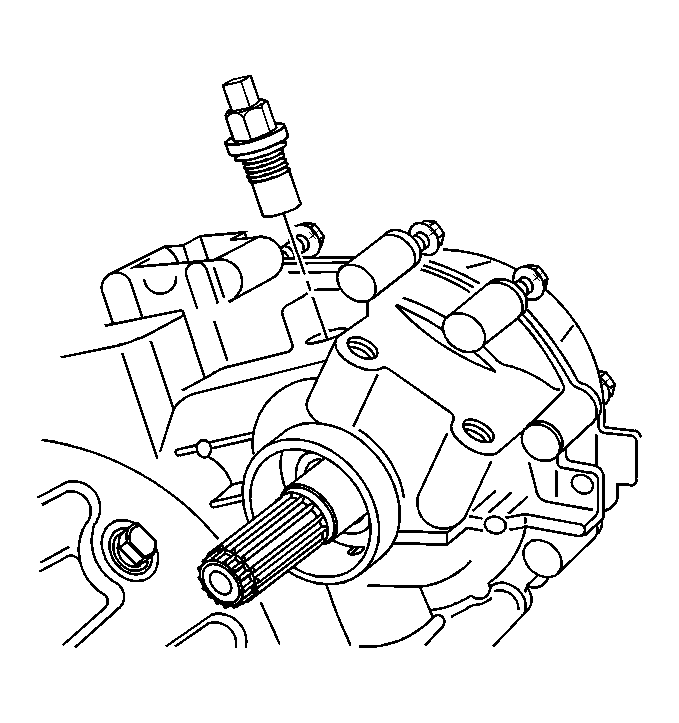

Fig 1: Identifying Transfer Case Front Speed Sensor

Courtesy of GENERAL MOTORS CORP.

NOTE: Refer to Fastener Notice in Cautions and Notices.

Install the transfer case speed sensor.
Tighten: Tighten the transfer case speed sensor to 15 N.m (11 lb ft).

Fig 2: Front Speed Sensor Electrical Connector

Courtesy of GENERAL MOTORS CORP.

Install the transfer case speed sensor electrical connector.
Install the front propeller shaft. Refer to Propeller Shaft Replacement - Front in Propeller Shaft.
Install the transfer case shield to the vehicle. Refer to Transfer Case Shield Replacement .
Lower the vehicle. Refer to Lifting and Jacking the Vehicle in General Information.
