Navigation Information Display Opening Cover Replacement

WARNING: This page is about a different car, the 2013 Cadillac CTS. However, it is still accessible from the selected car via links, so may be relevant.

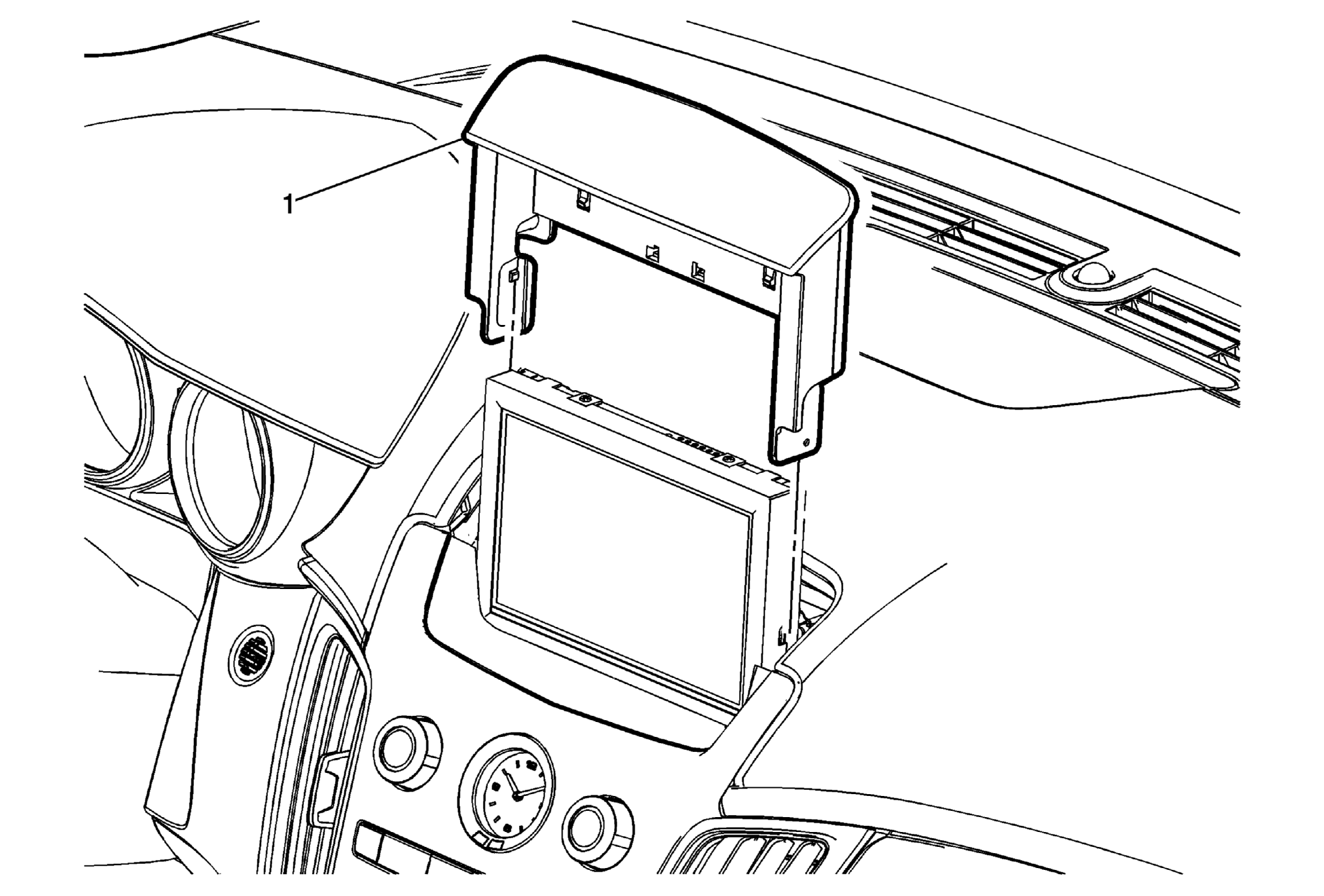

Fig 1: Navigation Information Display Opening Cover

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
1	Navigation Information Display Opening Cover Assembly Procedures Position the Radio and Video and Audio Disc Player and Navigational Information Display in the up position. Slide a flat-bladed plastic trim tool between the information display screen and the navigation information display opening cover along each side to release the two tabs retaining the bezel to the display screen.

Callout

Component Name

Navigation Information Display Opening Cover Assembly

Procedures

Position the Radio and Video and Audio Disc Player and Navigational Information Display in the up position.
Slide a flat-bladed plastic trim tool between the information display screen and the navigation information display opening cover along each side to release the two tabs retaining the bezel to the display screen.
