SIR Component Views

WARNING: This page is about a different car, the 2007 Pontiac G6. However, it is still accessible from the selected car via links, so may be relevant.

Fig 1: Locating Inflatable Restraint Front End Sensor - Right & Left (Front Impact Bar)

GM1265832

Courtesy of GENERAL MOTORS CORP.

Callouts For Fig 1

Callout	Component Name
1	Inflatable Restraint Front End Sensor - Right
2	Inflatable Restraint Front End Sensor - Left

Fig 2: Locating Inflatable Restraint Steering Wheel Module Coil (Top of Steering Column)

GM1406104

Courtesy of GENERAL MOTORS CORP.

Callouts For Fig 2

Callout	Component Name
1	Inflatable Restraint Steering Wheel Module Coil
2	Ignition Switch
3	Windshield Wiper/Washer Switch
4	Turn Signal/Multifunction Switch

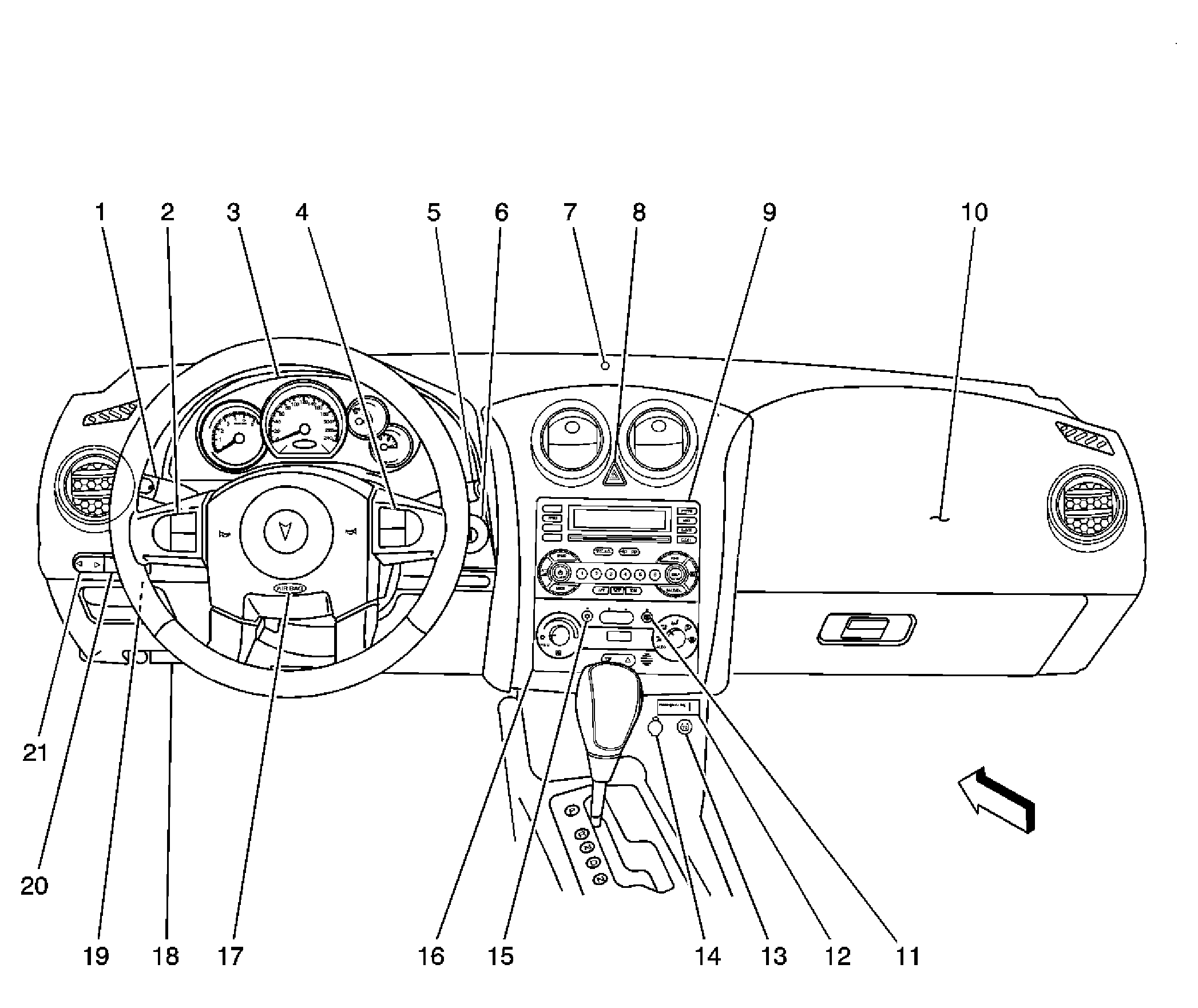

Fig 3: Locating Instrument Panel Components

GM1647821

Courtesy of GENERAL MOTORS CORP.

Callouts For Fig 3

Callout	Component Name
1	Turn Signal/Multifunction Switch
2	Steering Wheel Controls - Left
3	Instrument Panel Cluster (IPC)
4	Steering Wheel Controls - Right
5	Windshield Wiper/Washer Switch
6	Ignition Switch
7	Ambient Light Sensor (C60), Sunload Sensor (C68)
8	Hazard Switch
9	Radio
10	Inflatable Restraint I/P Module
11	Rear Window Defogger Switch
12	Inflatable Restraint PASSENGER AIR BAG ON/OFF Indicator
13	Traction Control Switch (NW7/NW9)
14	Cigar Lighter
15	A/C Request Switch (C60)
16	HVAC Control Module
17	Inflatable Restraint Steering Wheel Module
18	Data Link Connector (DLC)
19	Fog Lamp Switch (T96)
20	I/P Dimmer Switch
21	Adjustable Pedal Position Switch (JF4)

Fig 4: Locating SIR Side Impact Sensor (Left Door - Typical)

GM1265833

Courtesy of GENERAL MOTORS CORP.

Callouts For Fig 4

Callout	Component Name
1	Inflatable Restraint Side Impact Sensor - Left (AY0) (Right Similar)

Fig 5: Locating SIR Sensing & Diagnostic Module (Under Center Console)

GM1265831

Courtesy of GENERAL MOTORS CORP.

Callouts For Fig 5

Callout	Component Name
1	C310
2	Inflatable Restraint Sensing and Diagnostic Module (SDM)

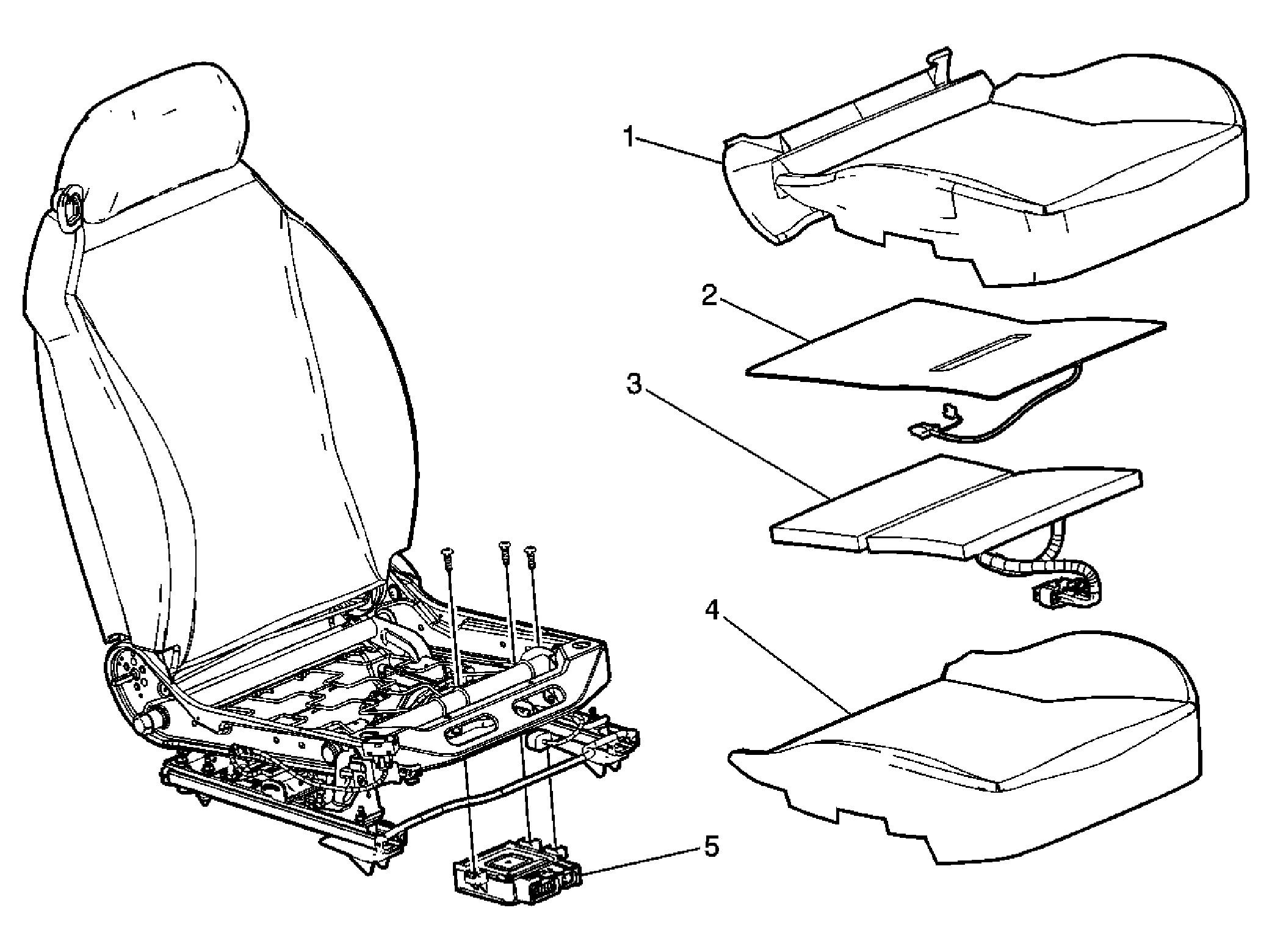

Fig 6: Locating SIR Passenger Presence System Modules & Sensor (Front Passenger Seat)

GM1566458

Courtesy of GENERAL MOTORS CORP.

Callouts For Fig 6

Callout	Component Name
1	Inflatable Restraint Passenger Presence System (PPS) Module
2	Heated Seat Element - Passenger Cushion (KA1)
3	Inflatable Restraint Passenger Presence System (PPS) Sensor
4	Seat Cushion Pad - Passenger
5	Inflatable Restraint Passenger Presence System (PPS) Module

Fig 7: Locating Side Impact Modules (Front Seats)

GM1522489

Courtesy of GENERAL MOTORS CORP.

Callouts For Fig 7

Callout	Component Name
1	Inflatable Restraint Side Impact Module - Left (AY0)
2	Inflatable Restraint Side Impact Module - Right (AY0)

Fig 8: Locating Left SIR Seat Belt Pretensioner (Lower Left B-Pillar)

GM1406107

Courtesy of GENERAL MOTORS CORP.

Callouts For Fig 8

Callout	Component Name
1	Inflatable Restraint Seat Belt Pretensioner - LF

Fig 9: Locating Right SIR Seat Belt Pretensioner (Lower Right B-Pillar)

GM1406109

Courtesy of GENERAL MOTORS CORP.

Callouts For Fig 9

Callout	Component Name
1	Inflatable Restraint Seat Belt Pretensioner - RF

Fig 10: Locating Left SIR Roof Rail Module (Inside of Left C-Pillar - Sedan)

GM1265823

Courtesy of GENERAL MOTORS CORP.

Callouts For Fig 10

Callout	Component Name
1	Inflatable Restraint Roof Rail Module - Left (AY0)
2	C351 (UE1)
3	Rear Window Defogger Grid - C1

Fig 11: Locating Right SIR Roof Rail Module (Inside of Right C-Pillar - Sedan)

GM1265829

Courtesy of GENERAL MOTORS CORP.

Callouts For Fig 11

Callout	Component Name
1	Rear Window Defogger Grid, C2
2	G301
3	Inflatable Restraint Roof Rail Module - Right (AY0)
