Power Moding Schematics

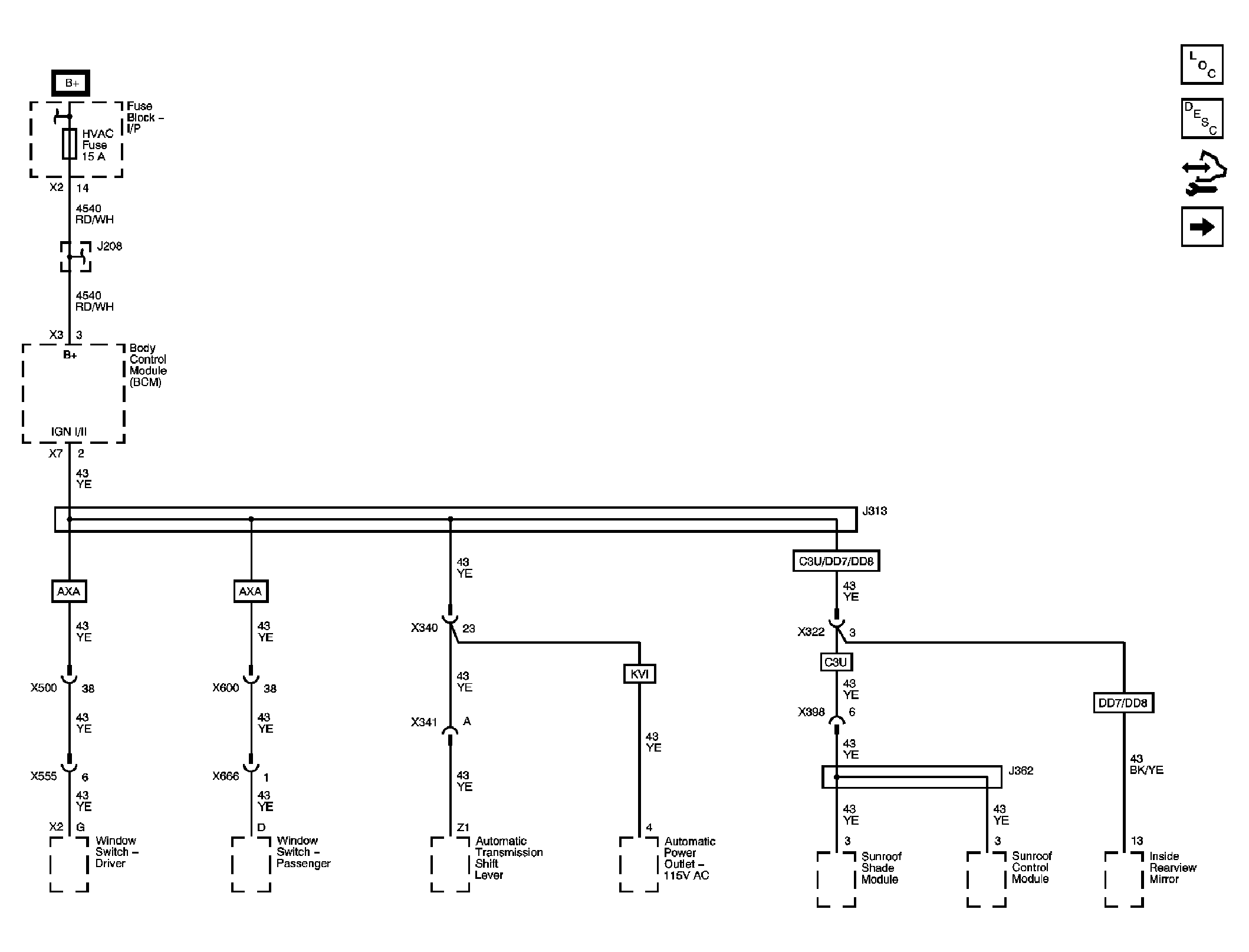

Fig 1: IGN I/II - Schematic
GM1843855Courtesy of GENERAL MOTORS CORP.
Fig 2: IGN II/III - Schematic
GM1843856Courtesy of GENERAL MOTORS CORP.
