Cooling System Component Views

WARNING: This page is about a different car, the 2007 Cadillac CTS. However, it is still accessible from the selected car via links, so may be relevant.

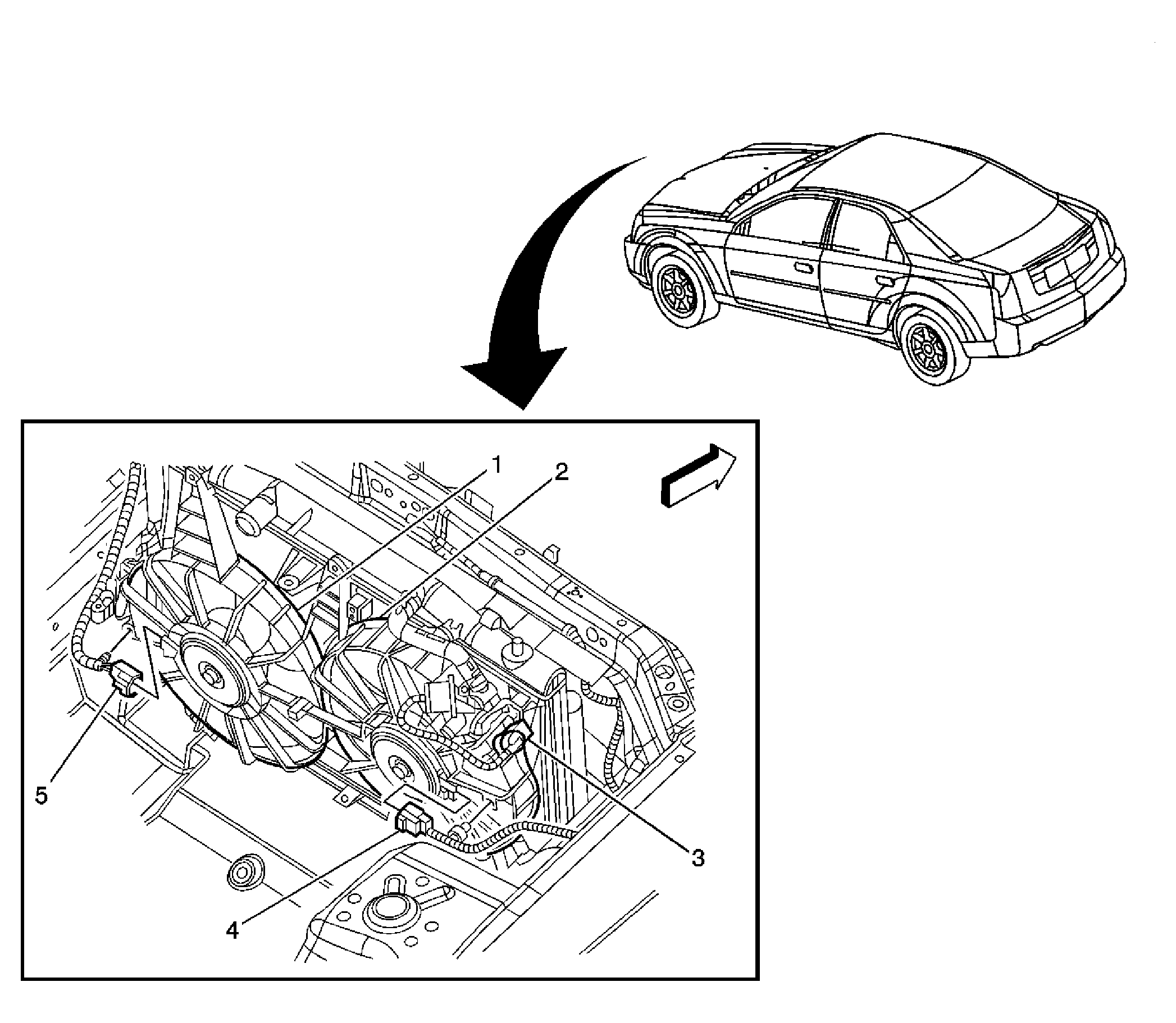

Fig 1: Cooling Fans Component Views

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Cooling Fan - Left
2	Cooling Fan - Right
3	Cooling Fan - Right Connector (LS6)
4	Cooling Fan - Right Connector
5	Cooling Fan - Left Connector

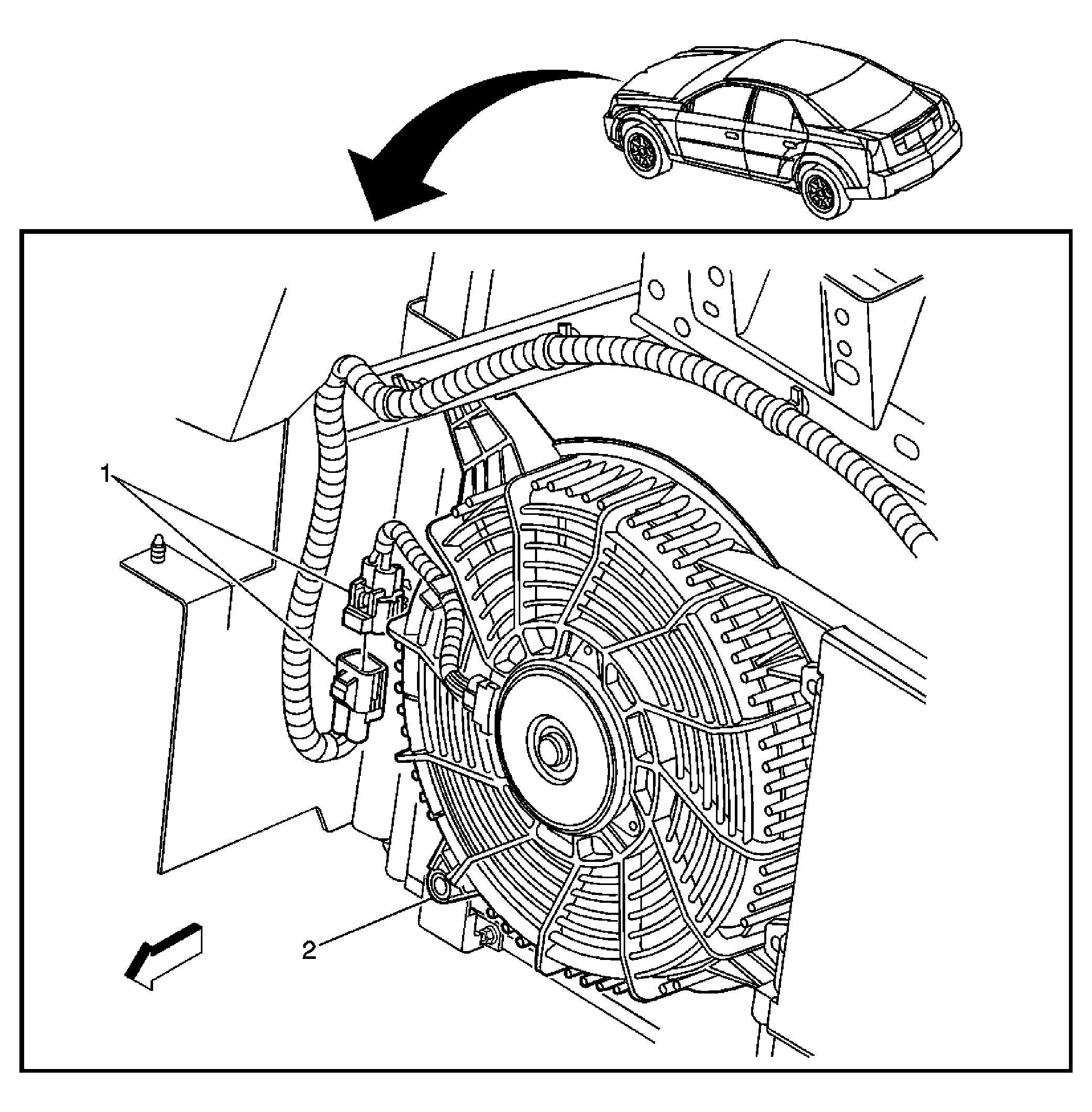

Fig 2: Cooling Fan Component View - Auxiliary (Export w/V92)

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Cooling Fan - Auxiliary Connector
2	Cooling Fan - Auxiliary

Fig 3: Coolant Surge Tank Component Views

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Coolant Surge Tank (RHD)
2	Coolant Surge Tank (LHD)
