Cruise Control Schematics

WARNING: This page is about a different car, the 2005 Pontiac G6. However, it is still accessible from the selected car via links, so may be relevant.

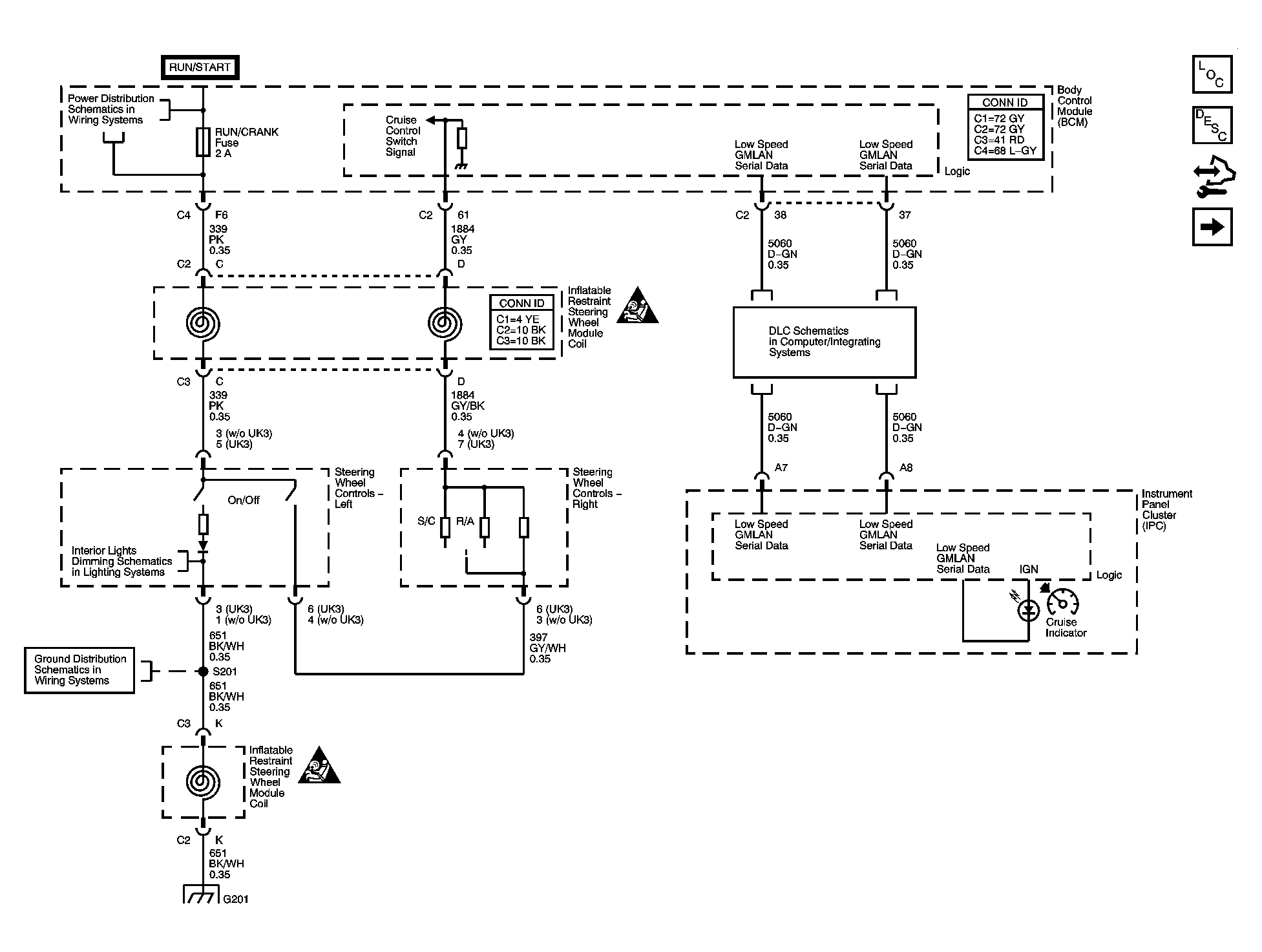

Fig 1: Switches, DLC and Indicator

Courtesy of GENERAL MOTORS CORP.

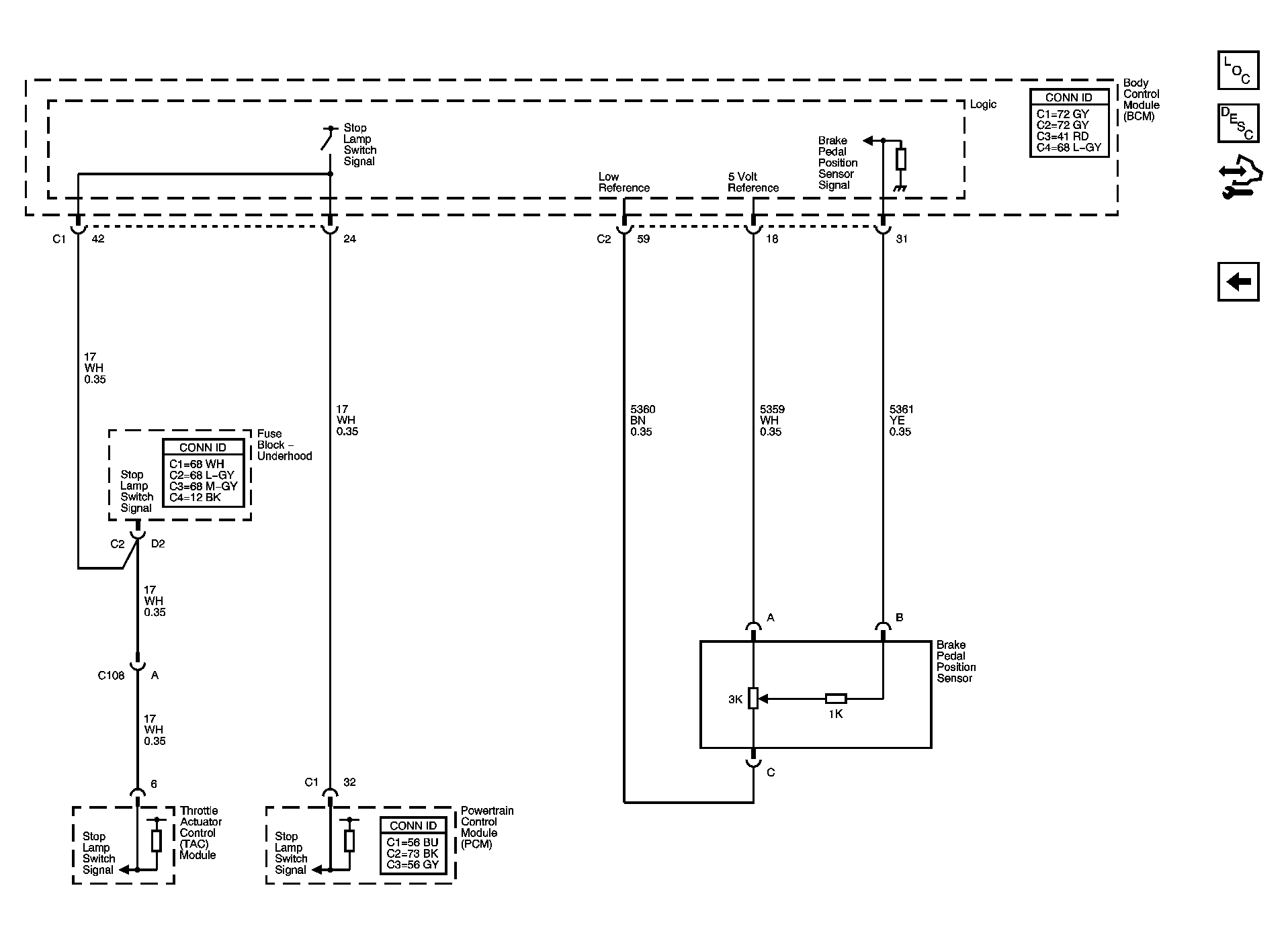

Fig 2: Brake Pedal Position Sensor and Stop Lamp Switch Signal

Courtesy of GENERAL MOTORS CORP.
