OnStar Schematics

WARNING: This page is about a different car, the 2007 Cadillac SRX. However, it is still accessible from the selected car via links, so may be relevant.

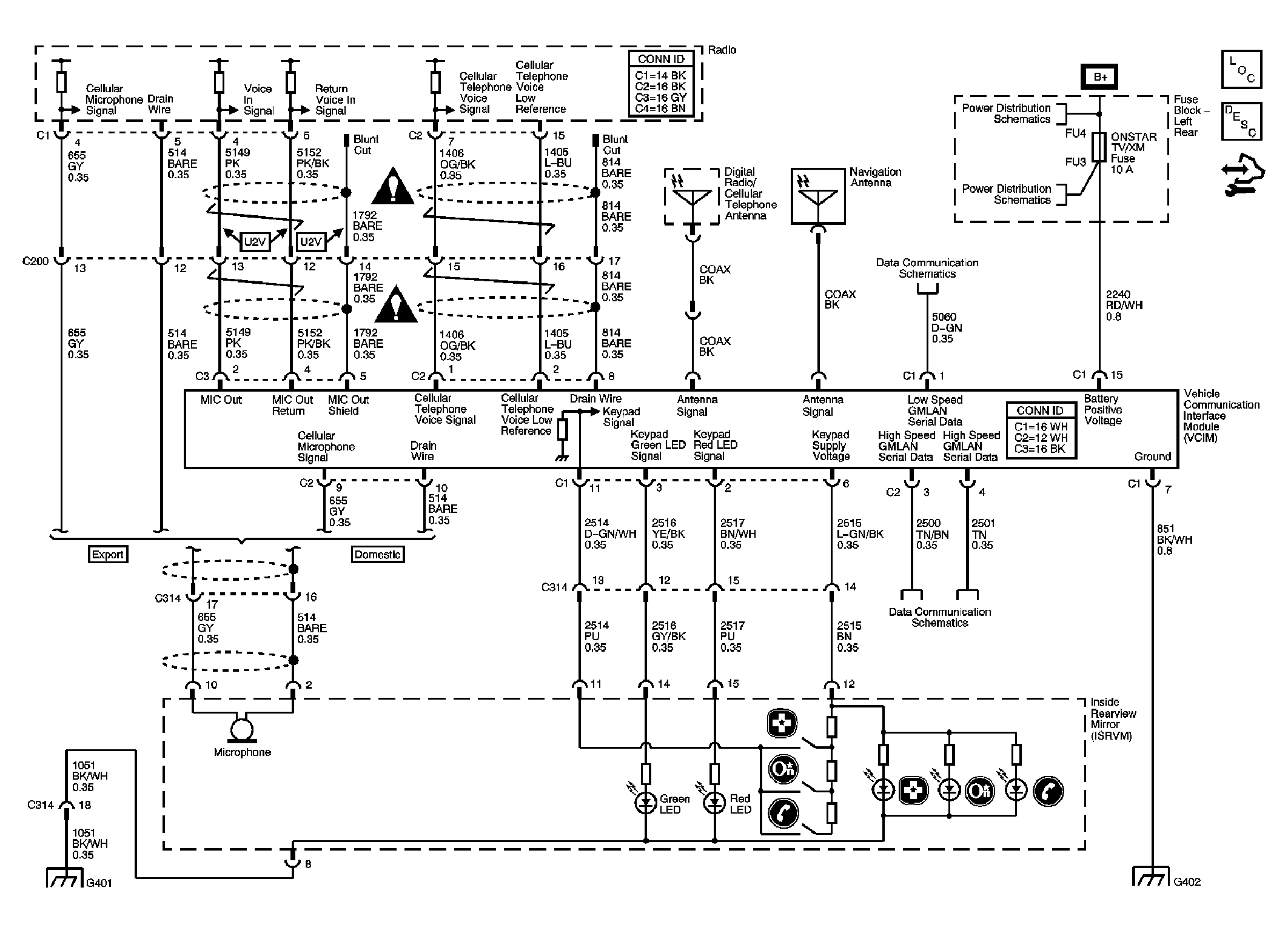

Fig 1: OnStar Schematic

Courtesy of GENERAL MOTORS CORP.
