Door Control Module Schematics

WARNING: This page is about a different car, the 2007 Cadillac SRX. However, it is still accessible from the selected car via links, so may be relevant.

Fig 1: DDM Power, Ground and Serial Data Schematic

GM1749471

Courtesy of GENERAL MOTORS CORP.

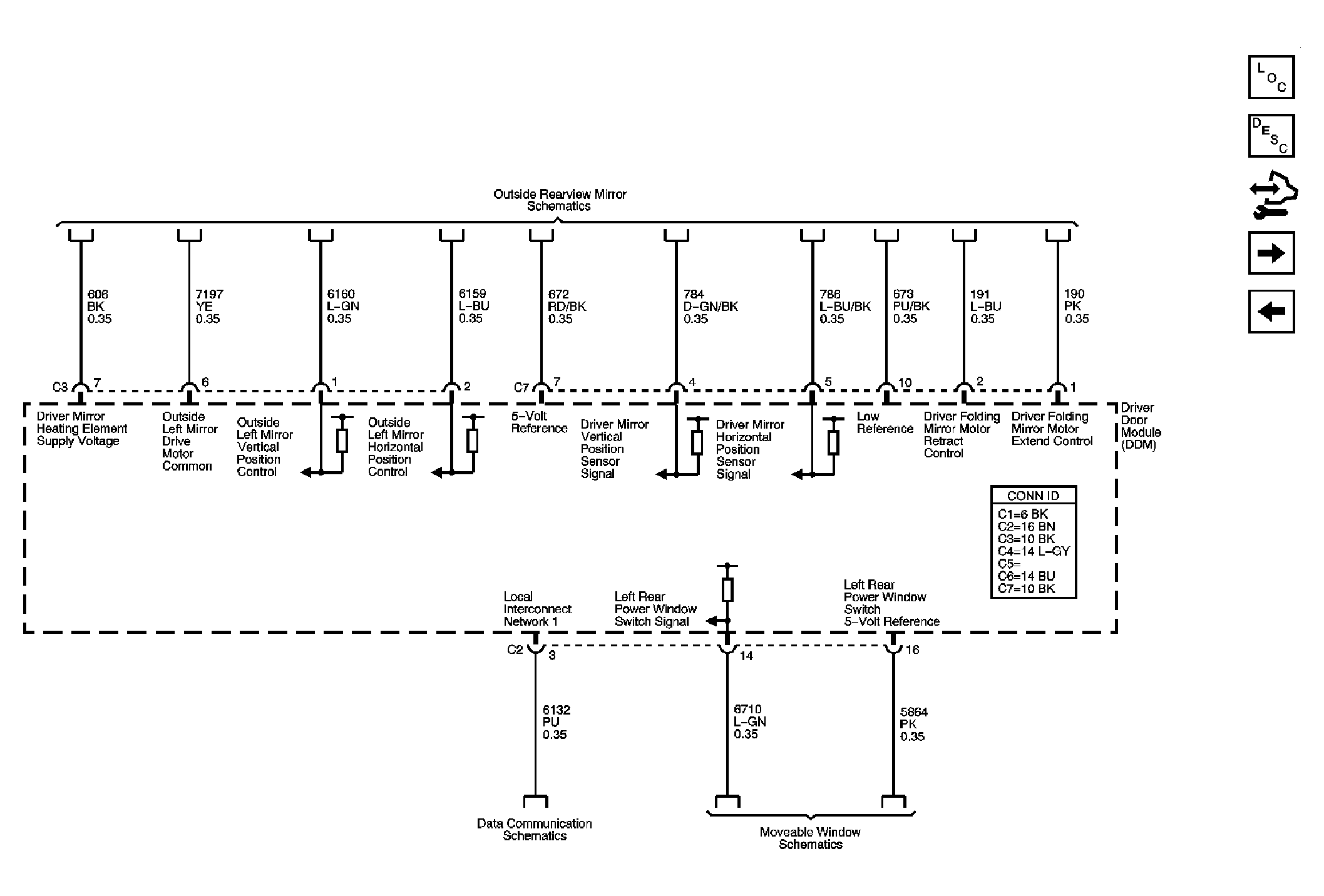

Fig 2: DDM Outside Rearview Mirror and Moveable Window References Schematic

GM1749472

Courtesy of GENERAL MOTORS CORP.

Fig 3: DDM Door Lock References Schematic

GM1749473

Courtesy of GENERAL MOTORS CORP.

Fig 4: FPDM Power, Ground and Serial Data Schematic

GM1749474

Courtesy of GENERAL MOTORS CORP.

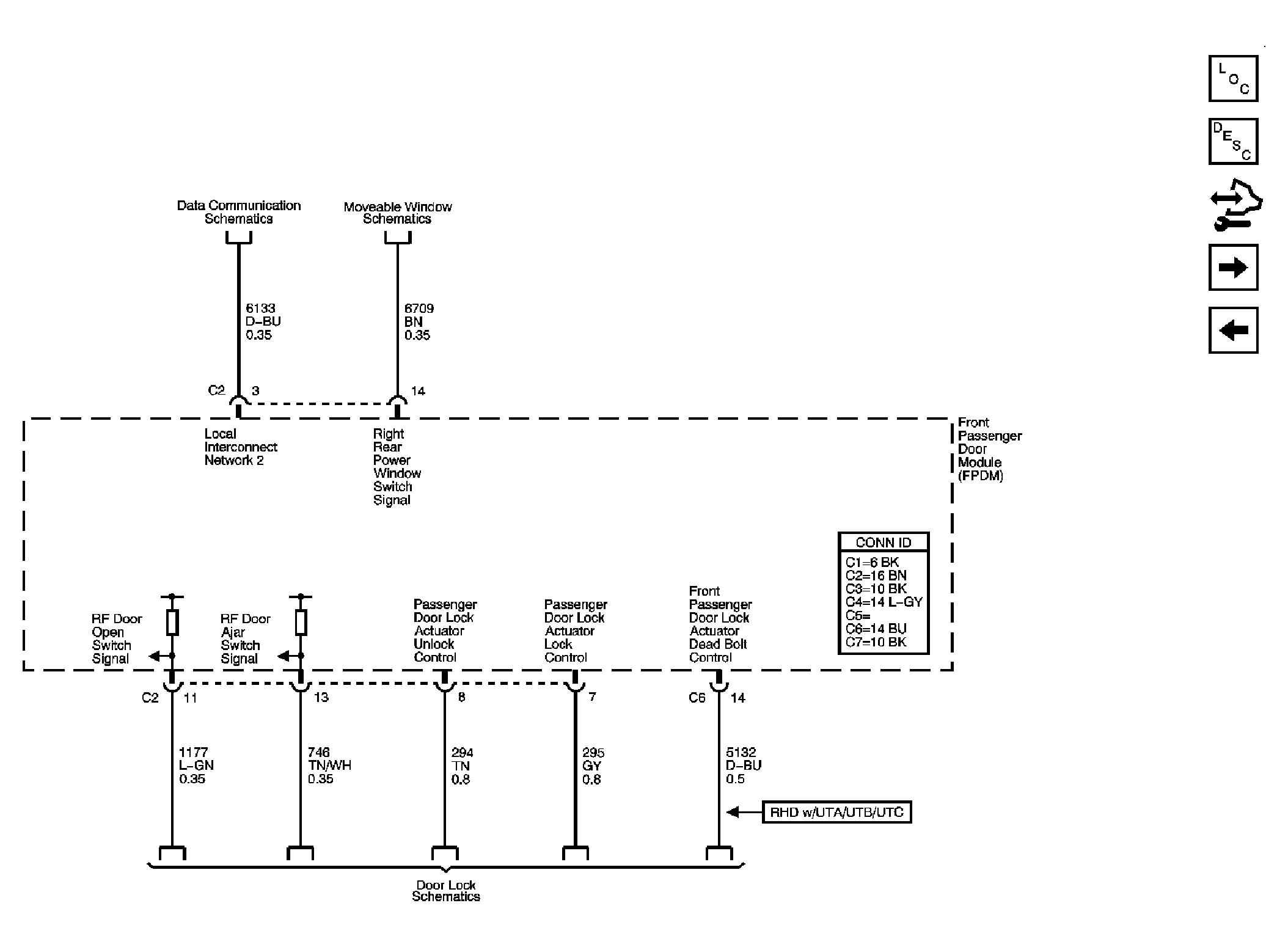

Fig 5: FPDM Moveable Window and Door Lock References Schematic

GM1749475

Courtesy of GENERAL MOTORS CORP.

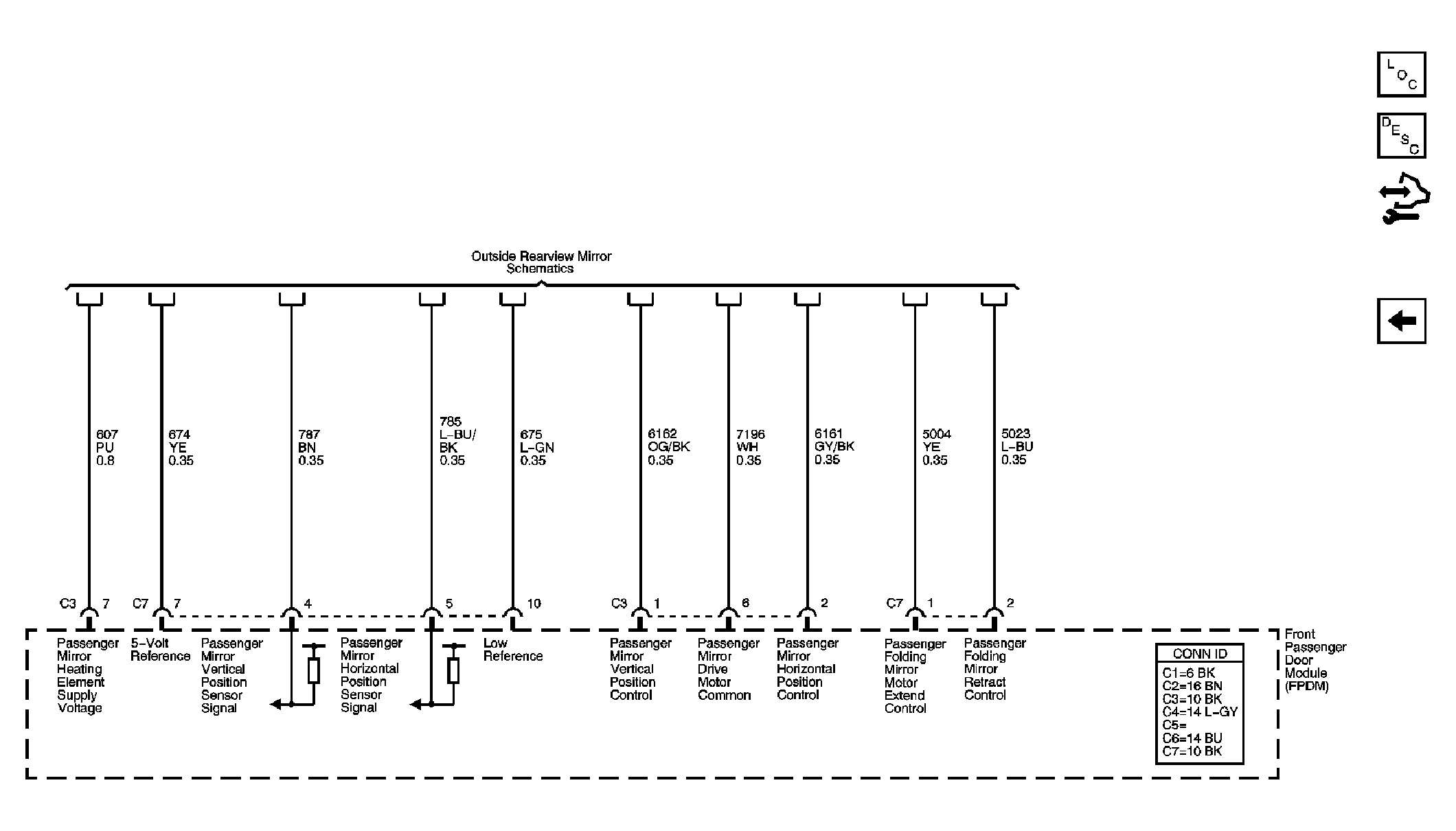

Fig 6: FPDM Outside Rearview Mirror References Schematic

GM1749476

Courtesy of GENERAL MOTORS CORP.
