Mirror Component Views (LHD)
WARNING: This page is about a different car, the 2007 Cadillac SRX. However, it is still accessible from the selected car via links, so may be relevant.
| Callout | Component Name |
|---|---|
| 1 | Headlight Sensor |
| 2 | Emergency Button (UE1) |
| 3 | OnStar® Call Center Button (UE1) |
| 4 | Answer/End Call Button (UE1) |
| 5 | Cellular Microphone (UE1) |
| 6 | Inside Rearview Mirror (ISRVM) On/Off Button |
| 7 | Inside Rearview Mirror (ISRVM) |
| 8 | Rear Window Defogger Grid |
| 9 | Rear Window Wiper Motor |

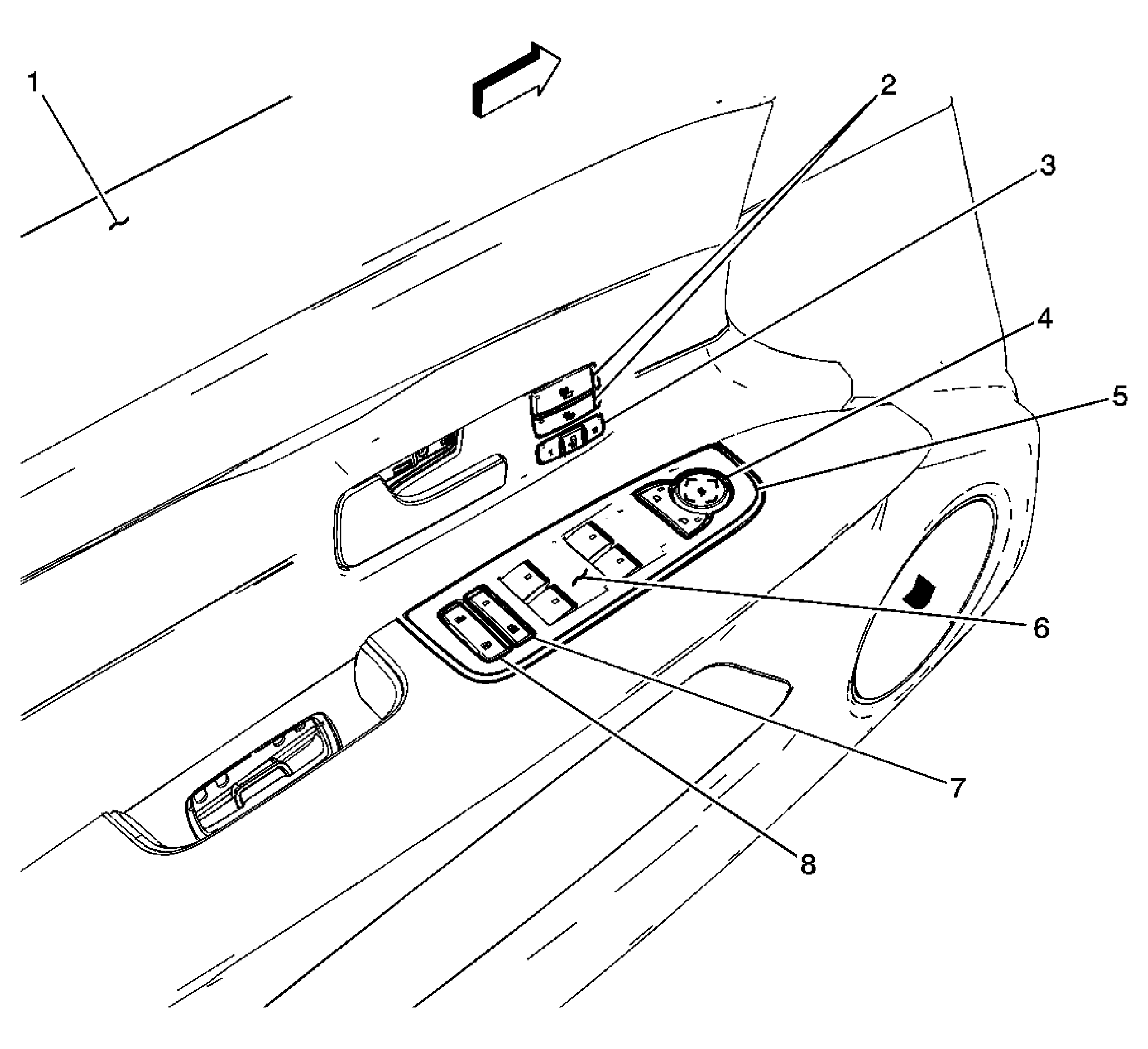

| Callout | Component Name |
|---|---|
| 1 | Driver Door |
| 2 | Heated Seat Switches (KA1) |
| 3 | Memory Seat Switch (A45) |
| 4 | Outside Rearview Mirror (OSRVM) Switch |
| 5 | Driver Door Module (DDM) |
| 6 | Window Switches |
| 7 | Window Lockout Switch |
| 8 | Door Lock/Unlock Switch |

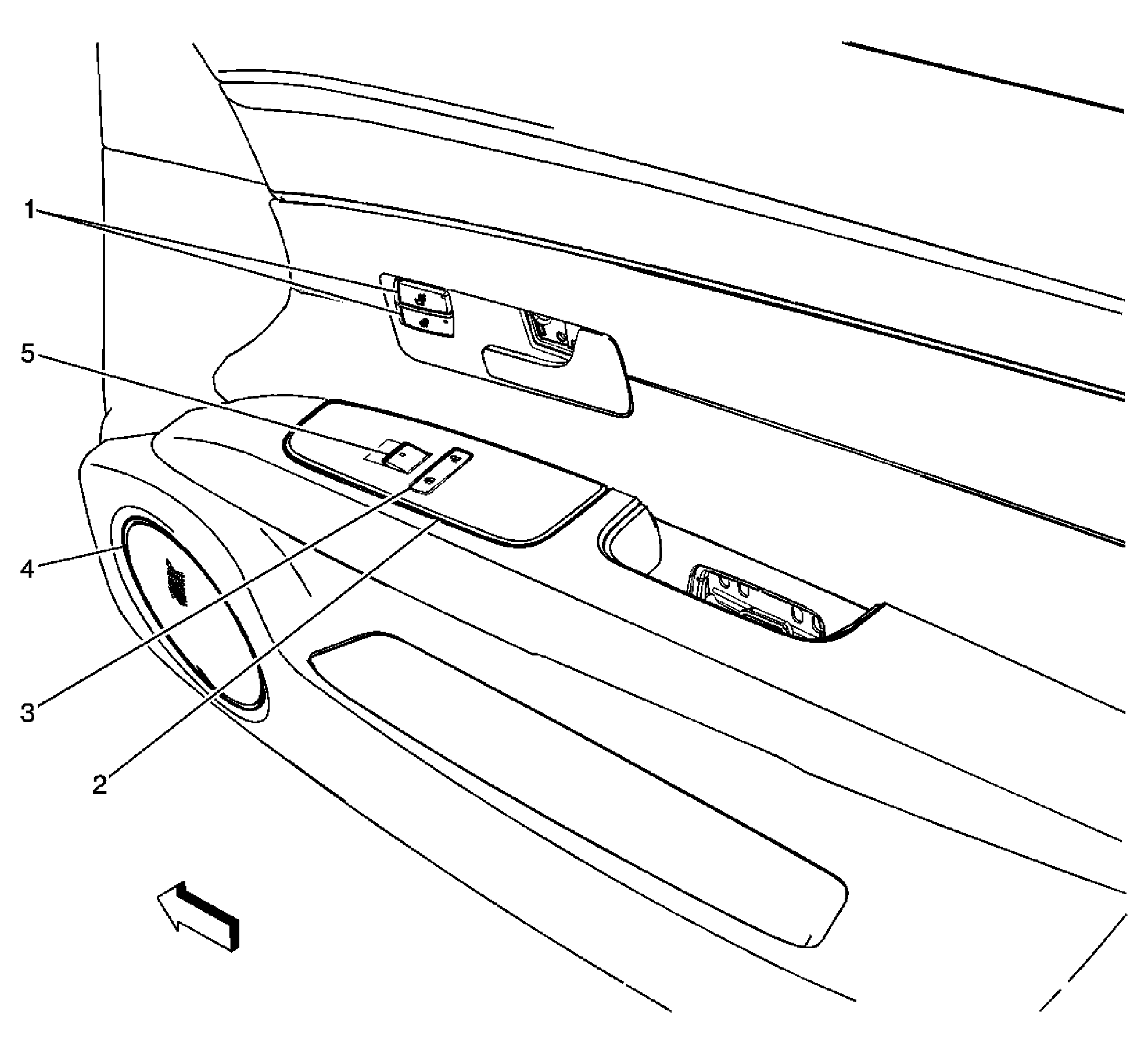

| Callout | Component Name |
|---|---|
| 1 | Heated Seat Switch - Front Passenger (KA1) |
| 2 | Front Passenger Door Module (FPDM) |
| 3 | Door Lock Switch - Front Passenger |
| 4 | Speaker - RF Door |
| 5 | Window Switch - Front Passenger |
| Callout | Component Name |
|---|---|
| 1 | Outside Rearview Mirror (OSRVM) - Driver |
| 2 | Door Latch Assembly - Driver |
| 3 | Window Motor - Driver |
| Callout | Component Name |
|---|---|
| 1 | Outside Rearview Mirror (OSRVM) - Passenger |
| 2 | Window Motor - Front Passenger |
| 3 | Door Latch Assembly - Front Passenger |
