Mirror Component Views (RHD)
WARNING: This page is about a different car, the 2007 Cadillac SRX. However, it is still accessible from the selected car via links, so may be relevant.

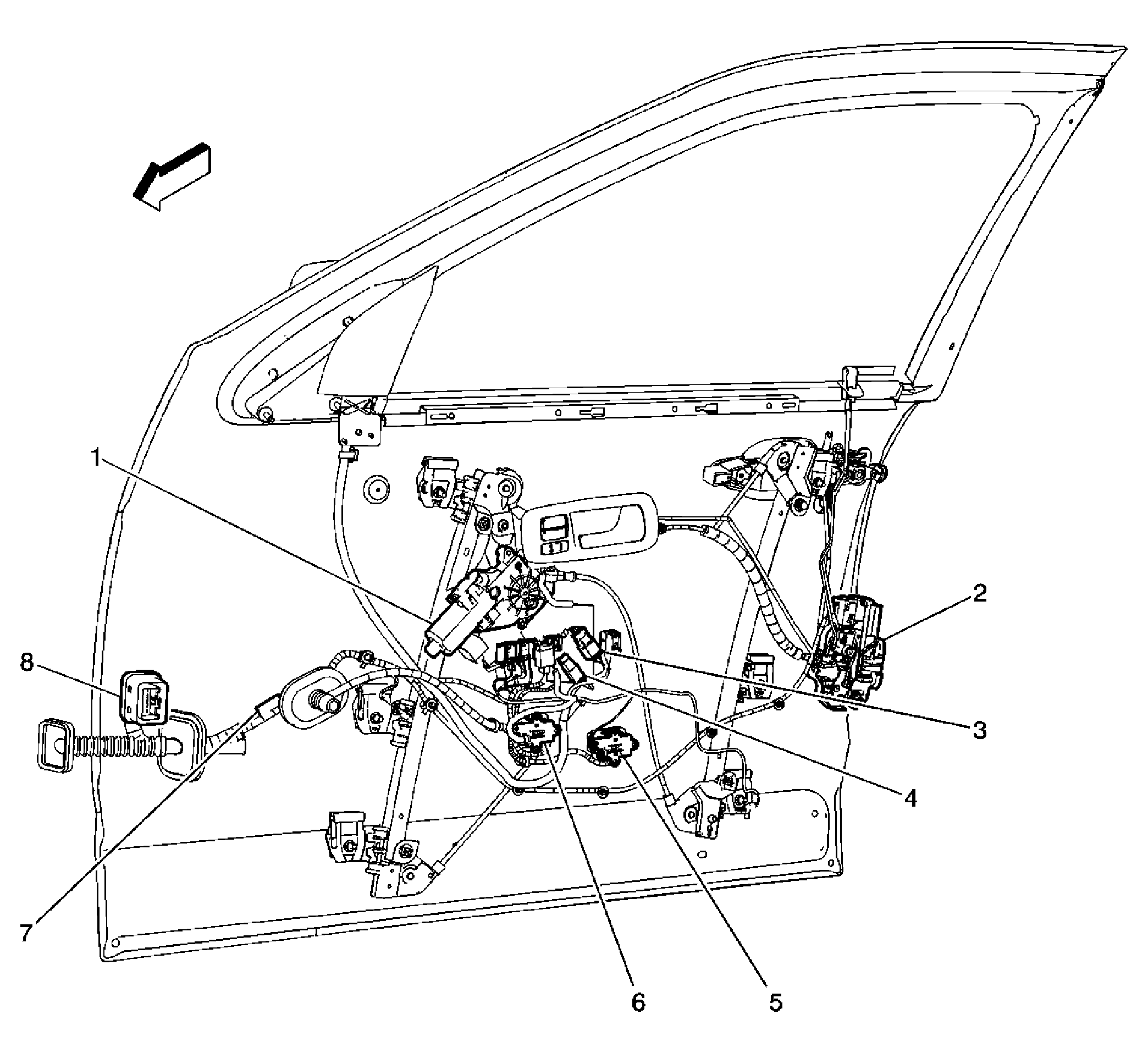

| Callout | Component Name |
|---|---|
| 1 | Headlight Sensor |
| 2 | Emergency Button (UE1) |
| 3 | OnStar® Call Center Button (UE1) |
| 4 | Answer/End Call Button (UE1) |
| 5 | Cellular Microphone (UE1) |
| 6 | Inside Rearview Mirror (ISRVM) On/Off Button |
| 7 | Inside Rearview Mirror (ISRVM) |
| 8 | Rear Window Defogger Grid |
| 9 | Rear Window Wiper Motor |
| Callout | Component Name |
|---|---|
| 1 | Window Motor |
| 2 | Door Latch Assembly |
| 3 | Outside Rearview Mirror C2 |
| 4 | Outside Rearview Mirror C1 |
| 5 | C602 |
| 6 | C601 |
| 7 | S601 |
| 8 | C600 |
| Callout | Component Name |
|---|---|
| 1 | Outside Rearview Mirror |
| 2 | Courtesy Lamp |
| 3 | Driver Door Module (DDM) |
| 4 | Door Lock Switch |
| 5 | Window Lockout Switch |
| 6 | Window Switches |
| 7 | Speaker - RF Door |
| 8 | Outside Rearview Mirror Switch |
| 9 | Memory Seat Switch |
| 10 | Heated Seat Switches |
| Callout | Component Name |
|---|---|
| 1 | Outside Rearview Mirror |
| 2 | Window Motor |
| 3 | S501 |
| 4 | C500 |
| 5 | C501 |
| 6 | C502 |
| 7 | Outside Rearview Mirror Connector |
| 8 | Door Latch Assembly |
| Callout | Component Name |
|---|---|
| 1 | Outside Rearview Mirror |
| 2 | Heated Seat Switches |
| 3 | Window Switch |
| 4 | Speaker - LF Door |
| 5 | Door Lock Switch |
| 6 | Courtesy Lamp - LF Door |
