Installation Procedure
WARNING: This page is about a different car, the 2007 Cadillac CTS. However, it is still accessible from the selected car via links, so may be relevant.
- Connect the electrical connectors.

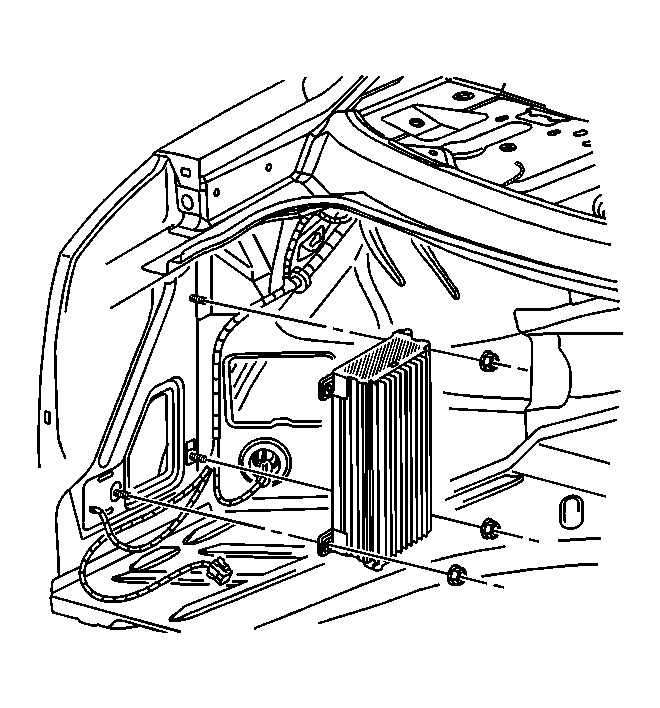

- Install the amplifier to the studs on the wheel house.NOTE: Refer to Fastener Notice .
- Install the nuts securing the amplifier the vehicle.
Tighten: Tighten the nuts to 9 N.m (80 lb in).
- Reinstall the rear compartment trim. Refer to Rear Compartment Trim Panel Replacement .
- Refer to Control Module References for programming and setup information.
