Antilock Brake System Schematics

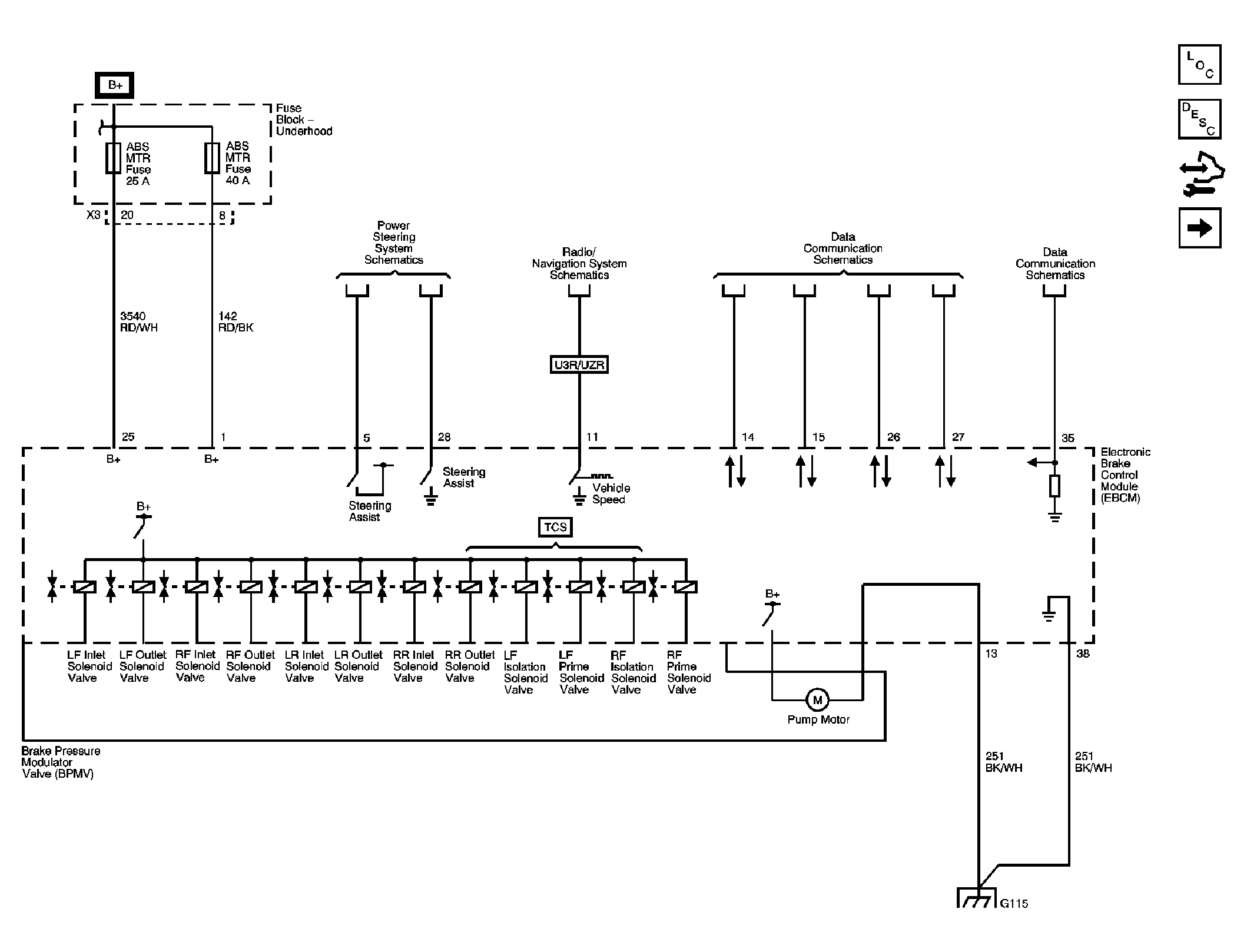

Fig 1: Module Power And Ground, Subsystem References - Schematic

Courtesy of GENERAL MOTORS CORP.

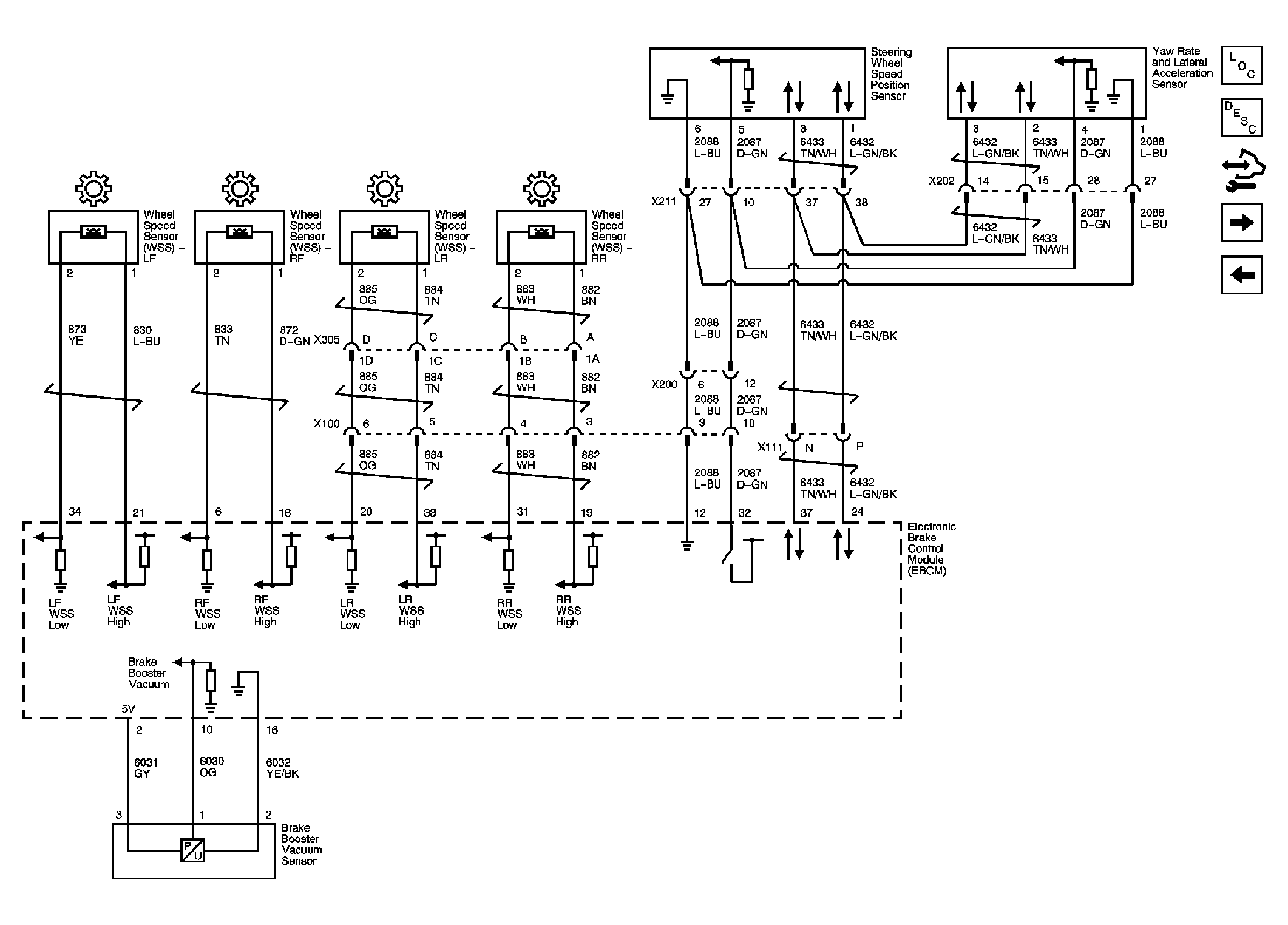

Fig 2: Sensors - Schematic

Courtesy of GENERAL MOTORS CORP.

Fig 3: TCS Control And Indicators - Schematic

Courtesy of GENERAL MOTORS CORP.
