Glow Plug Control Module (GPCM) Connector End View X1

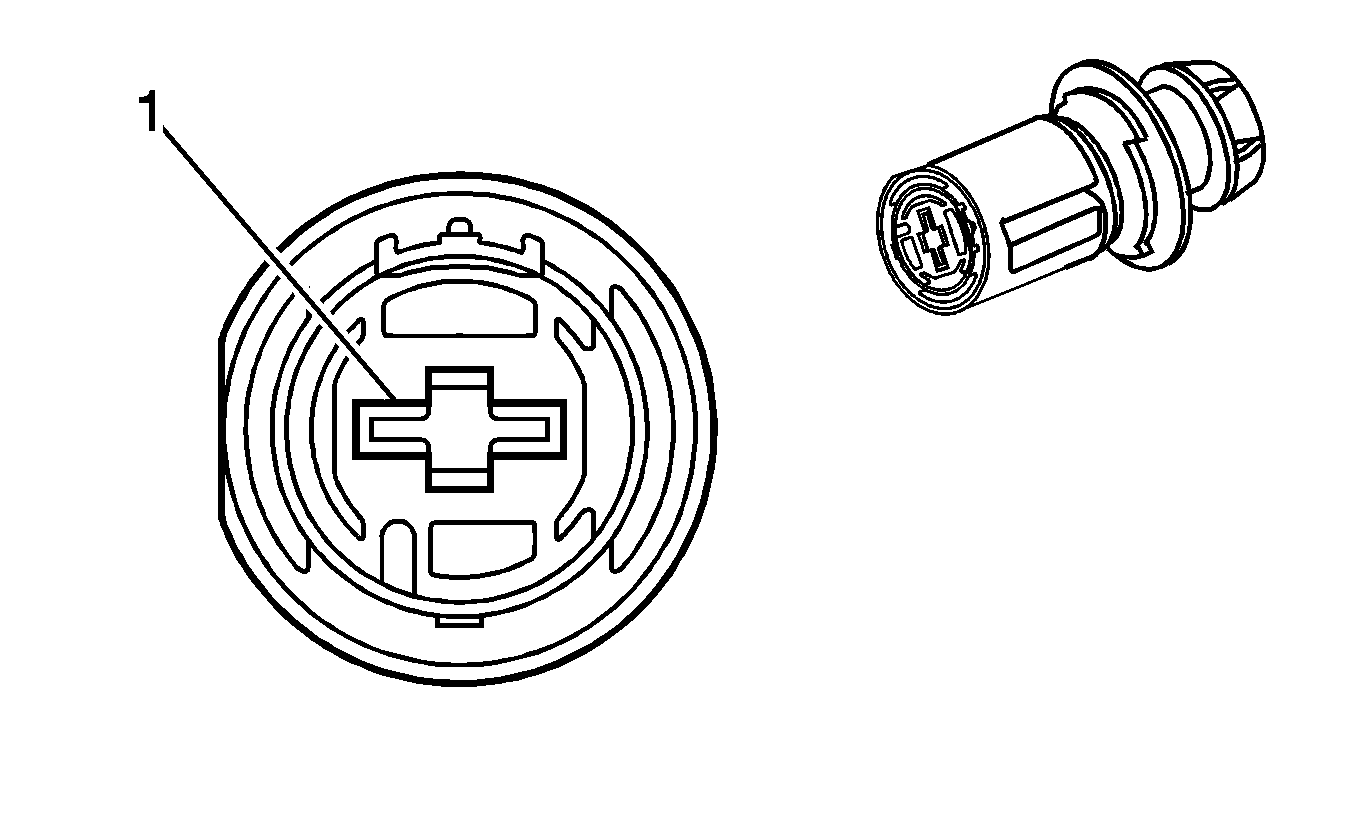

Fig 1: Glow Plug Control Module (GPCM) X1 Connector End View
GM1366585Courtesy of GENERAL MOTORS CORP.
Glow Plug Control Module (GPCM) X1 Connector Parts Information

Connector Part Information
  • OEM: 15499498
  • Service: See Catalog
  • Description: 1-Way F Sealed (BK)
Terminal Part Information
  • Terminal/Tray: See Terminal Repair Kit
  • Core/Insulation Crimp: See Terminal Repair Kit
  • Release Tool/Test Probe: See Terminal Repair Kit
Glow Plug Control Module (GPCM) X1 Connector Terminal Identification

Pin Wire Color Circuit No. Function
1 13 RD/BK 2 Battery Positive Voltage
