Control Units
CONTROL UNITS LOCATION
| Component | Location |
|---|---|
| Blower Motor Control Processor | Near blower motor, on HVAC assembly. See Figure. |
| Body Control Module | On lower left side of dash, below steering column. See Figure. |
| Body Control Module (BCM) Connectors | On body control module. See Figure. |
| Cruise Control Module | In left rear of engine compartment. See Figure. |
| Cruise Control Module Electrical Connector | On cruise control module. See Figure. |
| Driver Door Module (DDM) | In driver's door. See Figure. |

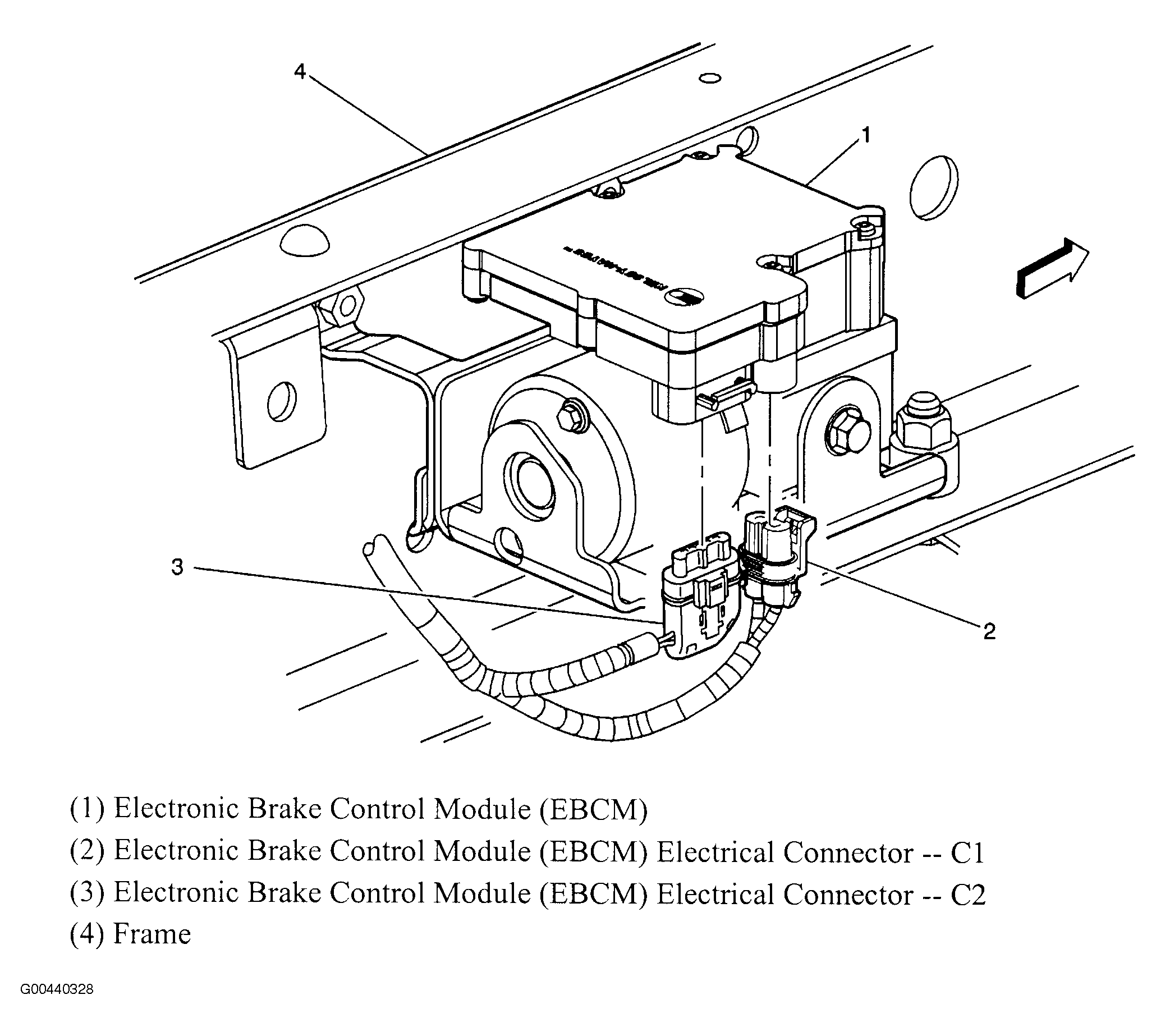

| Electronic Brake Control Module (EBCM) | On left side of inner frame. See Figure. |
| Energy Storage Control Module (ESCM) | In energy storage box. See Figure. |

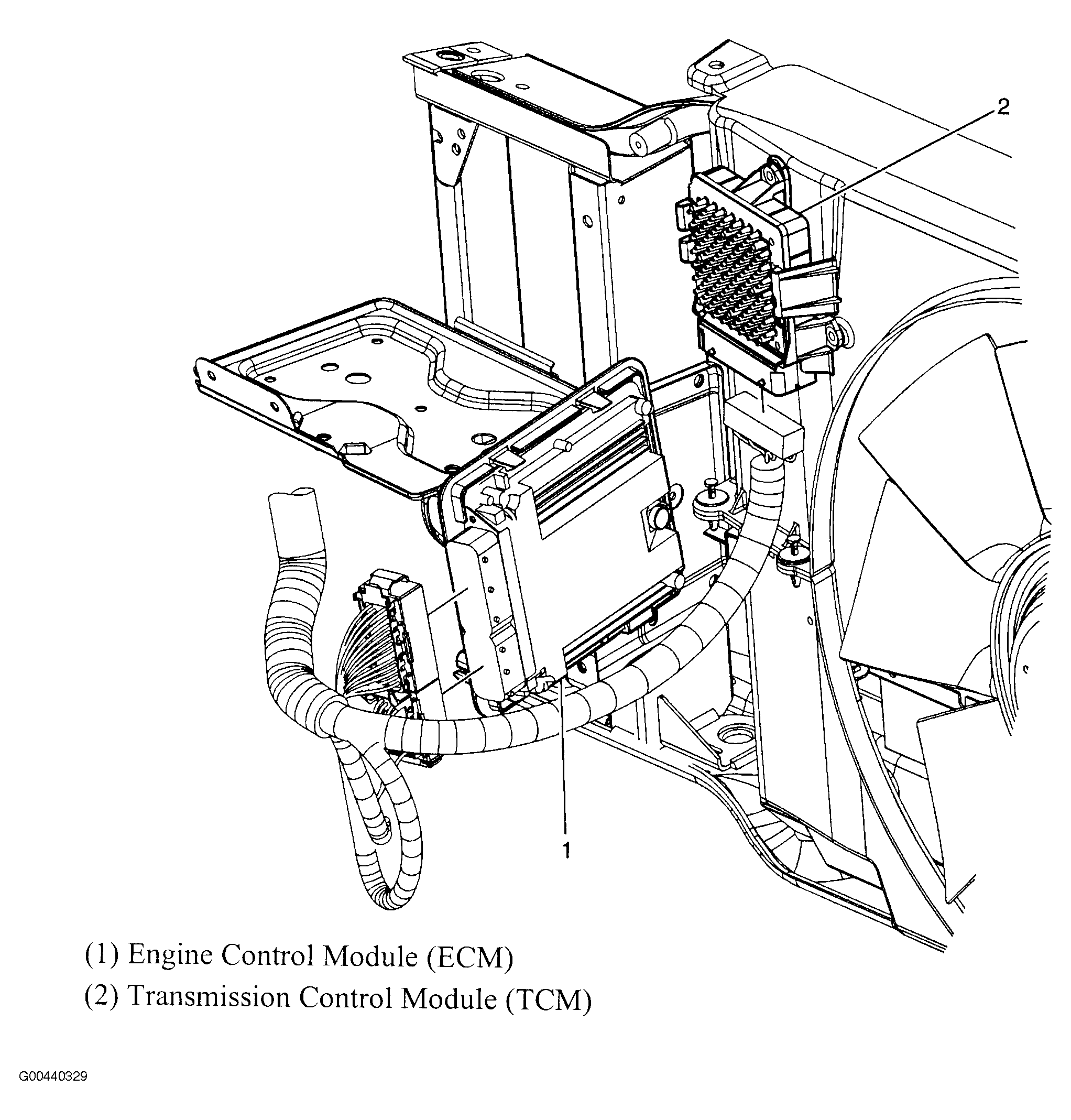

| Engine Control Module (ECM) (6.6L) | At left front of engine compartment. See Figure. |
| Flasher Module | On bottom of instrument panel fuse block. See Figure. |
| Front Passenger Door Module (FPDM) | In right front door. See Figure. |
| Generator Battery Control Module | Left front corner of engine compartment, on battery negative cable. |
| HVAC Control Module | In center of dash. See Figure. |

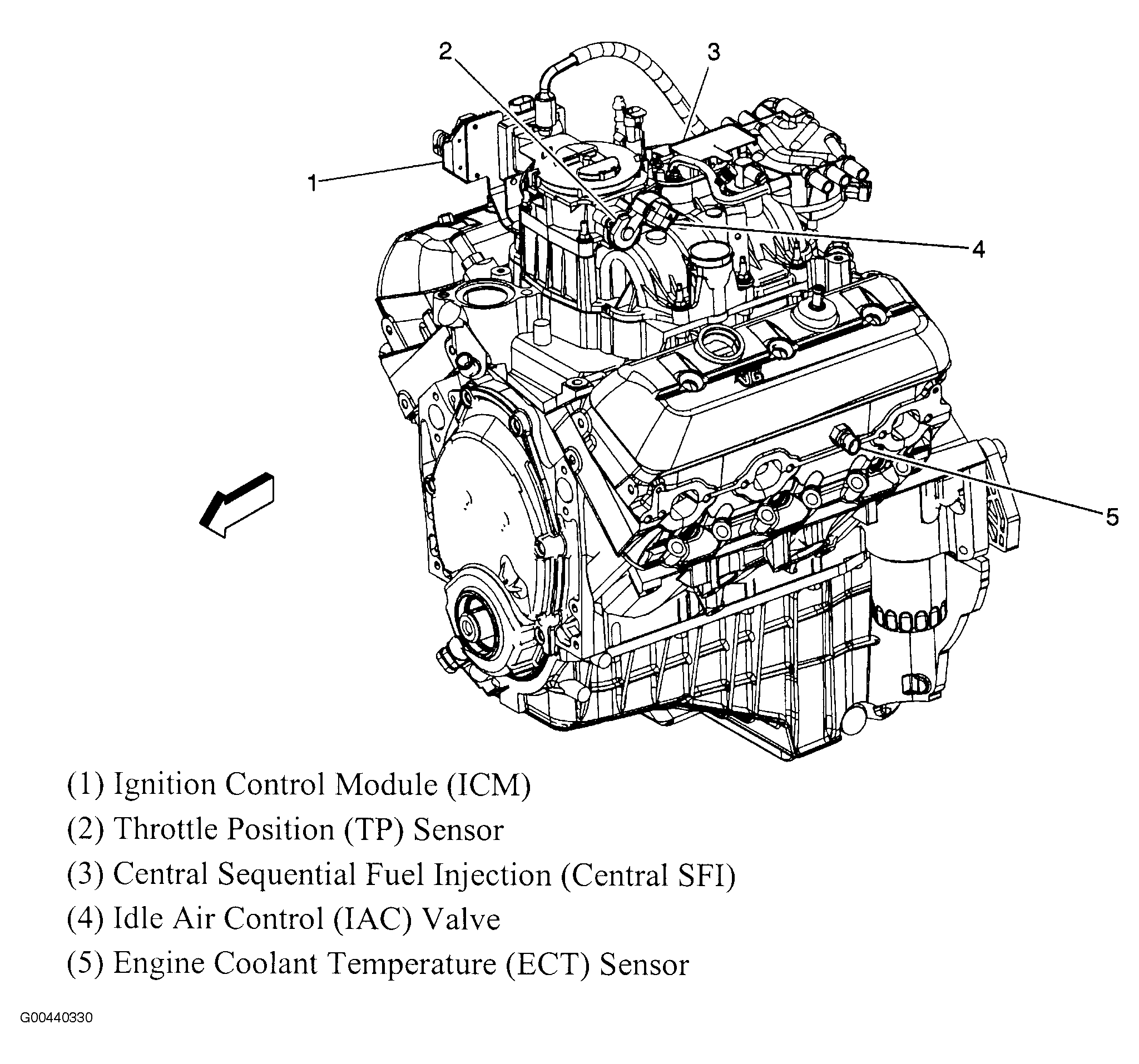

| Ignition Control Module (ICM) (4.3L) | On right front of intake manifold. See Figure. |
| Inflatable Restraint I/P Module | Behind right side of dash. |
| Inflatable Restraint Passenger Presence System (PPS) Module | Below right front seat. See Figure. |

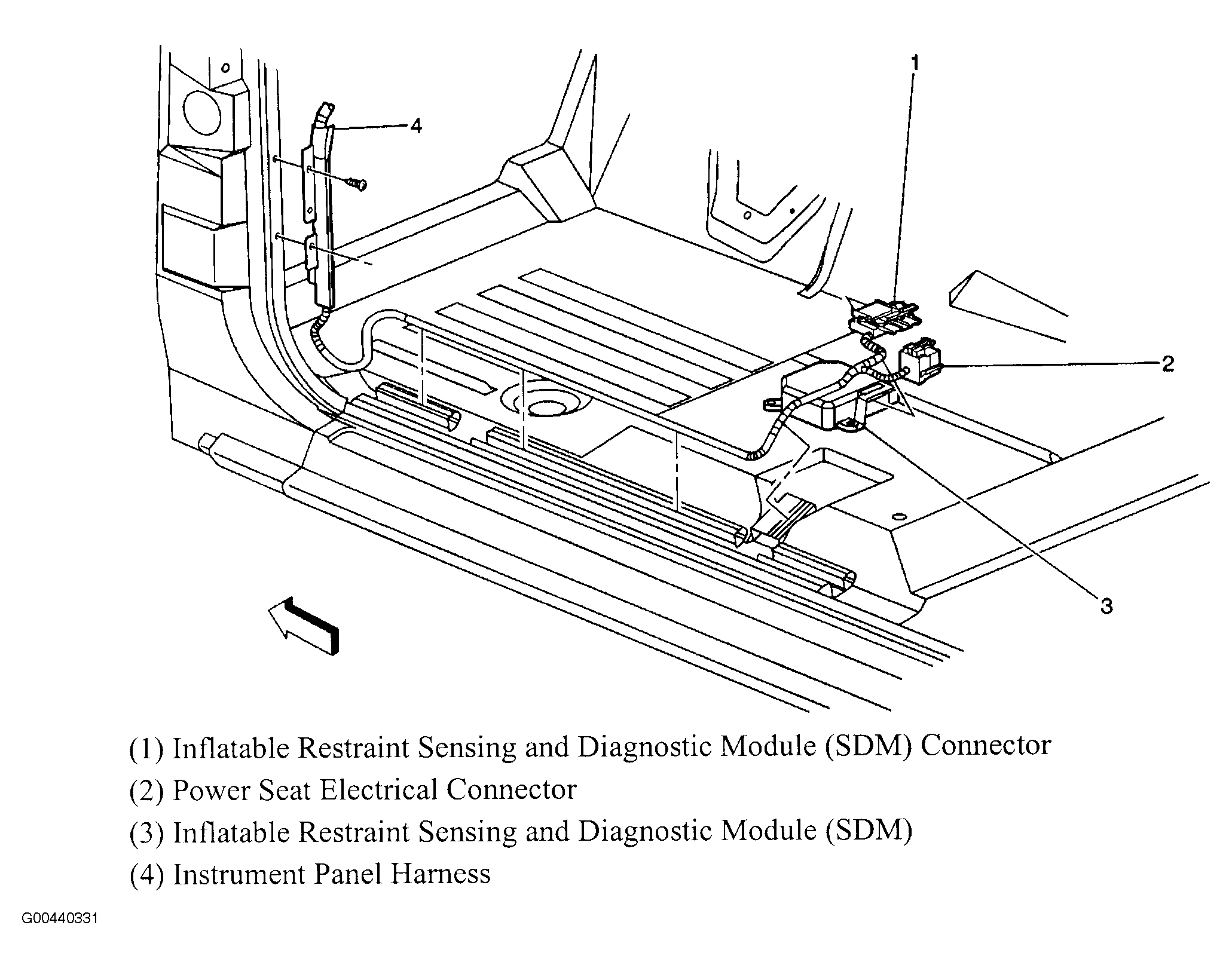

| Inflatable Restraint Sensing And Diagnostic Module (SDM) | Under left front seat. See Figure. |
| Memory Seat Module | Underside of left front seat. See Figure. |

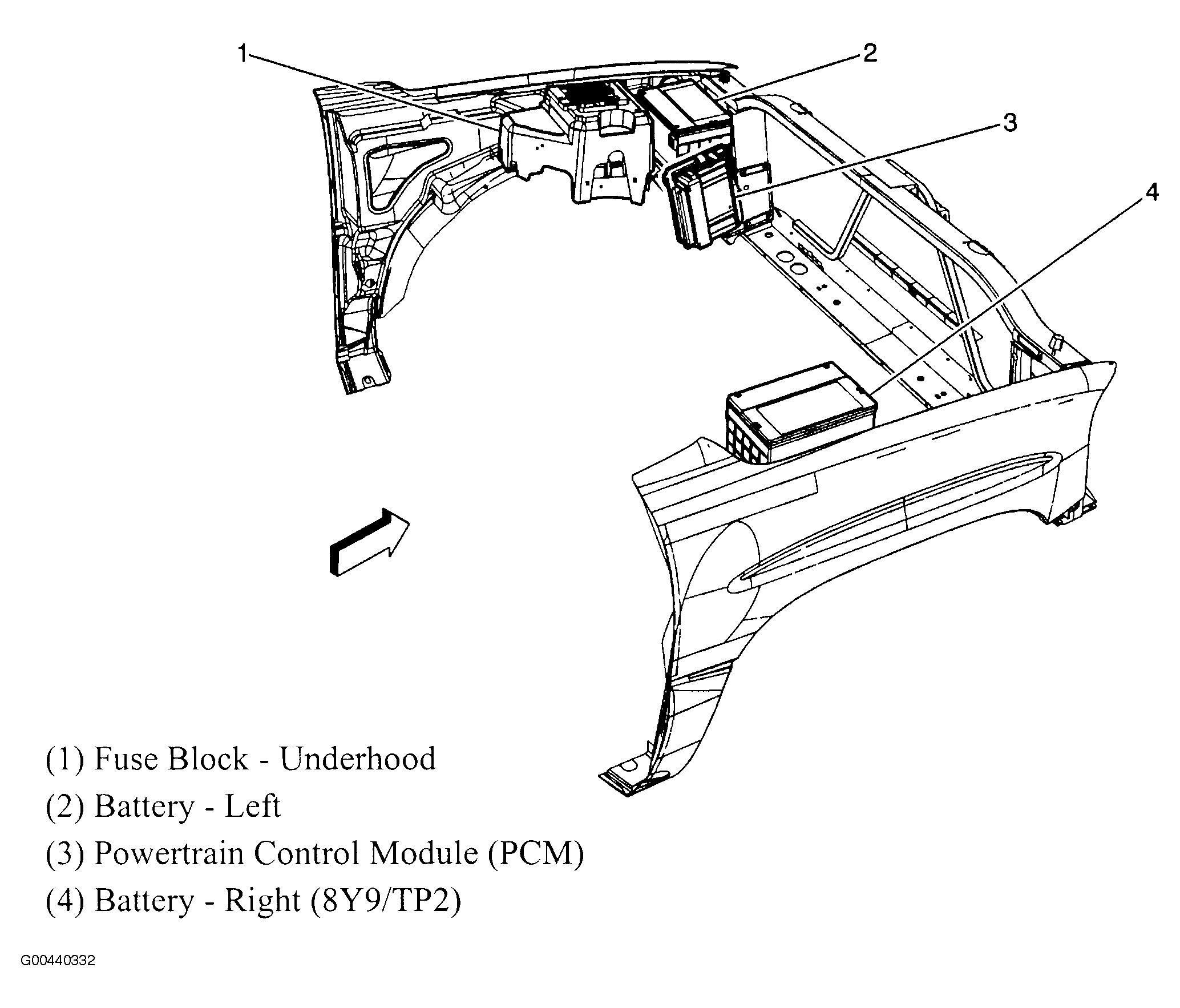

| Powertrain Control Module (PCM) (4.3L, 4.8L, 5.3L, 6.0L) | Left front of engine compartment. See Figure. |
| Powertrain Control Module (PCM) (8.1L) | Left front of engine compartment. See Figure. |

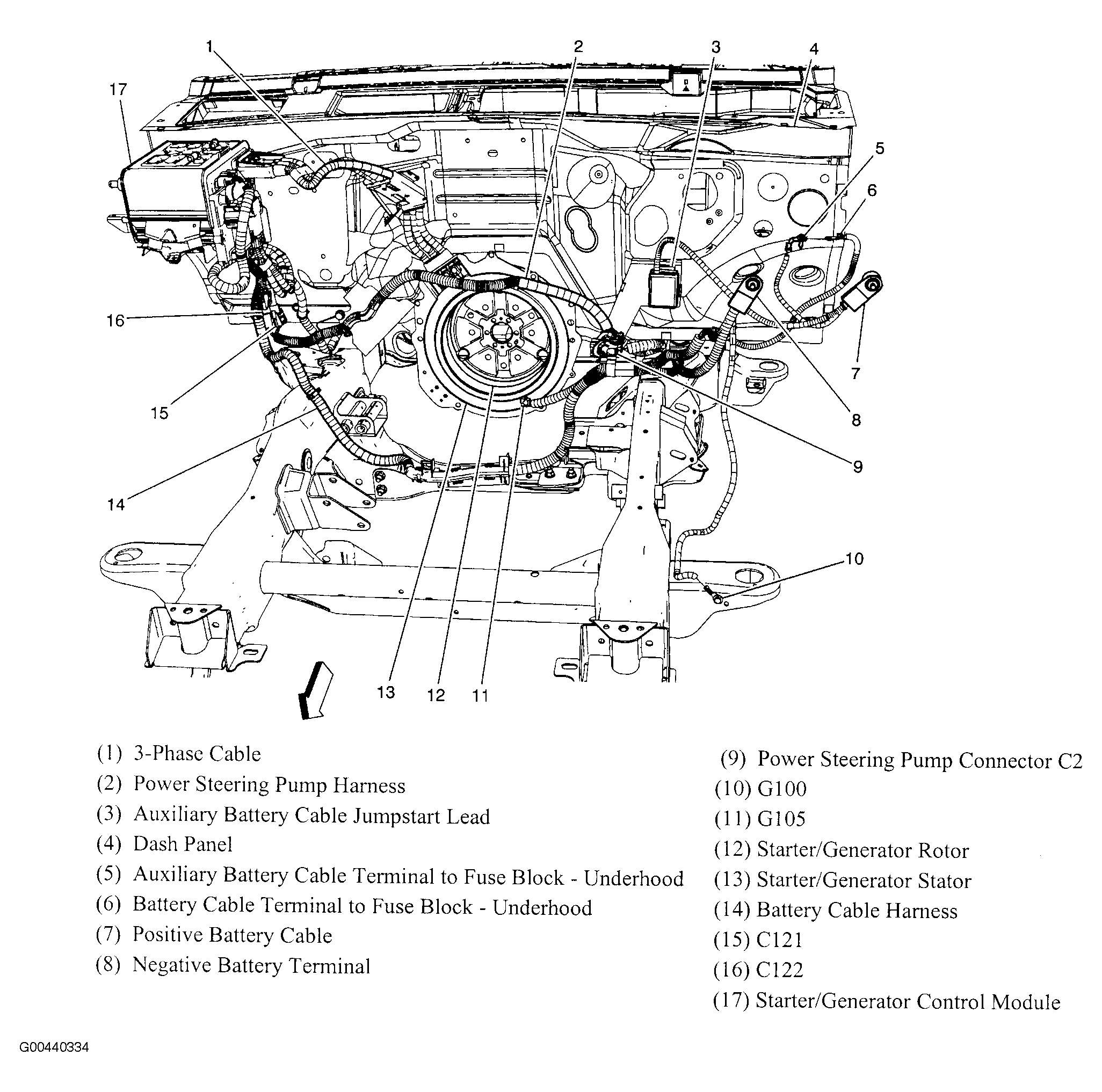

| Starter/Generator Control Module (Hybrid) | Right rear of engine compartment. See Figure. |
| Throttle Actuator Control (TAC) Module (4.8L, 5.3L, 6.0L & 8.1L) | At left rear of engine compartment. See Figure. |
| Tire Pressure Monitor (TPM) Module | Behind dash above brake pedal assembly. |
| Transfer Case Shift Control Module | Behind headlamp switch. See Figure. |

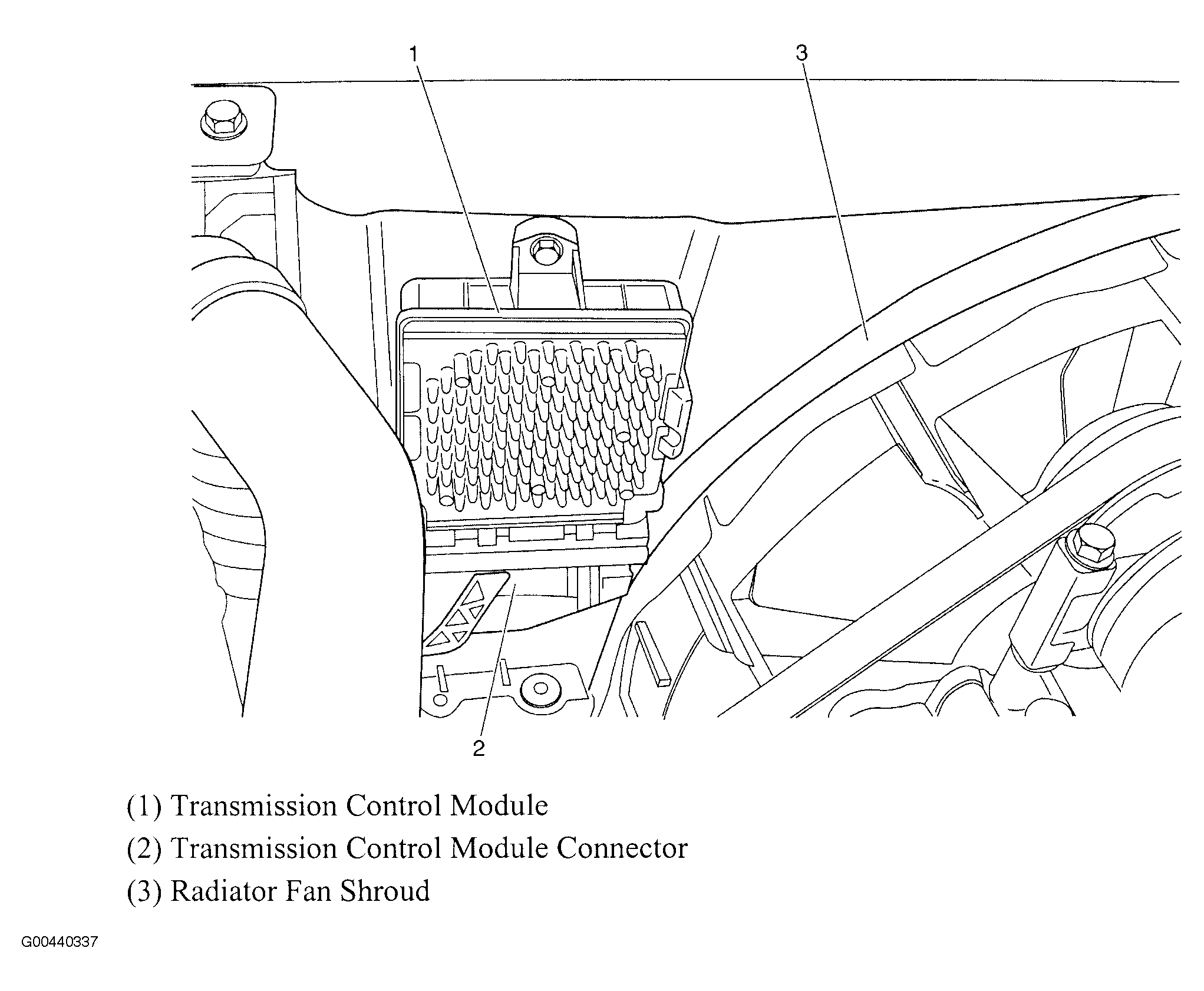

| Transmission Control Module (Allison) | Left front of engine compartment. See Figure. |
| Transmission Control Module (TCM) (6.6L) | At left front of engine compartment. See Figure. |

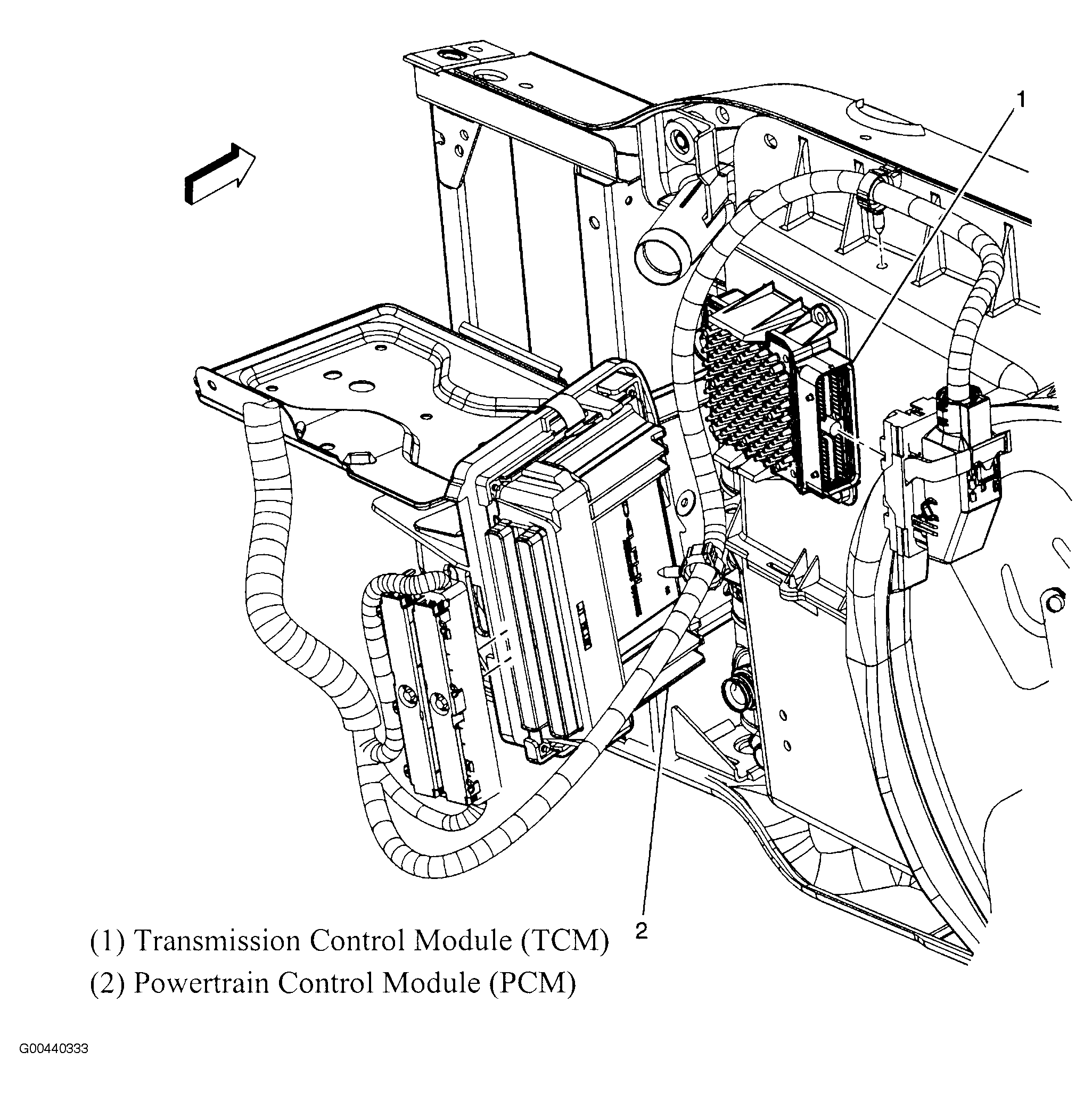

| Transmission Control Module (TCM) (8.1L) | At left front of engine compartment. See Figure. |
| Vehicle Communication Interface Module (VCIM) | Behind passenger air bag module. |

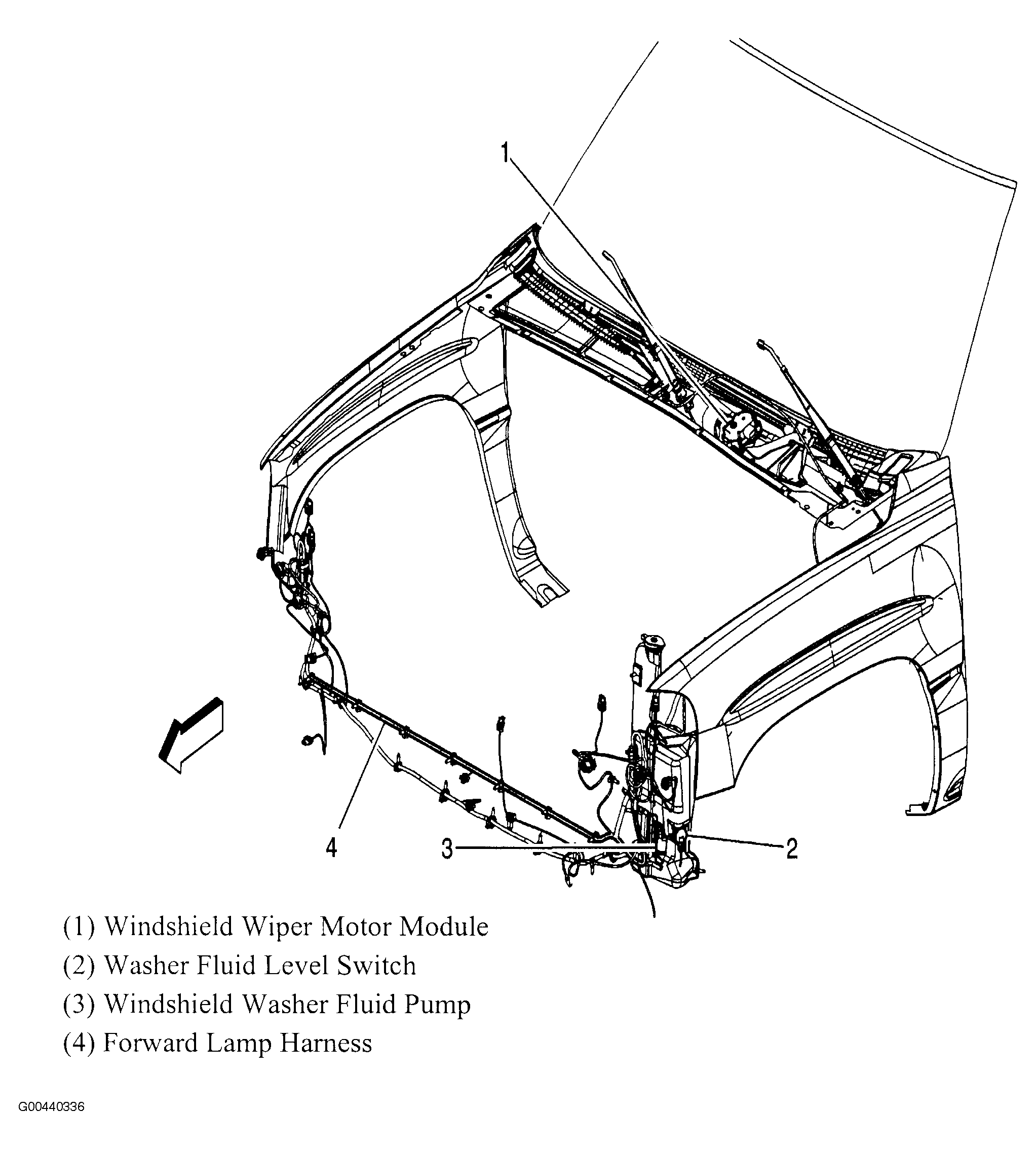

| Windshield Wiper Motor Module | Under windshield cowl, between wiper arms. See Figure. |
