Steering Wheel Secondary/Configurable Control Schematics
Steering Wheel Secondary/Configurable Control Schematics

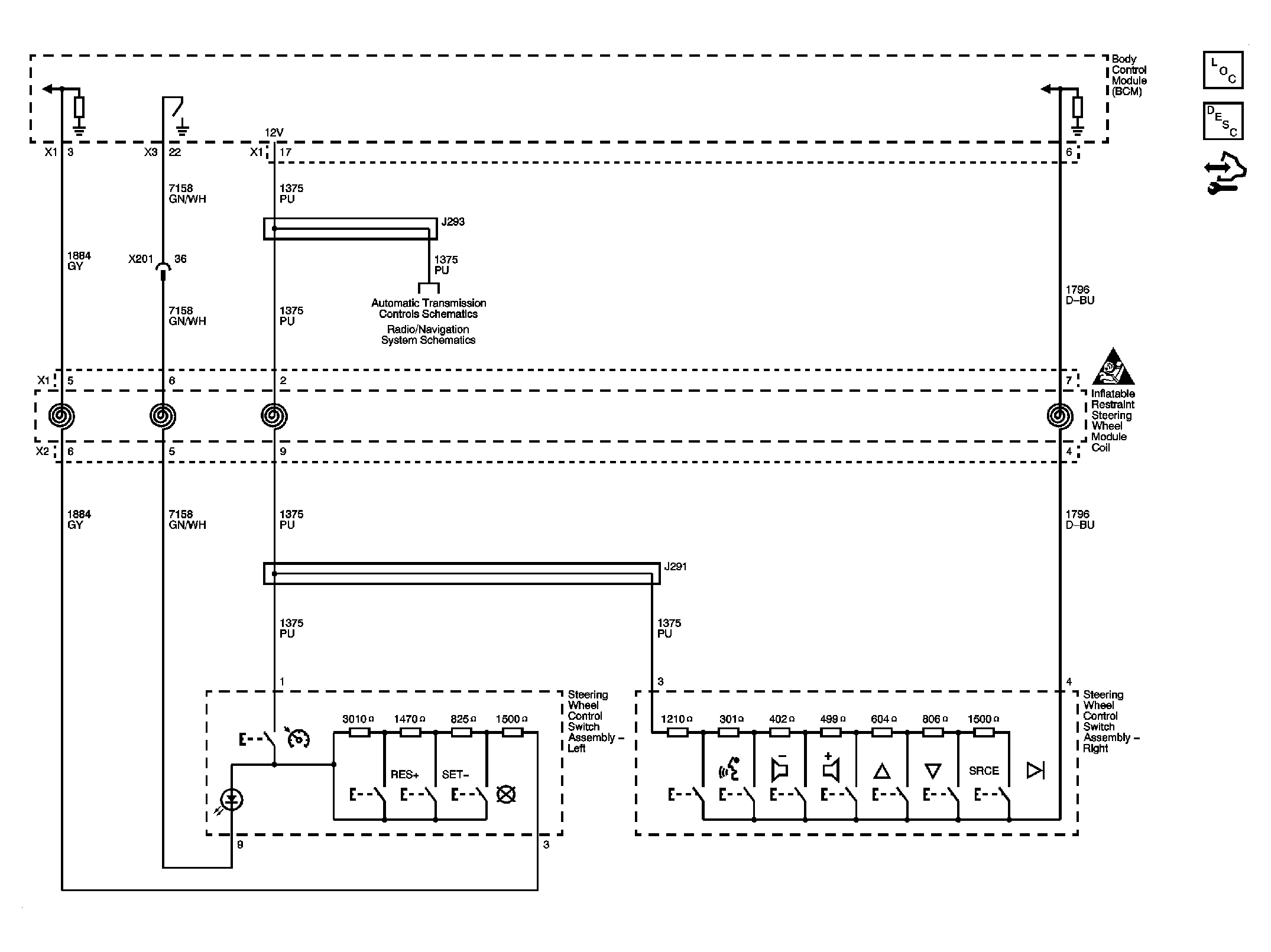

Fig 1: UK3
Courtesy of GENERAL MOTORS CORP.
Courtesy of GENERAL MOTORS CORP.
