Power Moding Schematics

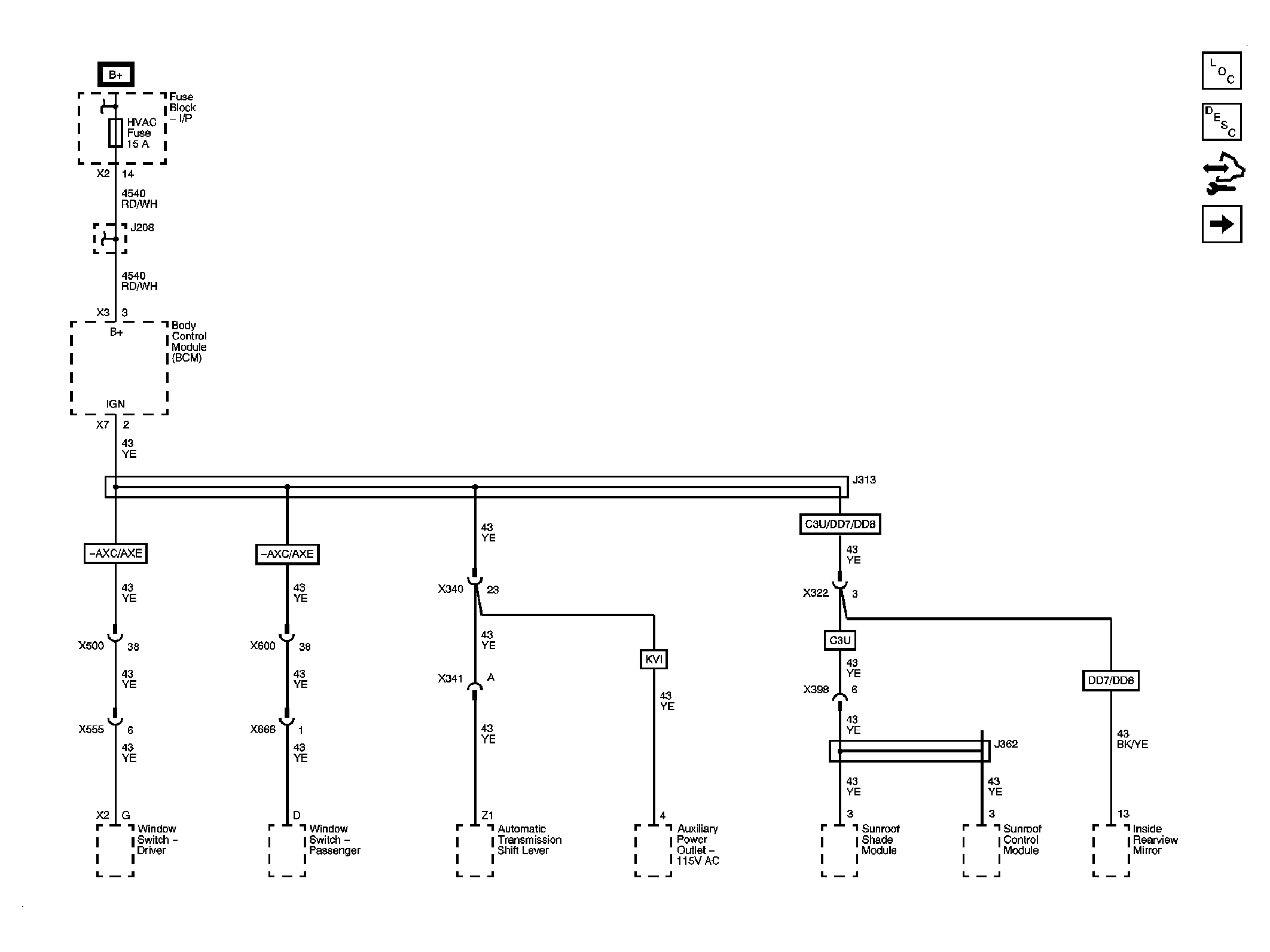

Fig 1: IGN I/II
GM1882112Courtesy of GENERAL MOTORS CORP.
Fig 2: IGN II/III
GM1882113Courtesy of GENERAL MOTORS CORP.
