Ignition Lock Cylinder Control Actuator

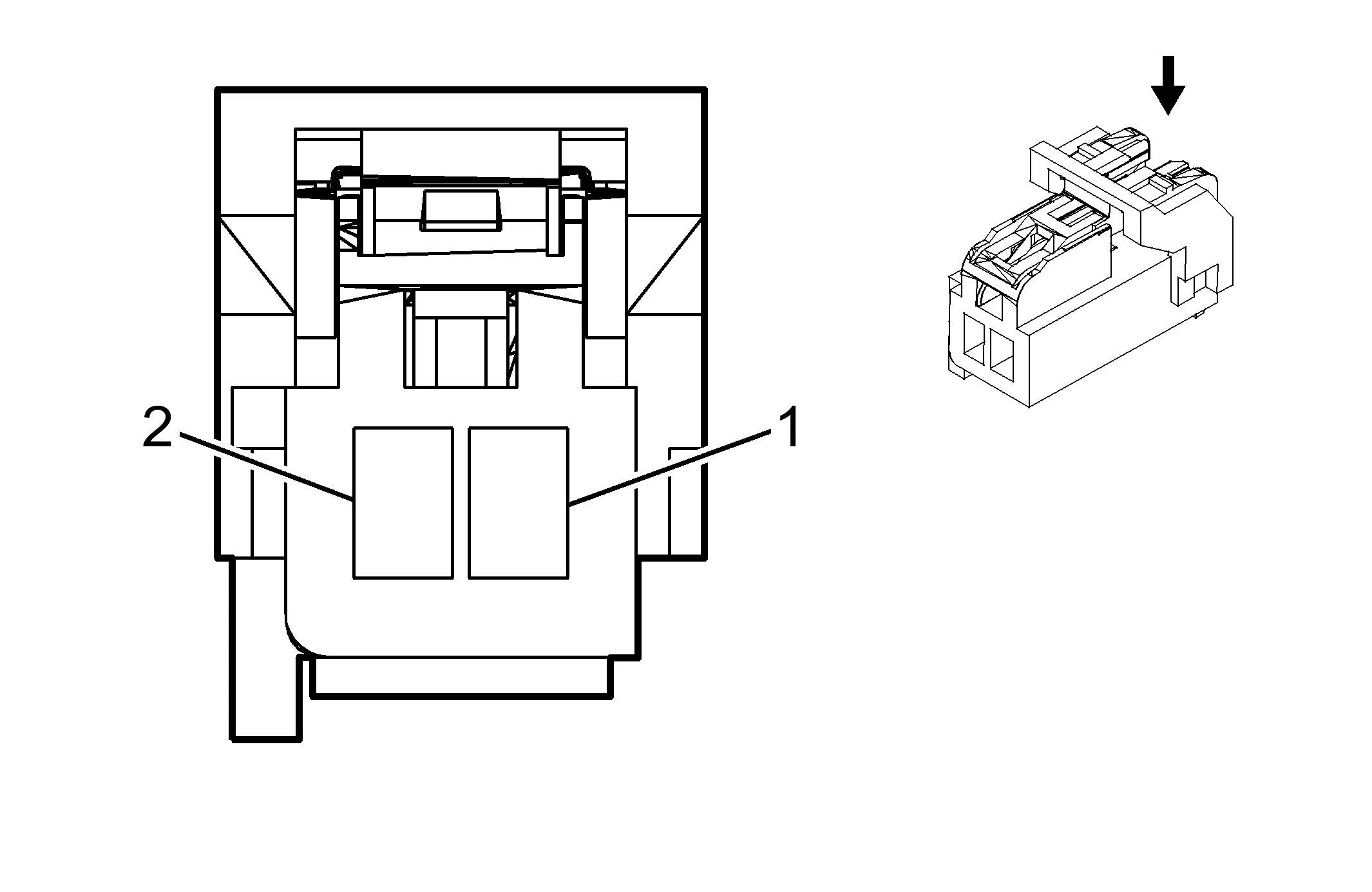

Fig 1: Ignition Lock Cylinder Control Actuator Connector End View
GM1856797Courtesy of GENERAL MOTORS CORP.
Ignition Lock Cylinder Control Actuator

Pin Wire Circuit Function
1 0.35 BK 1450 Ground
2 0.35 PU/WH 1630 Steering Column Key Cylinder Lock Solenoid Control
Connector Part Information
  • OEM: 7283725830
  • Service: See Catalog
  • Description: 2-Way F GT 150 Unsealed (BK)
Terminal Part Information
  • Terminal/Tray: 12191812/19
  • Core/Insulation Crimp: E/C
  • Release Tool/Test Probe: 15315247/J-35616-2A (GY)
