Passenger Compartment/Roof Component Views

Fig 1: View Of Driver Seat (Except A45)

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Seat Lumbar Vertical Motor - Driver (AH5)
2	Inflatable Restraint Side Impact Module - Left
3	Seat Recline Motor - Driver (AH5)
4	Seat Lumbar Horizontal Motor - Driver (AH5)
5	Seat Horizontal Motor - Driver (AG1/AH5)
6	Seat Lumbar Switch - Driver (AH5)
7	Seat Adjuster Switch - Driver (AG1/AH5)
8	Seat Rear Vertical Motor - Driver (AG1/AH5)
9	Heated Seat Control Module - Driver (KA1)/Memory Seat Module (AG3)
10	Seat Front Vertical Motor - Driver (AG1/AH5)
11	Seat Belt Switch - Driver
12	Heated Seat Element - Driver Cushion (KA1)
13	Heated Seat Element - Driver Back (KA1)

Fig 2: View Of Driver Seat (AG3)

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Seat Horizontal Position Sensor
2	Seat Lumbar Vertical Motor - Driver
3	Inflatable Restraint Side Impact Module - Left
4	Seat Lumbar Horizontal Motor - Driver
5	Seat Recline Motor - Driver
6	Seat Recline Position Sensor - Driver
7	Seat Lumbar Switch - Driver
8	Seat Horizontal Motor - Driver
9	Seat Adjuster Switch - Driver
10	Inflatable Restraint Seat Position Sensor (SPS) - Driver (W49)
11	Seat Rear Vertical Motor - Driver
12	Seat Rear Vertical Position Sensor
13	Seat Front Vertical Position Sensor
14	Memory Seat Module
15	Seat Front Vertical Motor - Driver
16	Seat Belt Switch - Driver

Fig 3: Identifying Passenger Seat Components

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Inflatable Restraint Side Impact Module - Right
2	Heated Seat Element - Passenger Back (KA1)
3	Seat Recline Motor - Passenger (AAQ)
4	Seat Lumbar Horizontal Motor - Passenger (AAQ)
5	Seat Lumbar Vertical Motor - Passenger (AAQ)
6	Seat Horizontal Motor - Passenger
7	Inflatable Restraint Seat Position Sensor (SPS) - Passenger (W49)
8	Seat Belt Switch - Passenger
9	Inflatable Restraint Front Passenger Presence System (PPS) Sensor
10	Passenger Presence System (PPS) Module (Part of PPS Sensor)
11	Seat Adjuster Switch - Passenger
12	Seat Lumbar Switch - Passenger
13	Heated Seat Element - Passenger Back

Fig 4: Identifying Passenger Seat And Components

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Passenger Seat
2	Battery Current Sensor
3	Battery
4	G304
5	Inflatable Restraint Sensing and Diagnostic Module (SDM)
6	Inflatable Restraint Vehicle Rollover Sensor
7	Yaw Rate and Lateral Acceleration Sensor

Fig 5: Identifying Headliner Components

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Cargo Lamp
2	Courtesy/Reading Lamp - Rear
3	Infrared Module (U42+C3U)
4	Courtesy/Reading Lamp - Center (U42+C3U)
5	Digital Video Disc (DVD) Display (U42+C3U)
6	Cellular Microphone (UE1)
7	Courtesy/Reading Lamp - Front
8	Console Flood Lamp
9	Garage Door Opener (UG1)
10	Vanity Mirror Lamp - Right (DH6)
11	Inside Rearview Mirror
12	Vanity Mirror Lamp - Left (DH6)
13	Digital Video Disc (DVD) Display (U42-C3U)
14	Courtesy/Reading Lamp - Center (-C3U)
15	Infrared Module (U42-C3U)
16	Rear Parking Assist (RPA) Display (UD7)
17	Remote Control Door Lock Receiver (RCDLR)

Fig 6: View Of Overhead Console Components (C3U)

Courtesy of GENERAL MOTORS CORP.

Fig 7: View Of Roof Rail Air Bags

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Inflatable Restraint Roof Rail Module - Passenger
2	Inflatable Restraint Roof Rail Module - Driver
3	Floor Panel
4	Windshield

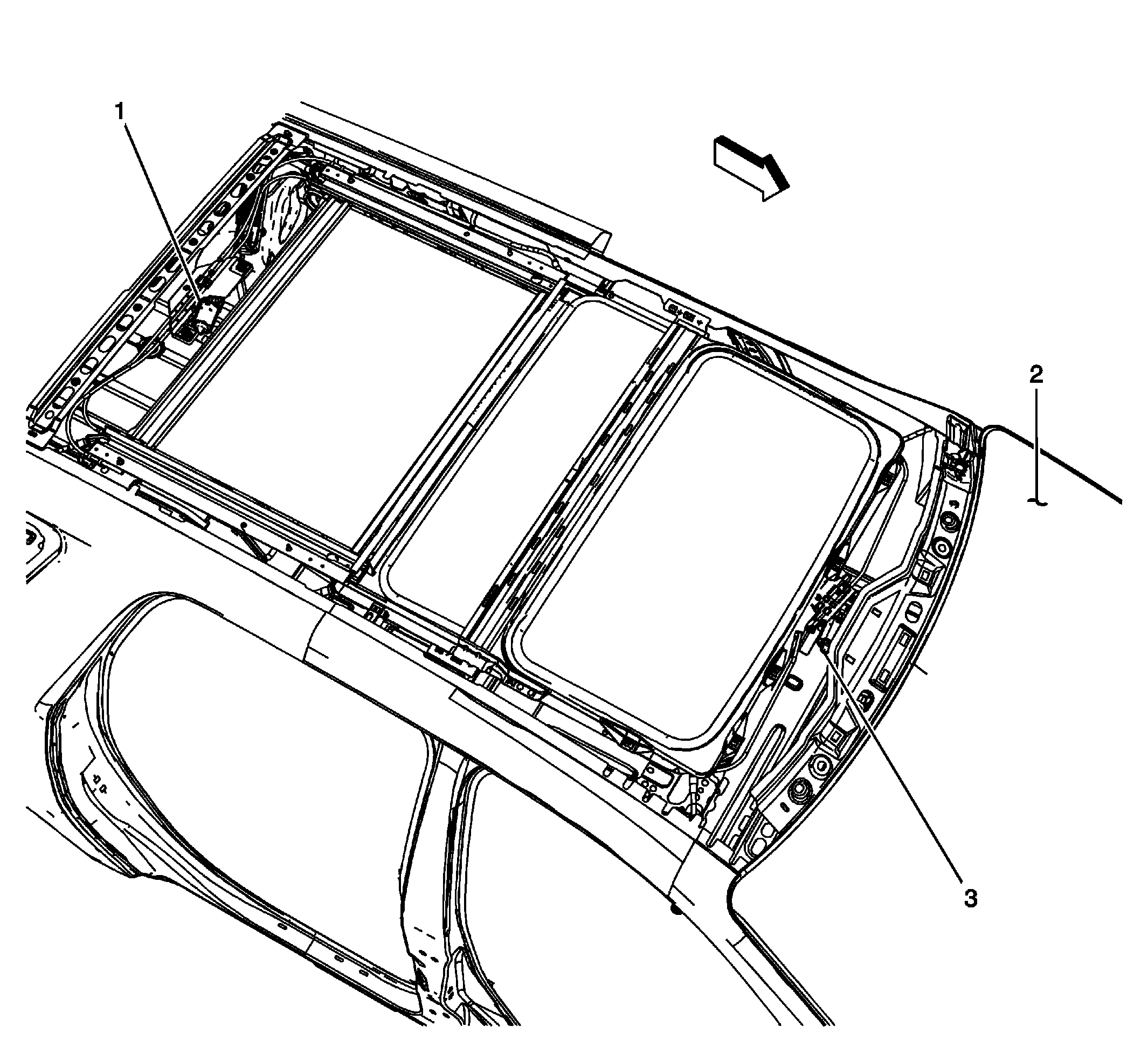

Fig 8: Identifying Sunroof Modules

Courtesy of GENERAL MOTORS CORP.
