Antilock Brake System Schematics

Fig 1: Module Power and Ground, Subsystem References

Courtesy of GENERAL MOTORS CORP.

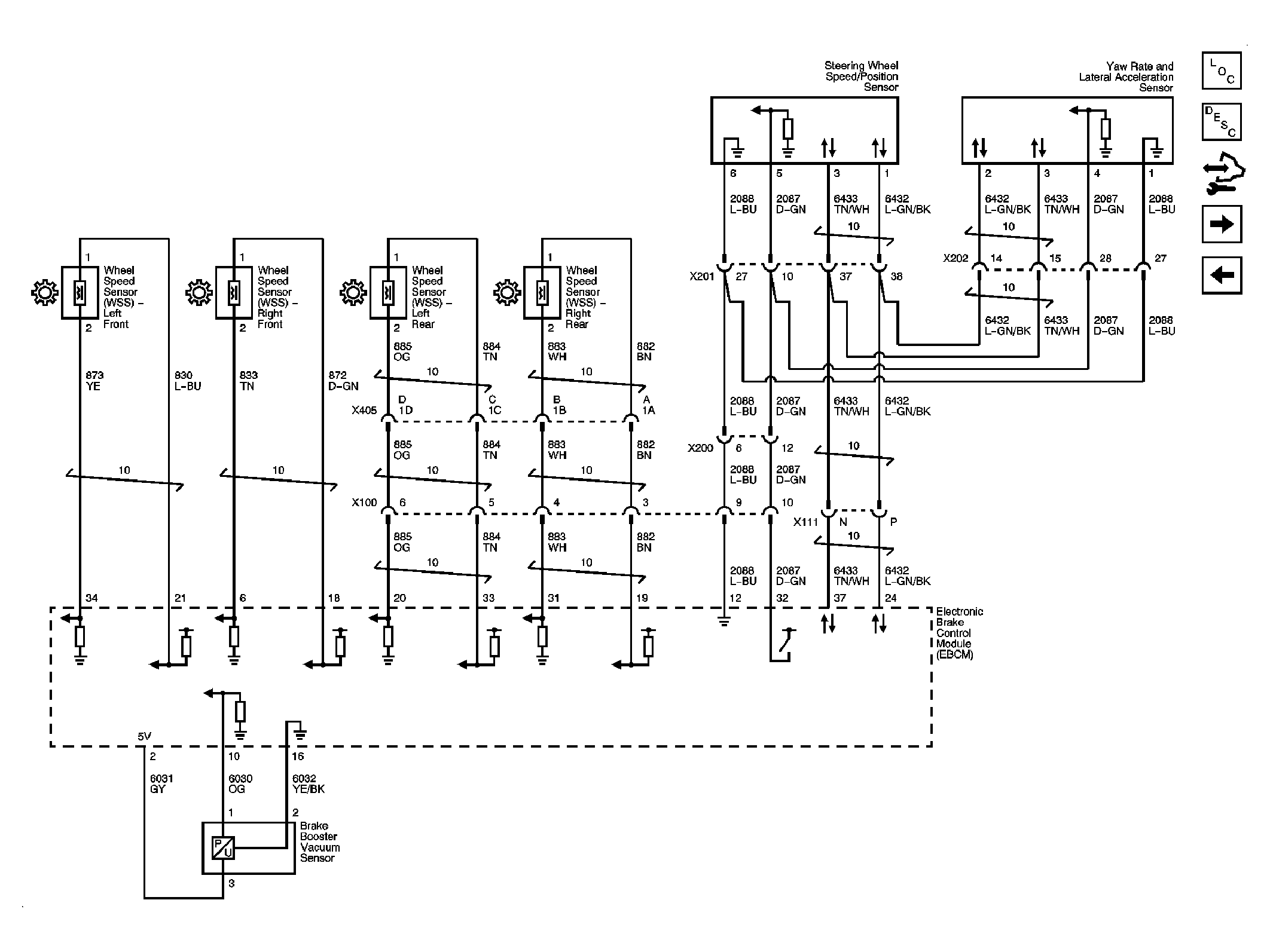

Fig 2: Sensors

Courtesy of GENERAL MOTORS CORP.

Fig 3: TCS Control and Indicators

Courtesy of GENERAL MOTORS CORP.
