Body Control System Schematics
Body Control System Schematics

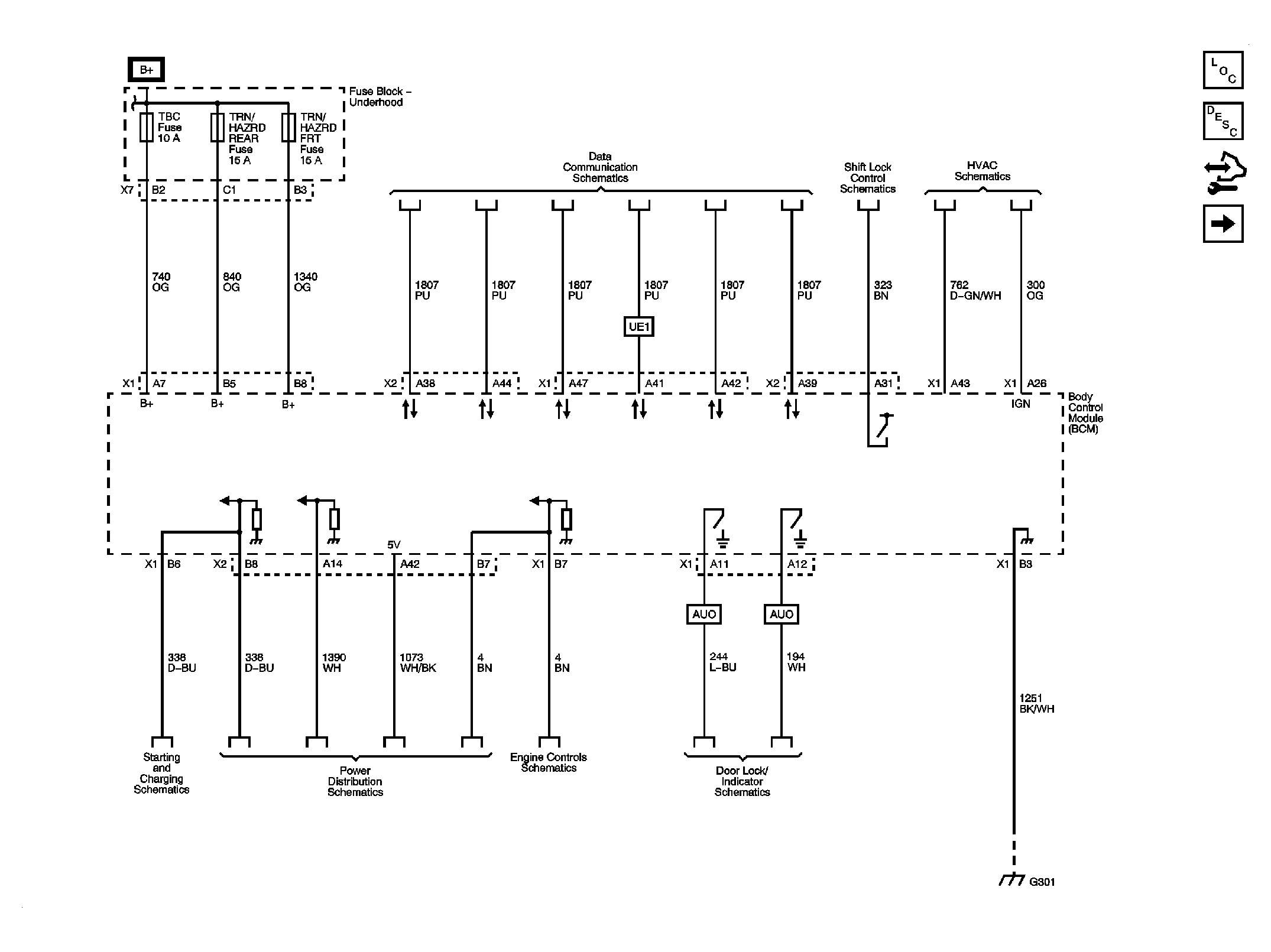

Fig 1: Power, Ground, Serial Data, and Controlled/Monitored Subsystem References
Courtesy of GENERAL MOTORS CORP.

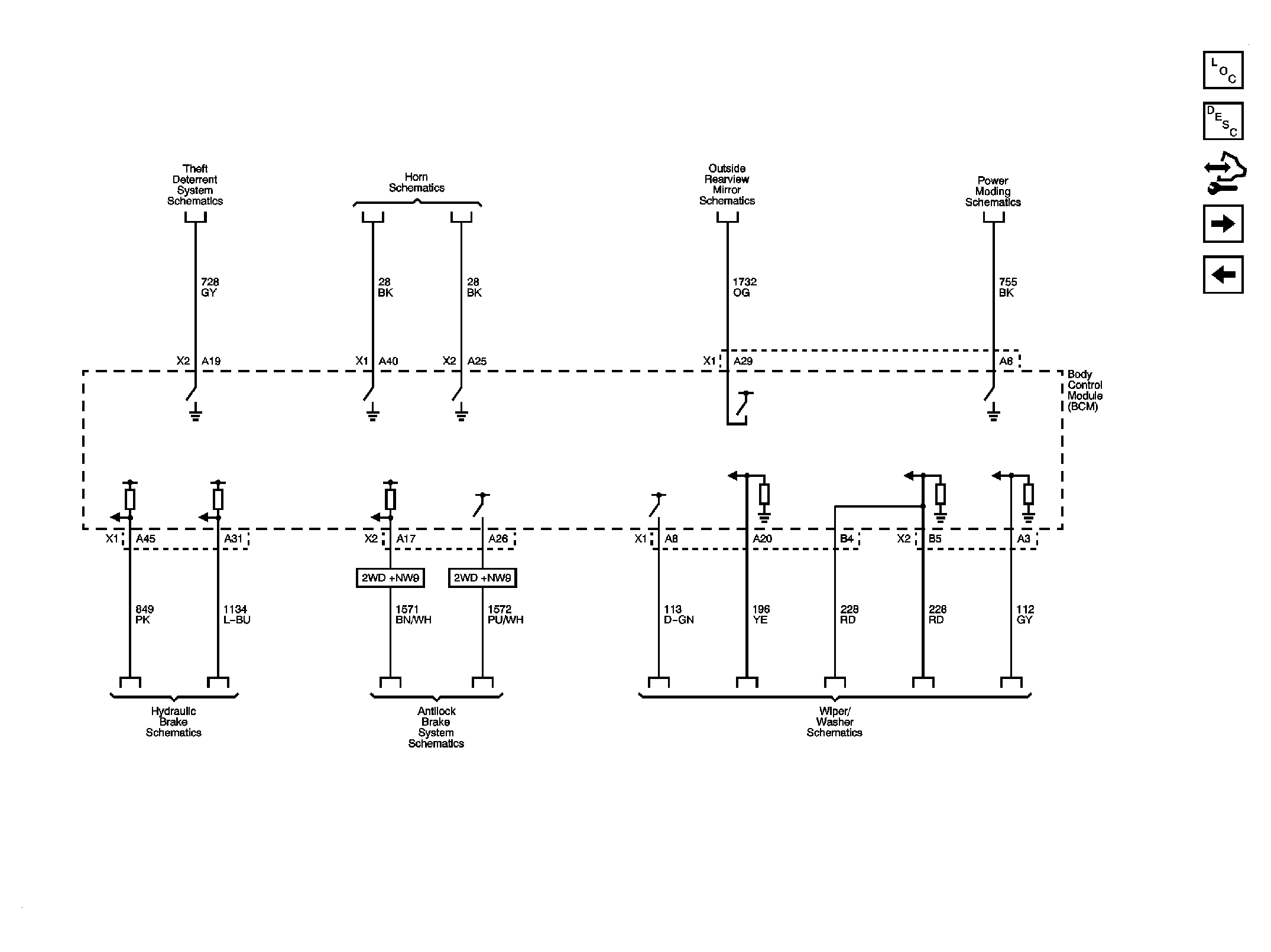

Fig 2: Theft, Horn, Mirror, Power Moding, Brake and Wiper/Washer System References
Courtesy of GENERAL MOTORS CORP.

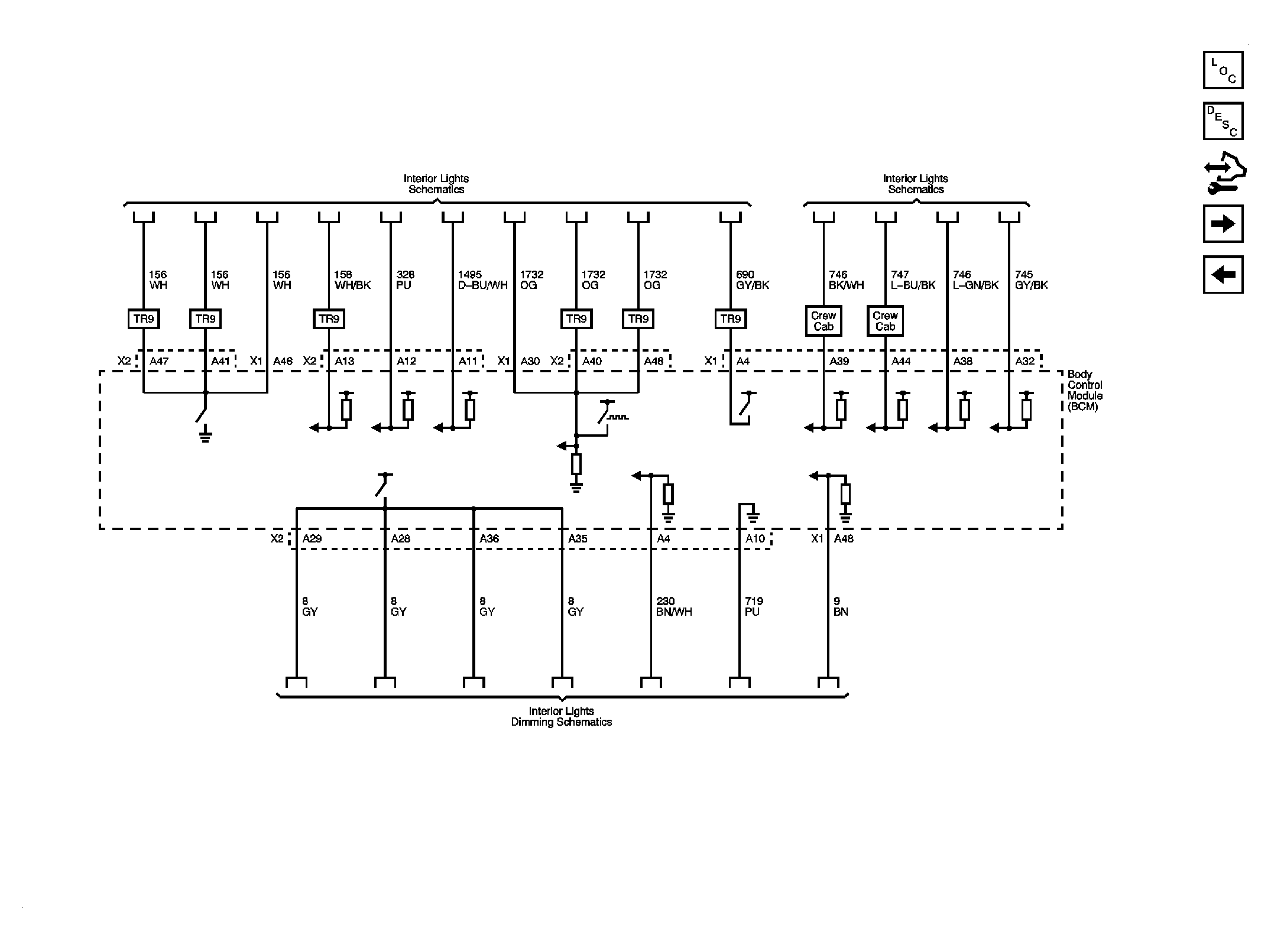

Fig 3: Interior Lights and Interior Lights Dimming References
Courtesy of GENERAL MOTORS CORP.

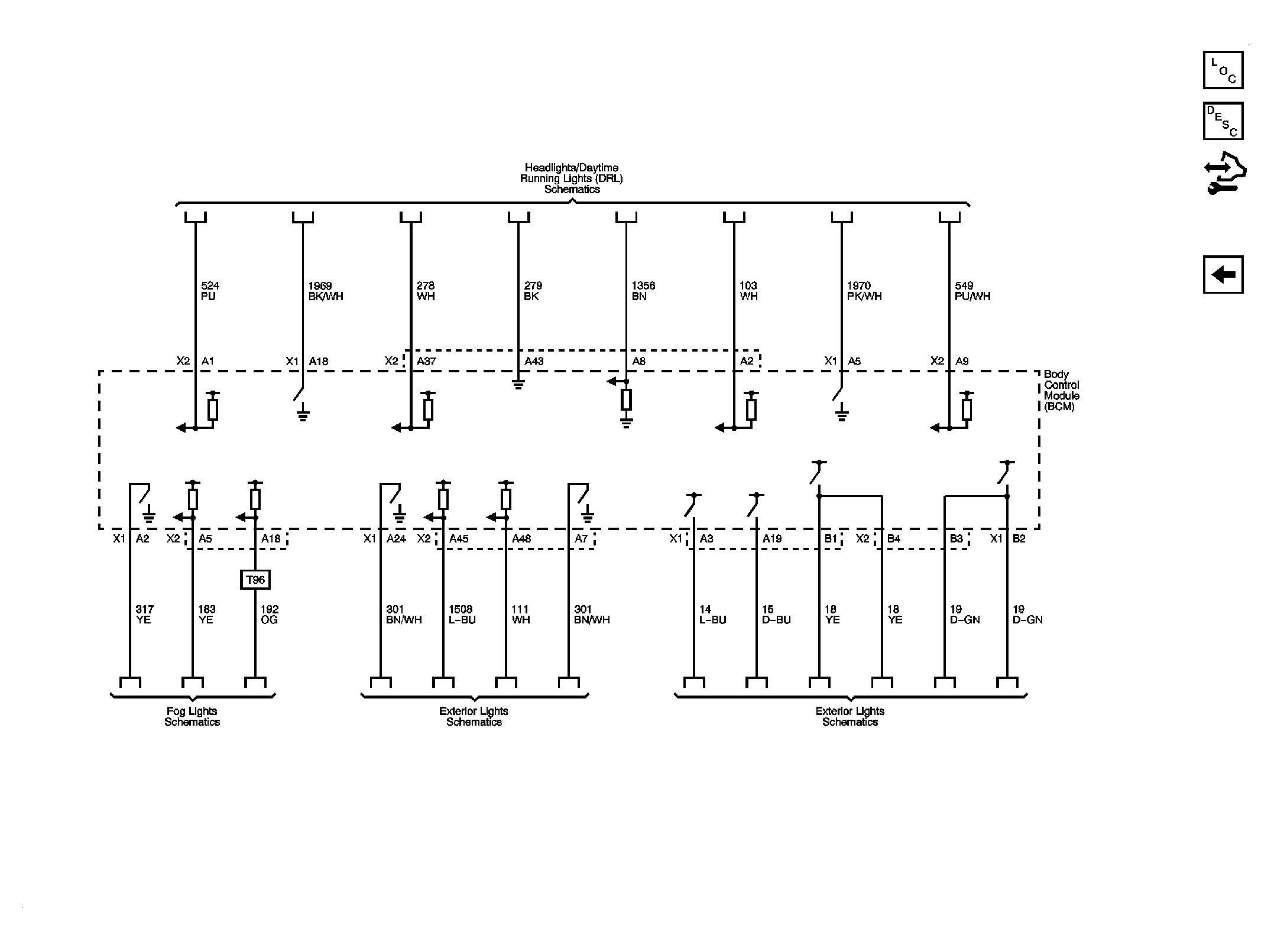

Fig 4: Exterior Lighting References
Courtesy of GENERAL MOTORS CORP.
