Data Communication Schematics

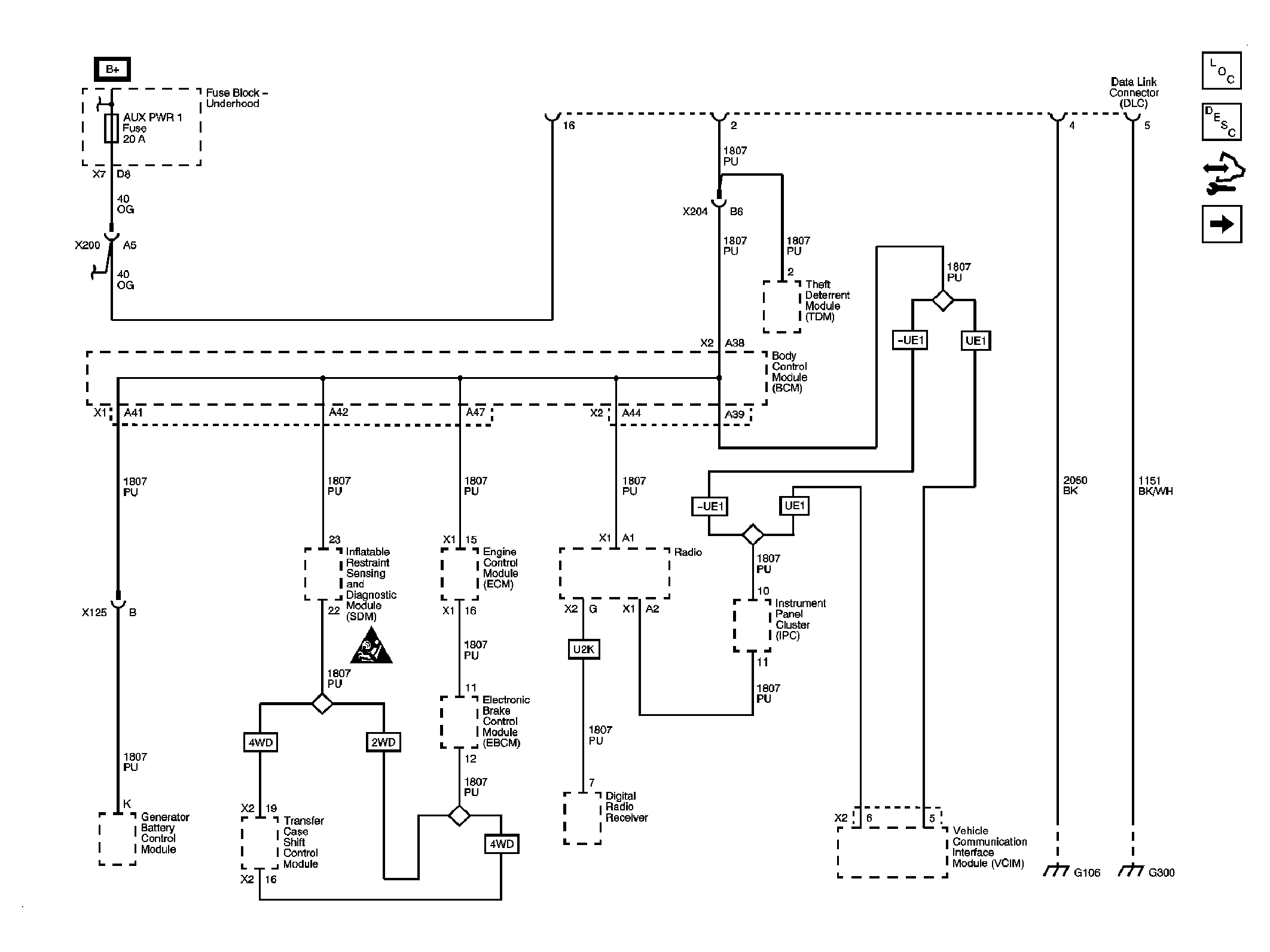

Fig 1: Class 2 Serial Data

GM2082785

Courtesy of GENERAL MOTORS CORP.

Fig 2: High Speed GMLAN Serial Data

GM2082788

Courtesy of GENERAL MOTORS CORP.
