Body Control System Schematics

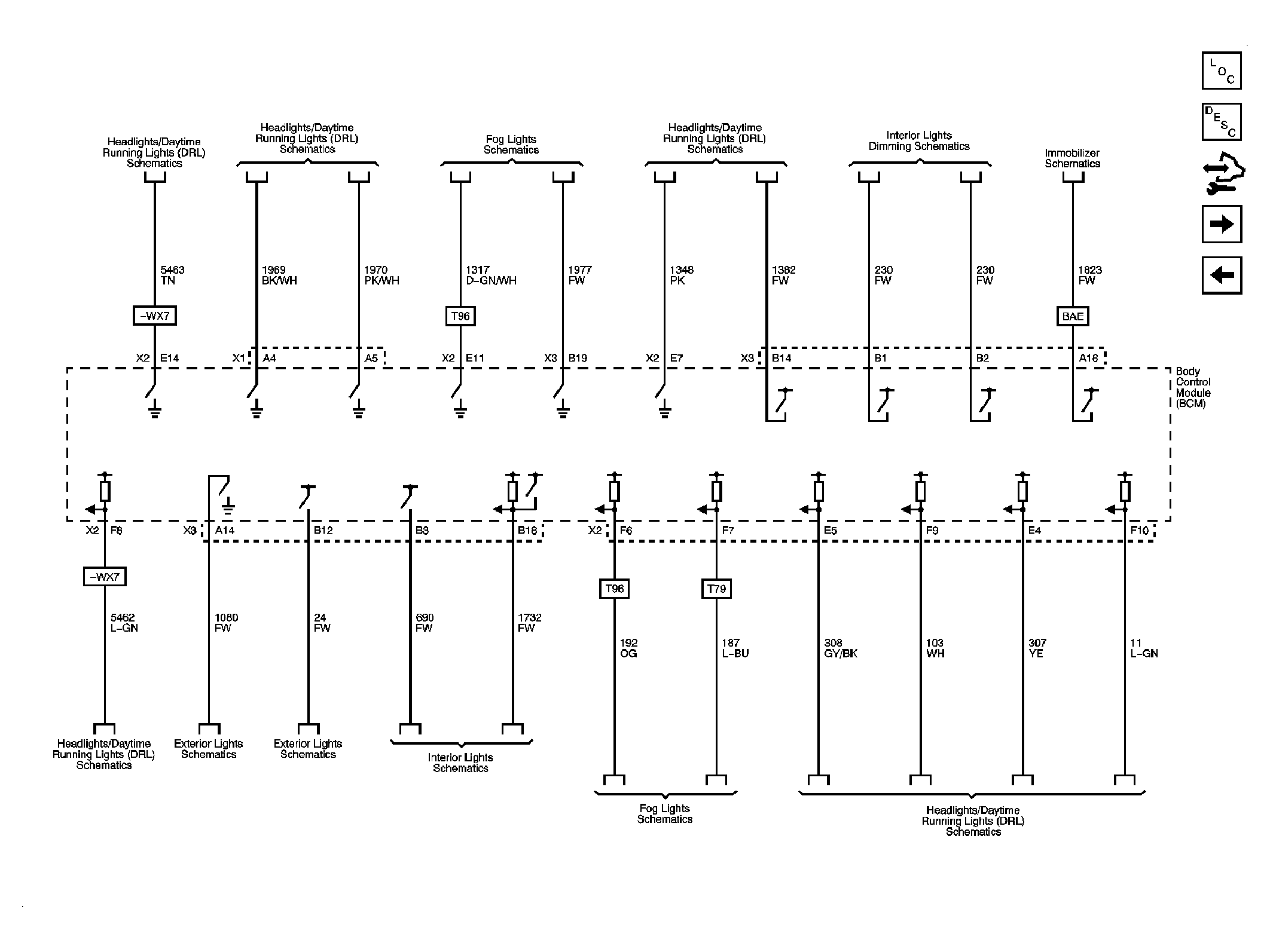

Fig 1: BCM Module Power, Ground, and Controlled/Monitored Subsystem References - 1 of 4

Courtesy of GENERAL MOTORS CORP.

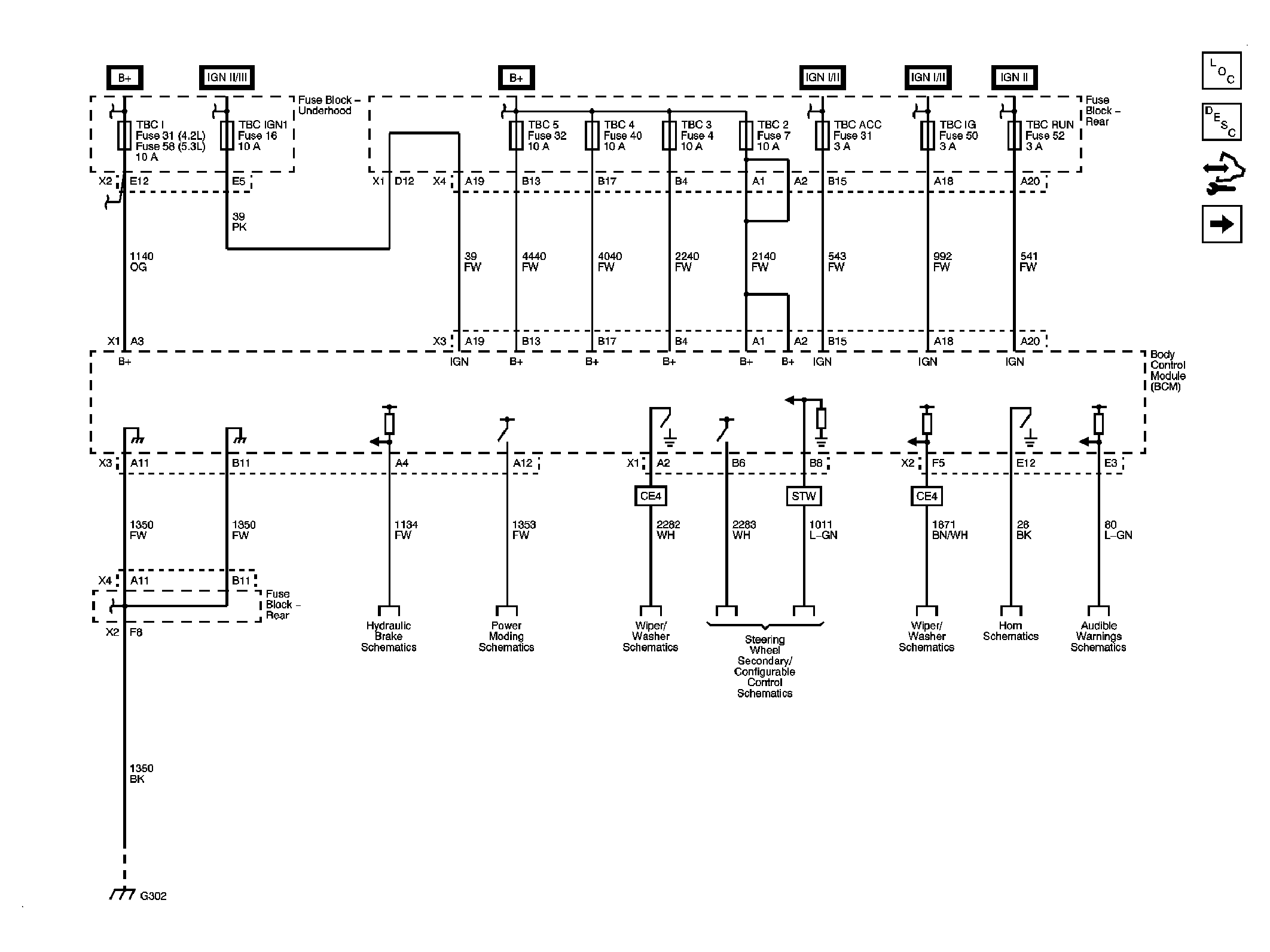

Fig 2: BCM Controlled/Monitored Subsystem References - 2 of 4

Courtesy of GENERAL MOTORS CORP.

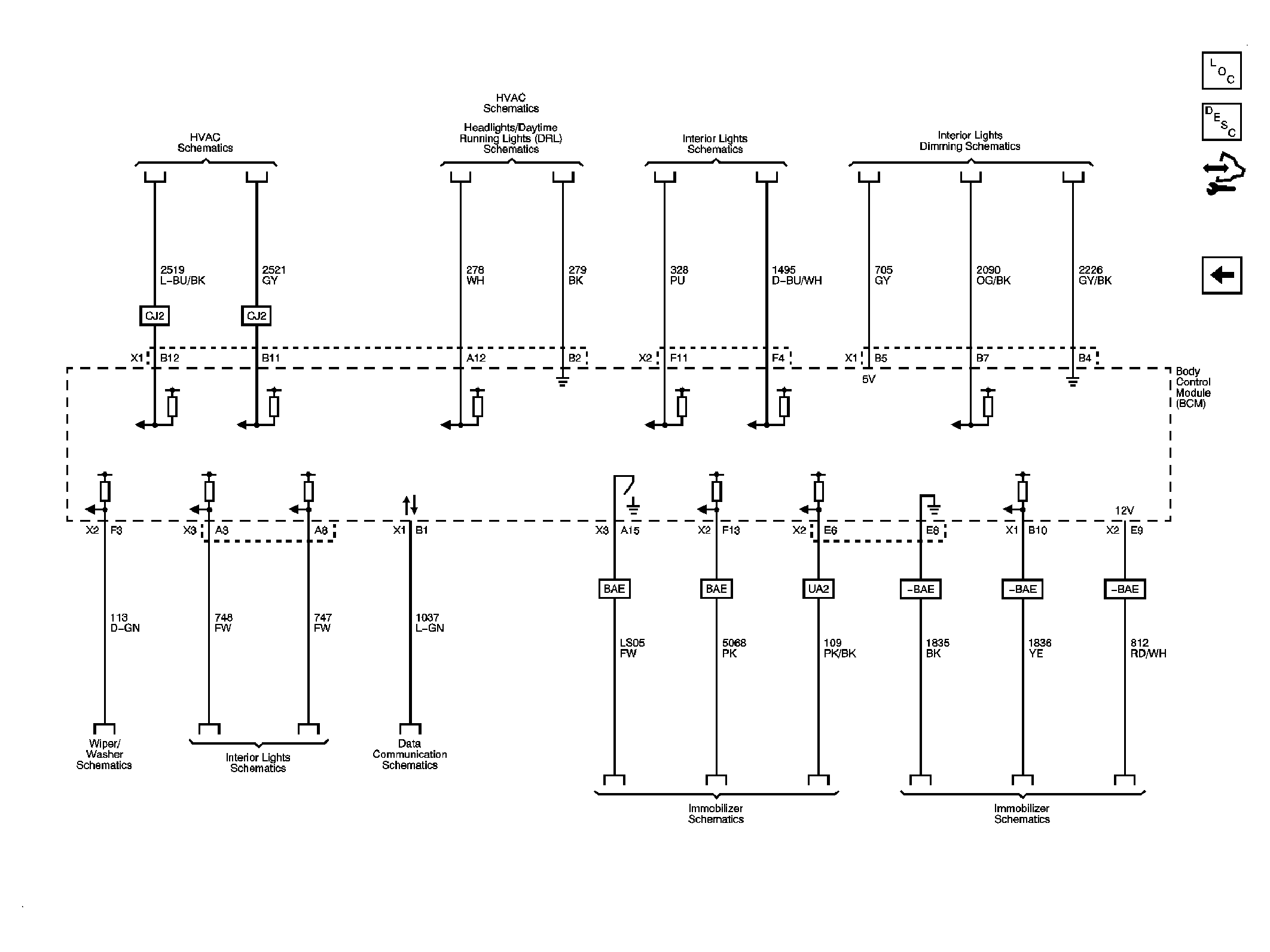

Fig 3: BCM Controlled/Monitored Subsystem References - 3 of 4

Courtesy of GENERAL MOTORS CORP.

Fig 4: BCM Controlled/Monitored Subsystem References - 4 of 4

Courtesy of GENERAL MOTORS CORP.

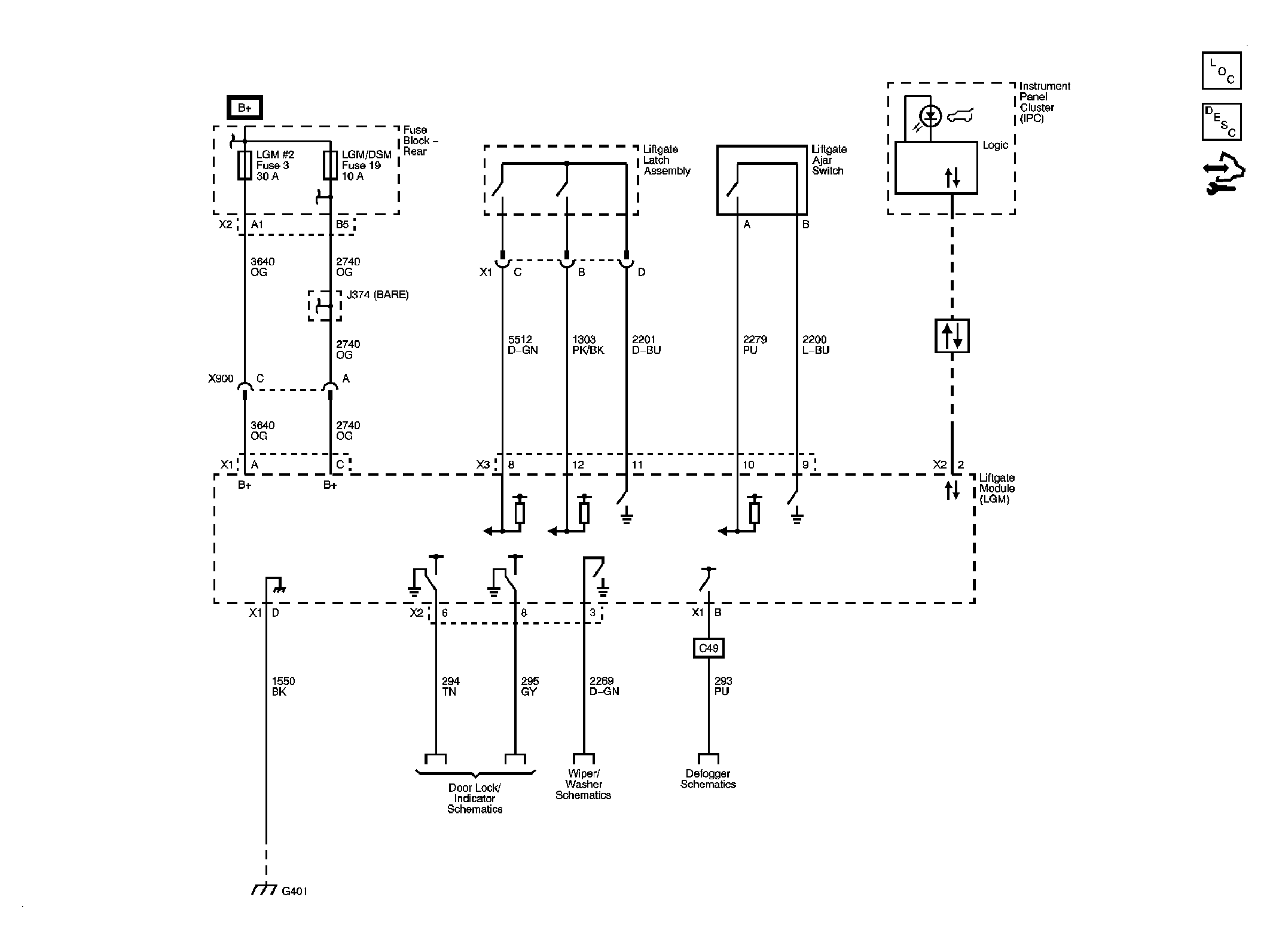

Fig 5: Liftgate Module

Courtesy of GENERAL MOTORS CORP.
