Data Communication Schematics
Data Communication Schematics
Fig 1: Power, Ground, and Data Link Connector
Courtesy of GENERAL MOTORS CORP.

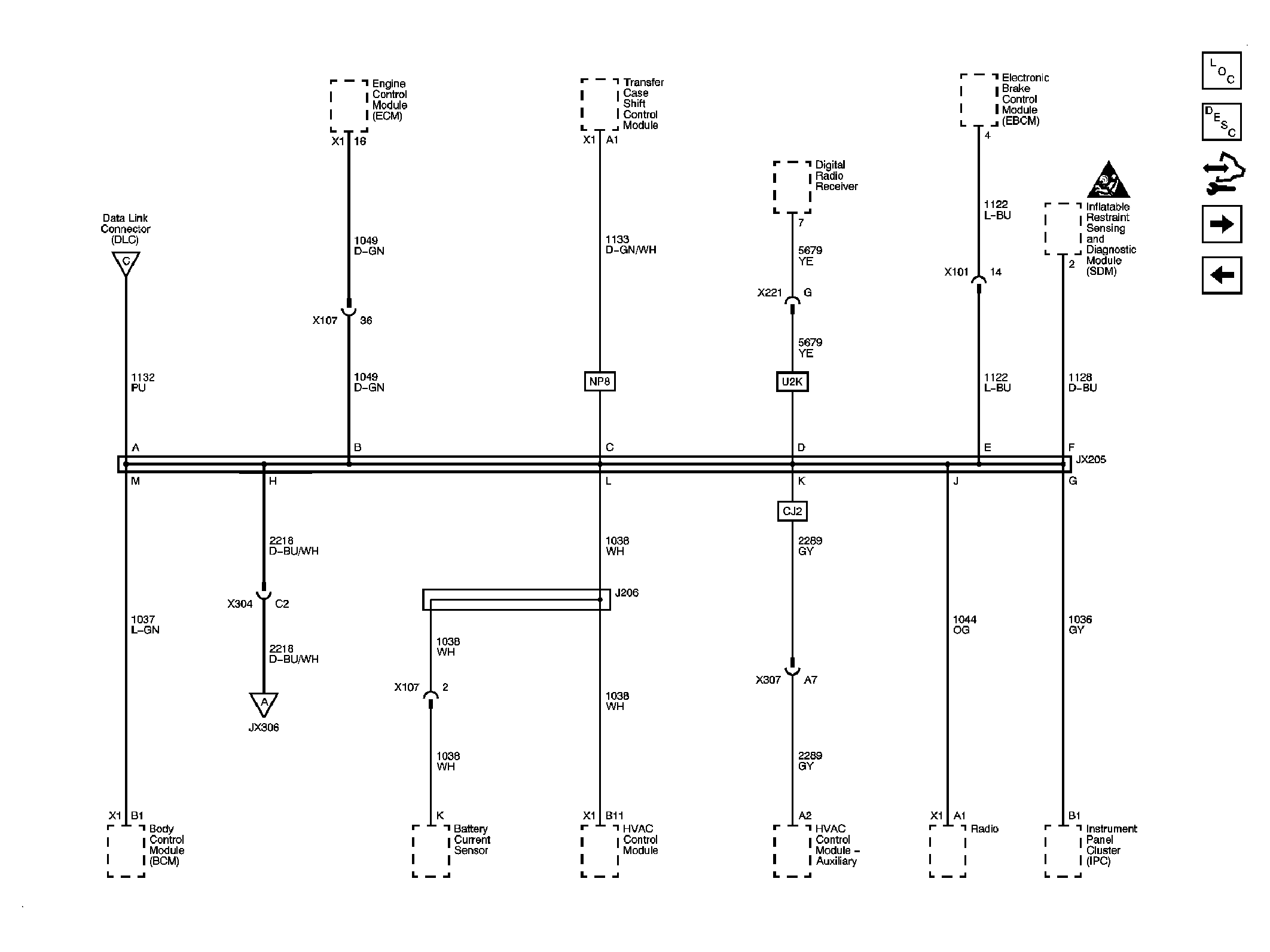

Fig 2: SP205
Courtesy of GENERAL MOTORS CORP.
Fig 3: SP306
Courtesy of GENERAL MOTORS CORP.
Courtesy of GENERAL MOTORS CORP.
Courtesy of GENERAL MOTORS CORP.
Courtesy of GENERAL MOTORS CORP.
