Installation Procedure

    Fig 1: View Of Fuel Filler Hose
    GM1361727Courtesy of GENERAL MOTORS CORP.
  1. Uncap the fuel tank.
  2. Position the fuel fill hose to the fender.
    3. CAUTION: Refer to Fastener Caution .
  3. Install the fuel fill hose screws.

    Tighten:  Tighten the screws to 2 N.m (18 lb in).

    4. Fig 2: View Of Wiring Harness Electrical Connectors
    GM1766208Courtesy of GENERAL MOTORS CORP.
  4. Install the fuel fill hose to the fuel tank.
  5. Connect the fuel tank EVAP line (1) quick connect fitting to the fill tube vent line. Refer to Plastic Collar Quick Connect Fitting Service .
  6. Tighten the fuel fill hose clamp (2) at the fuel tank.

    Tighten:  Tighten the clamp to 2.5 N.m (22 lb in).

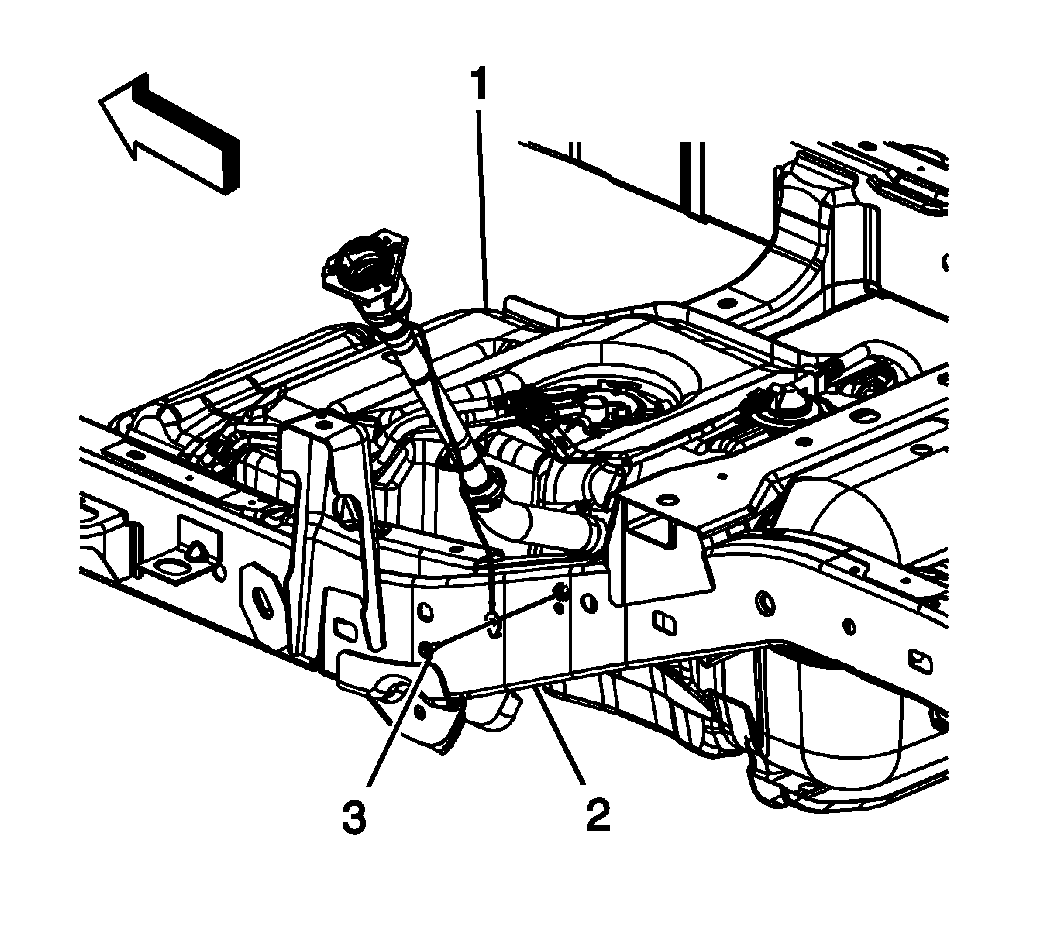

    7. Fig 3: Locating Fuel Filler Hose Ground Strap & Bolt
    GM1361728Courtesy of GENERAL MOTORS CORP.
  7. Install the ground strap to the frame. Ensure that the anti rotation tab is inserted into the hole in the frame.
  8. Install the fuel fill hose ground strap bolt.

    Tighten:  Tighten the bolt to 9 N.m (80 lb in).

  9. Install the left pickup box wheelhouse liner. Refer to Pickup Box Wheelhouse Panel Liner Replacement .
  10. Lower the vehicle.
  11. Refill the fuel tank.
  12. Install the fuel fill cap.
