Defogger Wiring Schematics: Defogger

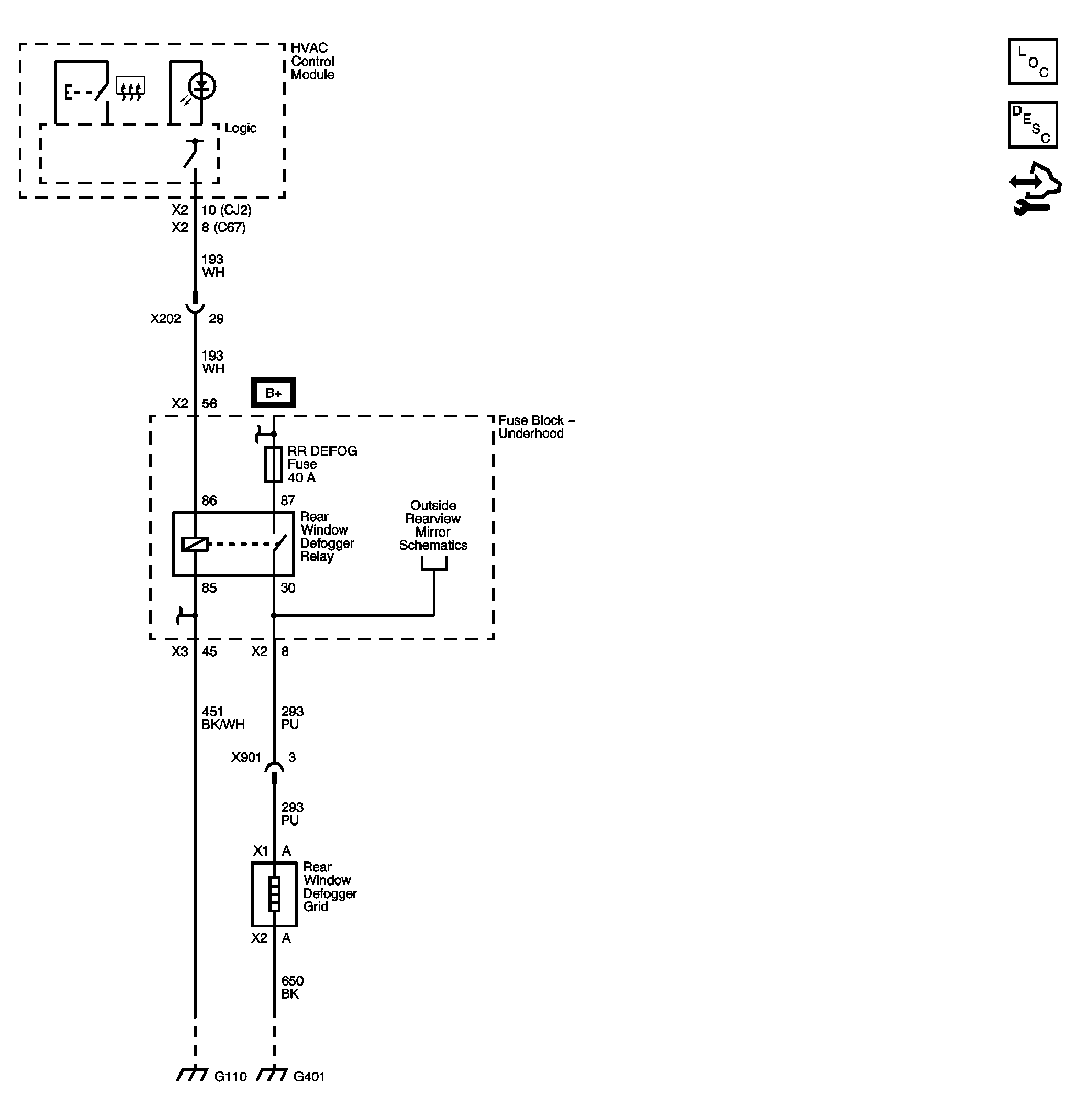

Fig 1: Defogger Wiring Schematic
GM2381502Courtesy of GENERAL MOTORS CORP.
