Fuel Temperature Sensor Replacement

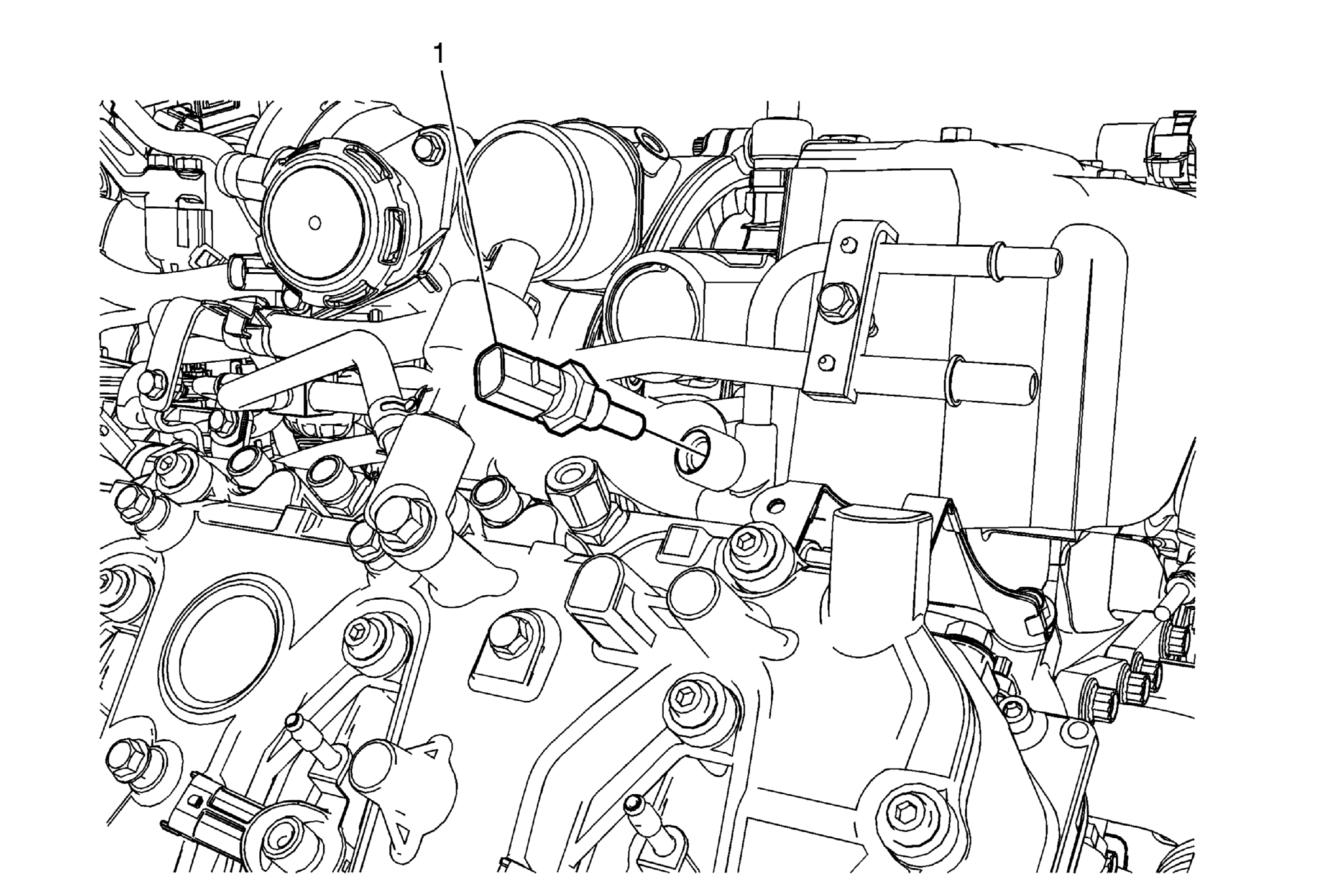

Fig 1: Identifying Fuel Temperature Sensor

Courtesy of GENERAL MOTORS COMPANY

Fuel Temperature Sensor Replacement

Callout	Component Name
Preliminary Procedure  Remove the engine cover. Refer to Engine Cover Replacement .
1	Fuel Temperature Sensor CAUTION: Refer to Fastener Caution . Procedure  Disconnect the electrical connector. Tighten  22 N.m (16 lb ft) 22 N.m (16 lb ft)
