GMC
›
2012
›
Terrain SLT, 3.0L Eng VIN 5, AWD
›
Repair and Diagnosis
›
Engine Performance
›
System
›
Data Communications System
›
Wiring Schematics
›
Body Control System Wiring Schematics
›
Module Power, Grounds And Subsystem References (1 of 4)
Module Power, Grounds And Subsystem References (1 of 4)

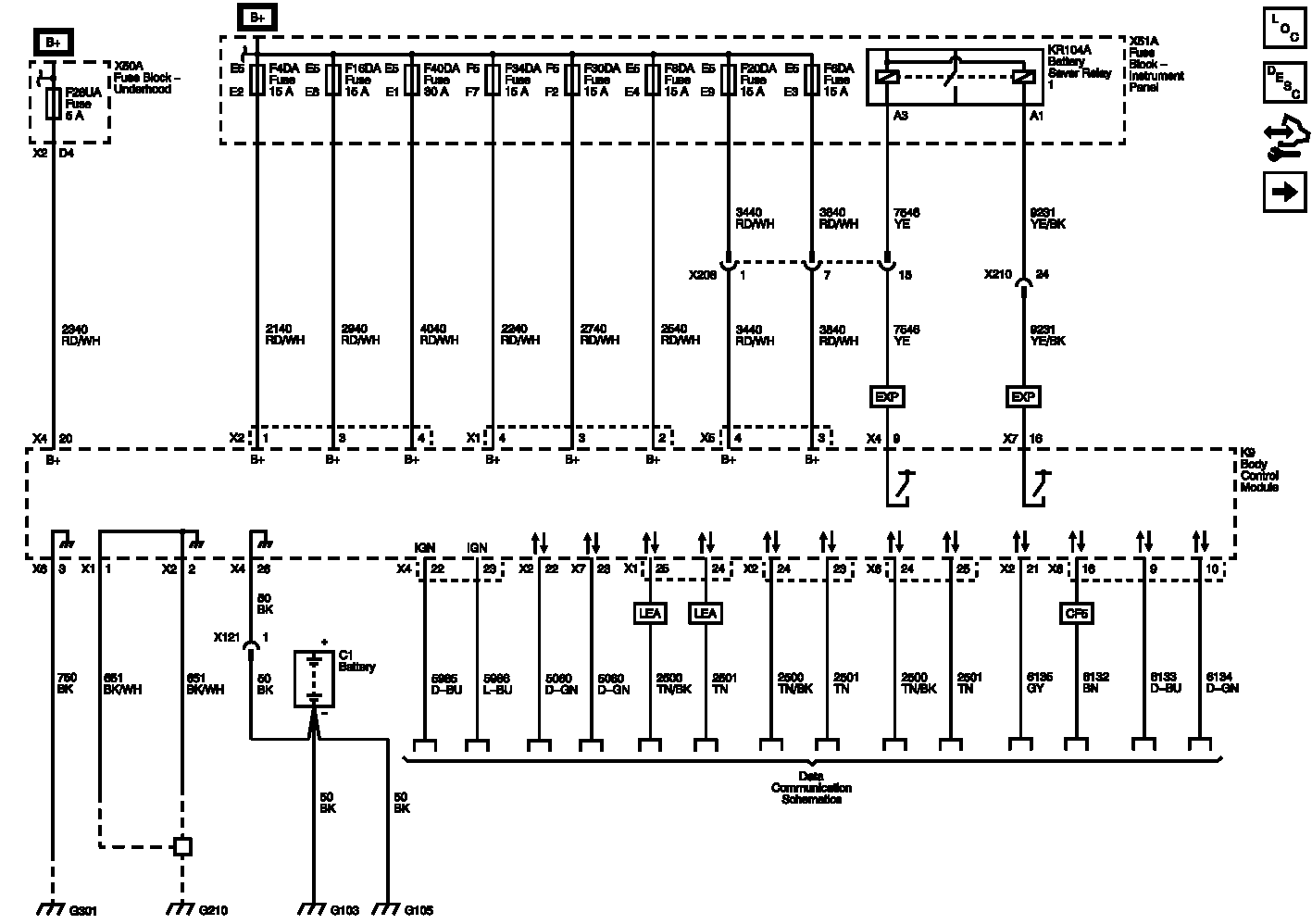

Fig 1: Module Power, Grounds And Subsystem References (1 Of 4) Wiring Schematic
