Body Control System Wiring Schematics
›
Exterior Light References Wiring Schematics
Exterior Light References Wiring Schematics

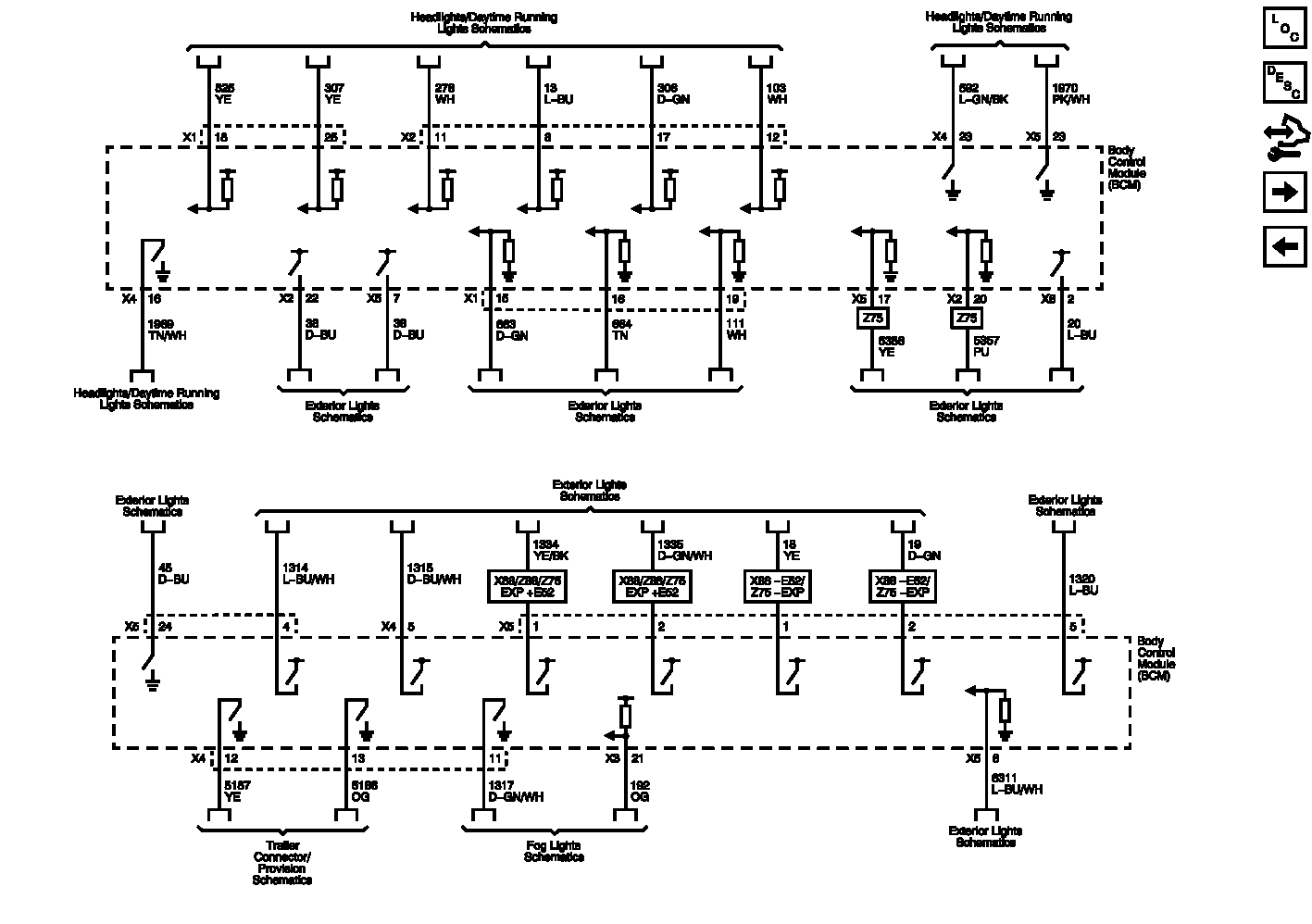

Fig 1: Exterior Light References Wiring Schematics
Courtesy of GENERAL MOTORS COMPANY
