Serial Data Communication Enable and Wake-up Circuits Wiring Schematics

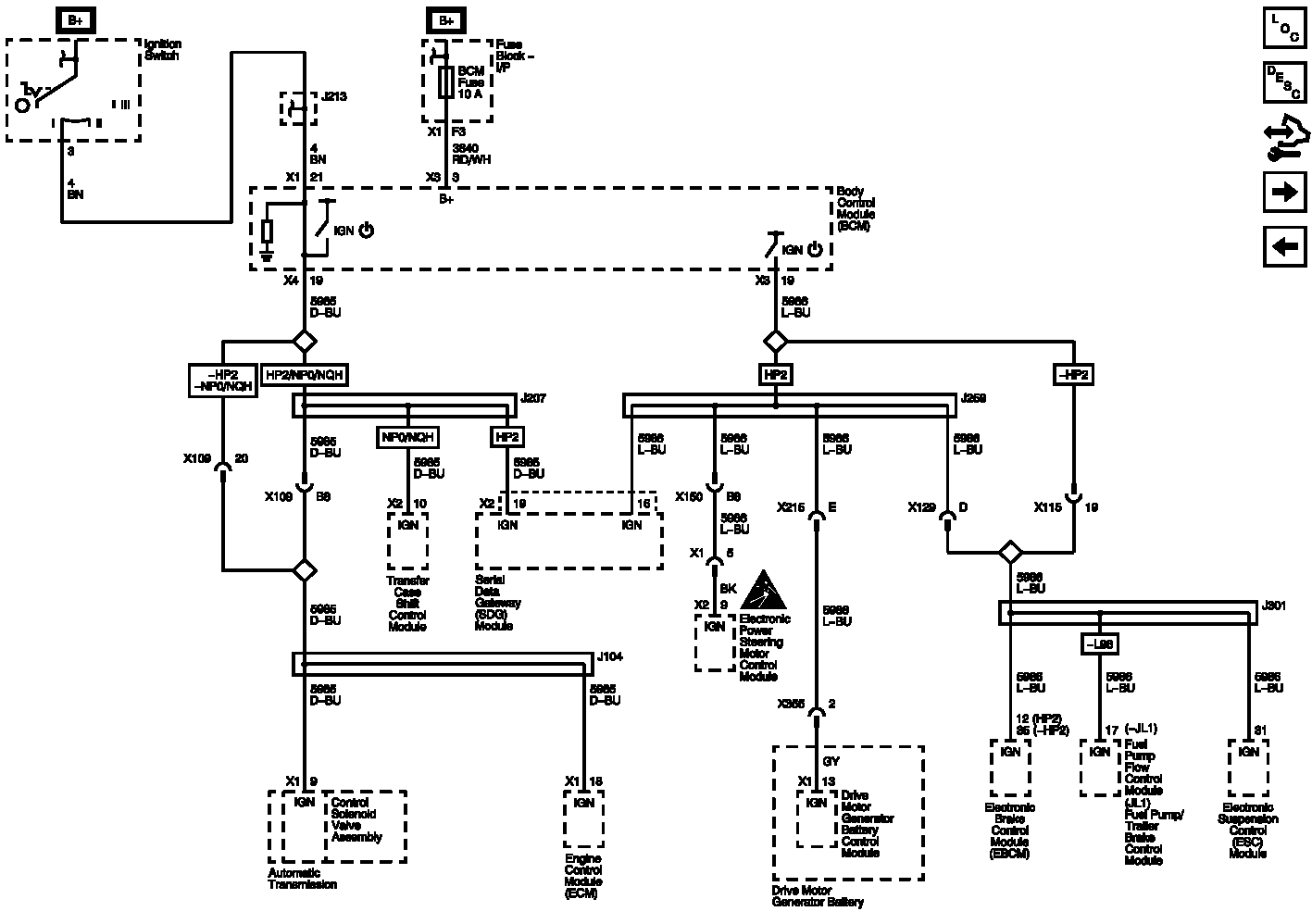

Fig 1: Serial Data Communication Enable and Wake-up Circuits Wiring Schematics
GM2635359Courtesy of GENERAL MOTORS COMPANY
