Air Cleaner Assembly Replacement

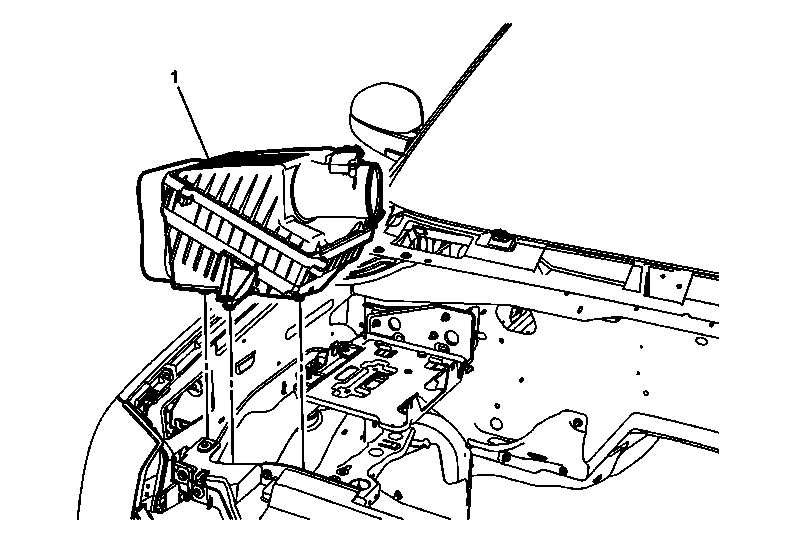

Fig 1: Air Cleaner Assembly

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedure Disconnect the air cleaner outlet duct from the air cleaner assembly. Refer to Air Cleaner Resonator Outlet Duct Replacement .
1	Air Cleaner Assembly Procedure Disengaged the air cleaner studs from the rubber grommets by pulling upwards. Transfer parts as necessary.

Callout

Component Name

Preliminary Procedure
Disconnect the air cleaner outlet duct from the air cleaner assembly. Refer to Air Cleaner Resonator Outlet Duct Replacement .

Air Cleaner Assembly

Procedure
